Special Features
Our Processes: Opticoat doors are made using the latest in automated door-coating technologies from Europe . The 16-phase process is fully automated from start to finish, to enable us to finely control each step of the process and ensure consistency from start to finish.
Styles: We have a door style for every home! All of our profiles are also customisable, so you can adjust them to suit your style.
Opticoat profiles are available in a large range of frame profiles and linear profiles – see the profiles tab for render images of each profile, and get in touch with us if you need a sample!
Edge Profiles: The edge profile plays into your overall design. In order to allow for endless options, you can choose from our edge profiles. Our most popular edge profile is 1.5mm radius – we would recommend this option for modern designs; however, if you’re after something more traditional, we’ve got you covered!
Check out page 10 of our Optidoor Brochure to see the edge profile options.
Please note: some edge profiles are not compatible with some door profiles due to physical limitations.
Door Thicknesses: The most common door thickness is 18mm; however, we also manufacture a lot of doors at 22mm. 22mm thick doors can be a great option to reduce bowing and give the door a little bit more support & space for your hinges.
Refer to page 12 in our Optidoor Brochure for more detailed information.
Many different factors can play into if a door would be likely to bow which are out of our control. We’re always happy to chat with you during the design process to help you choose the best option for your design! If you have any questions, please get in touch.
Door sizes: Our 18mm profiles are available up to 3100mm long. Our 22mm option is available up to 2775mm long.

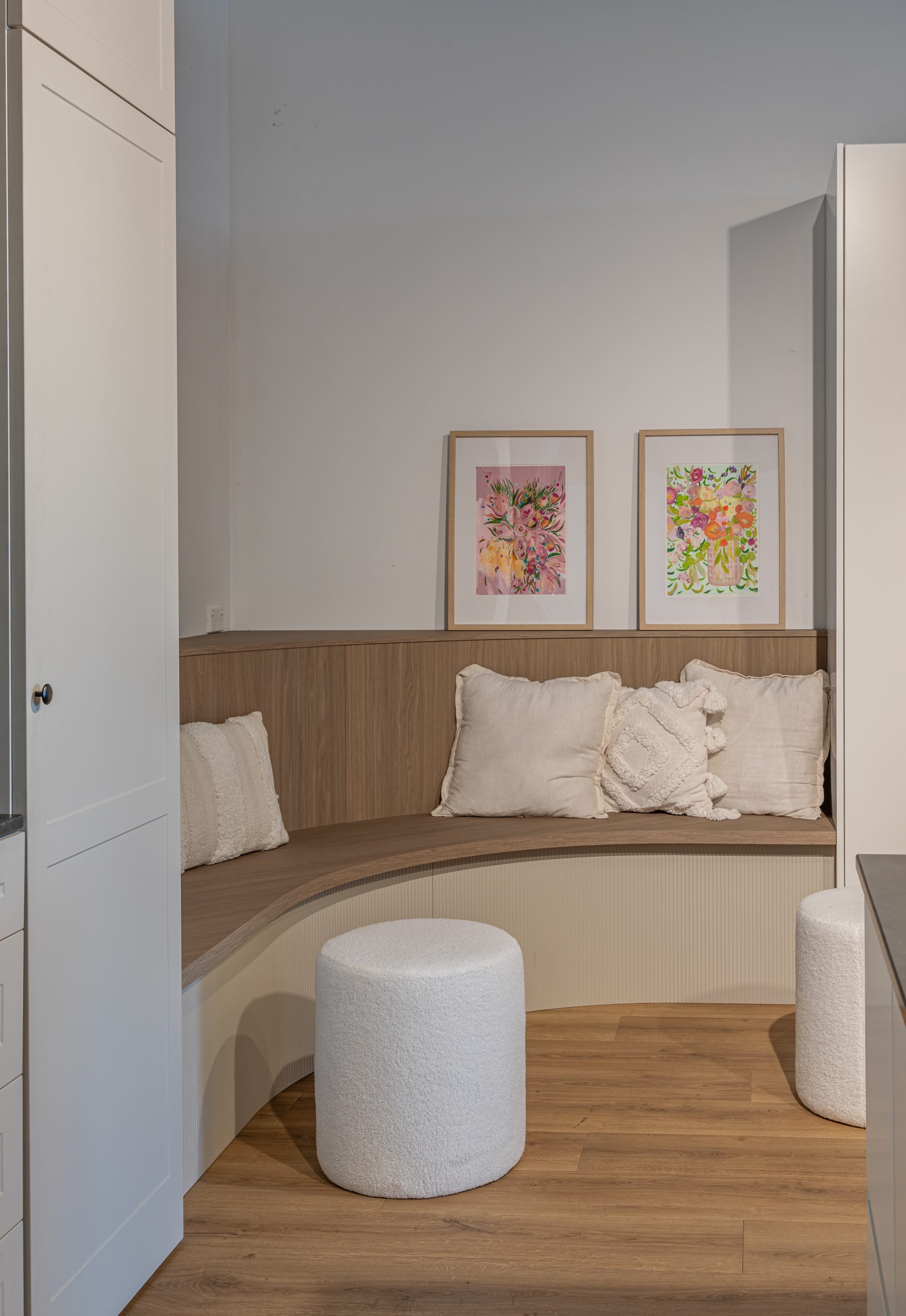

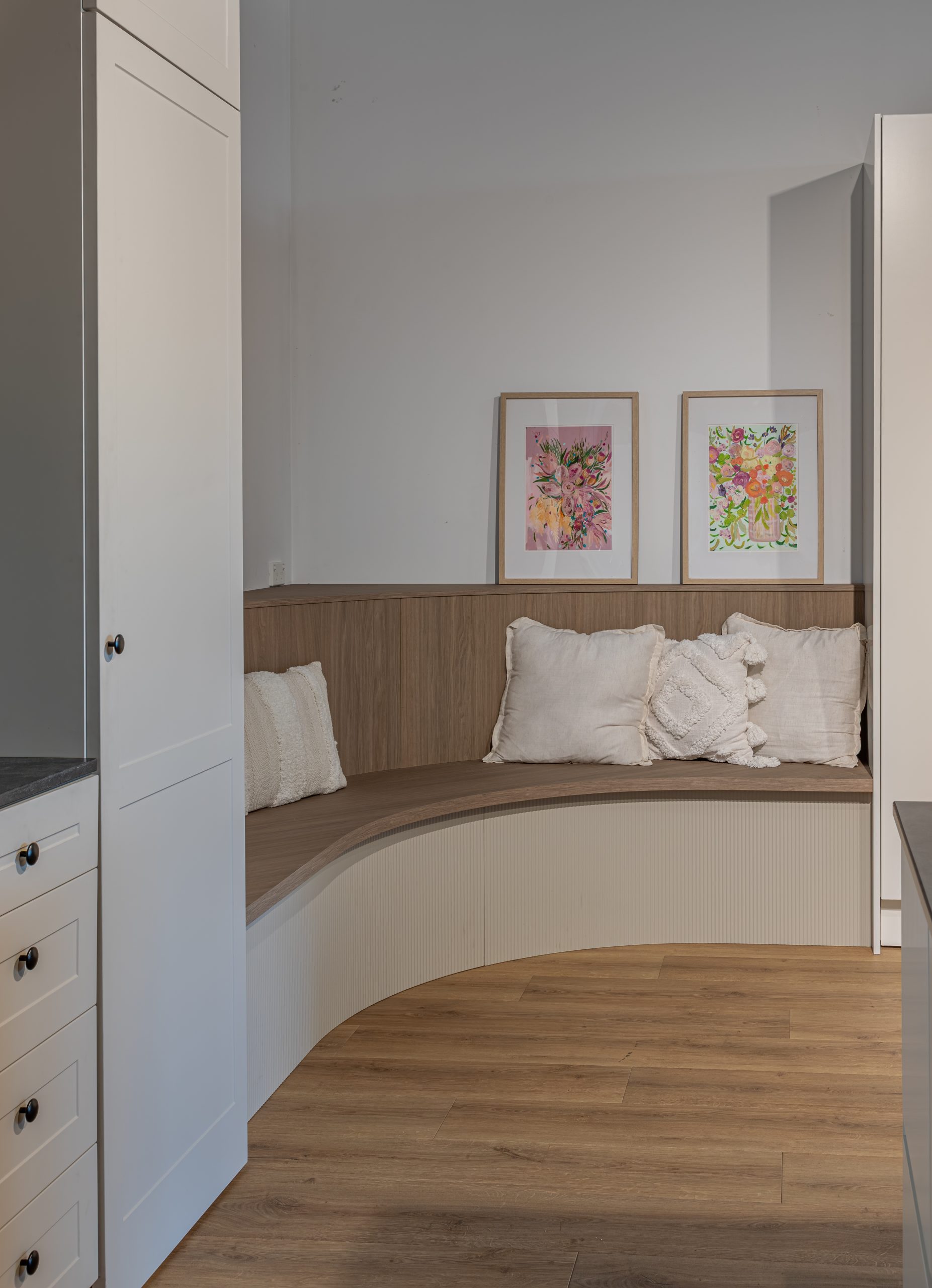

Flexipanel: Most of our linear profiles are available as as a Flexipanel, suitable for using on curves, to match your doors! These are suitable for a 200mm radius or larger.
Important note for the cabinetmaker: use PVA glue to apply the panel to the full substrate backing. Do not use a solvent-based glue, as this can react & cause delamination.
Colours: With a range of 23 colours available, with a range of finishes like Satin, Texture, Woodgrain, Gloss and Matte. The matte surface is a new development internationally, which improved resistance. Check out the ‘colours’ tab for more information, or contact us for a colour sample.
Prices do vary across different colours and finishes, due to variation in the raw material prices, so we recommend quoting in the colour that you’re planning to use.
Application Types: Opticoat is available with a range of application types – from white melamine on the back (for doors or single sided panels), matching coating on back (ideal for coloured doors where you want a matching colour on the back), 100mm wrap (for fixed end panels where you only see the front edge and a little bit of the back) or variable wrap (where you need a deeper return on the back of the panel – such as open shelves or fridge panels).

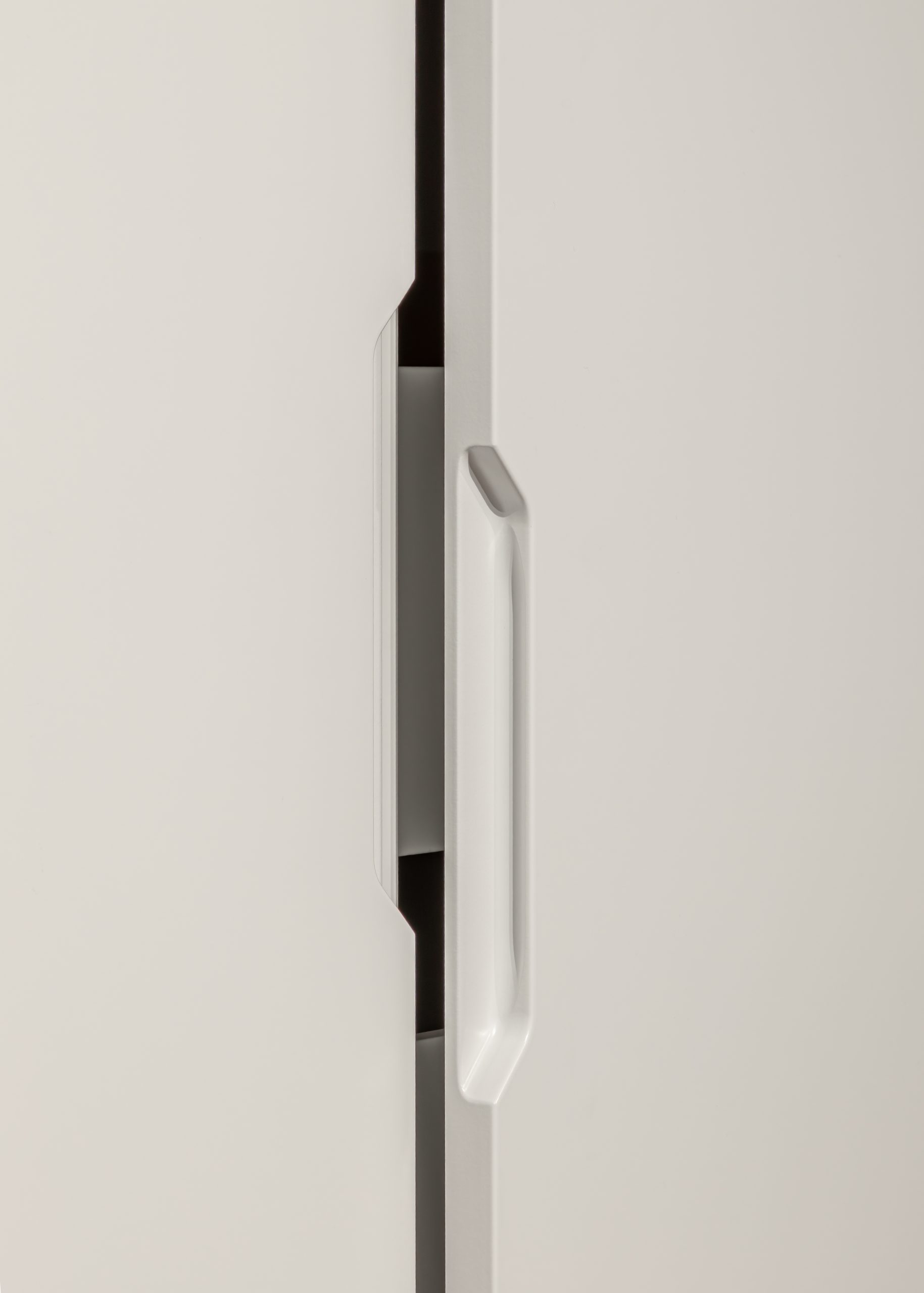

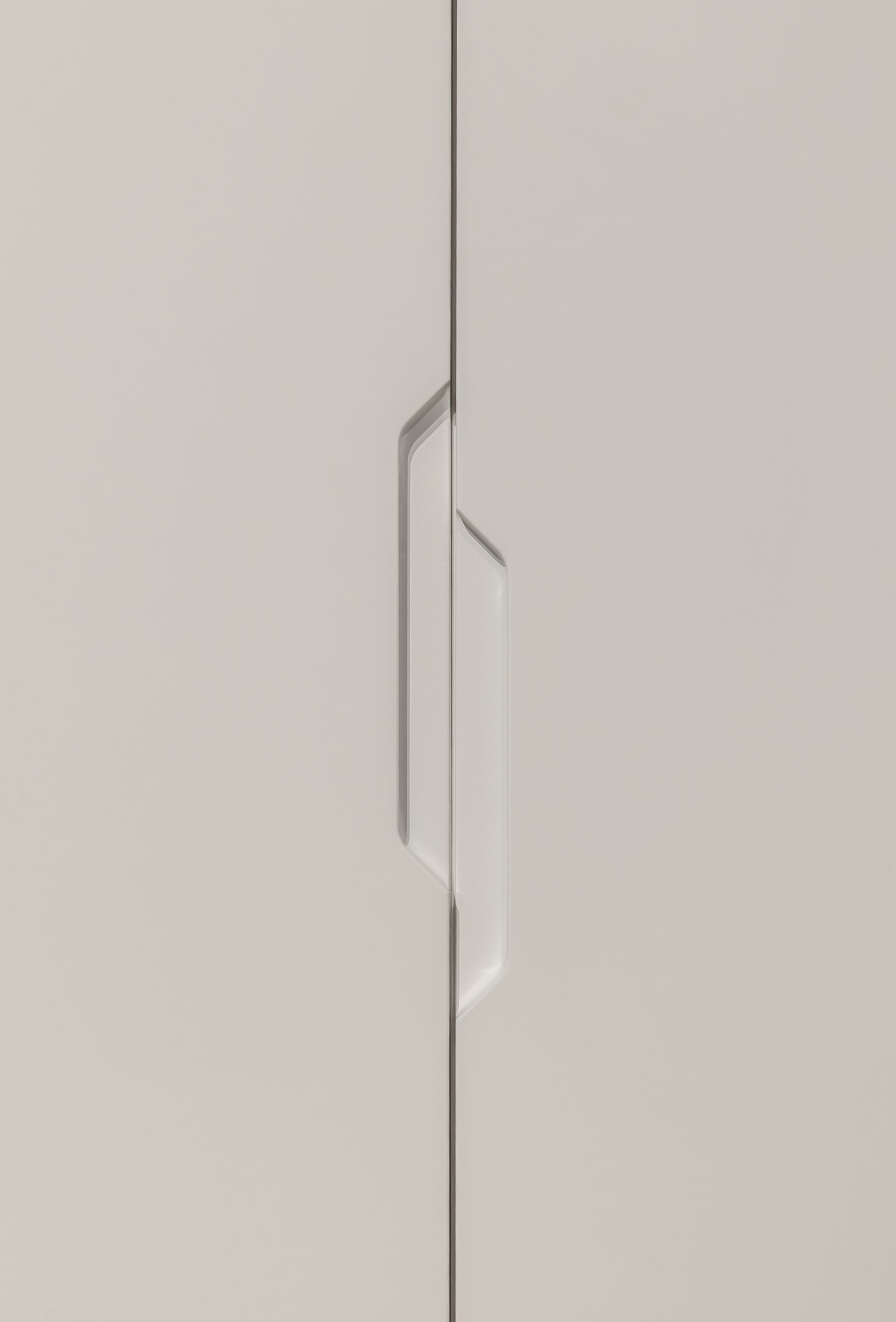

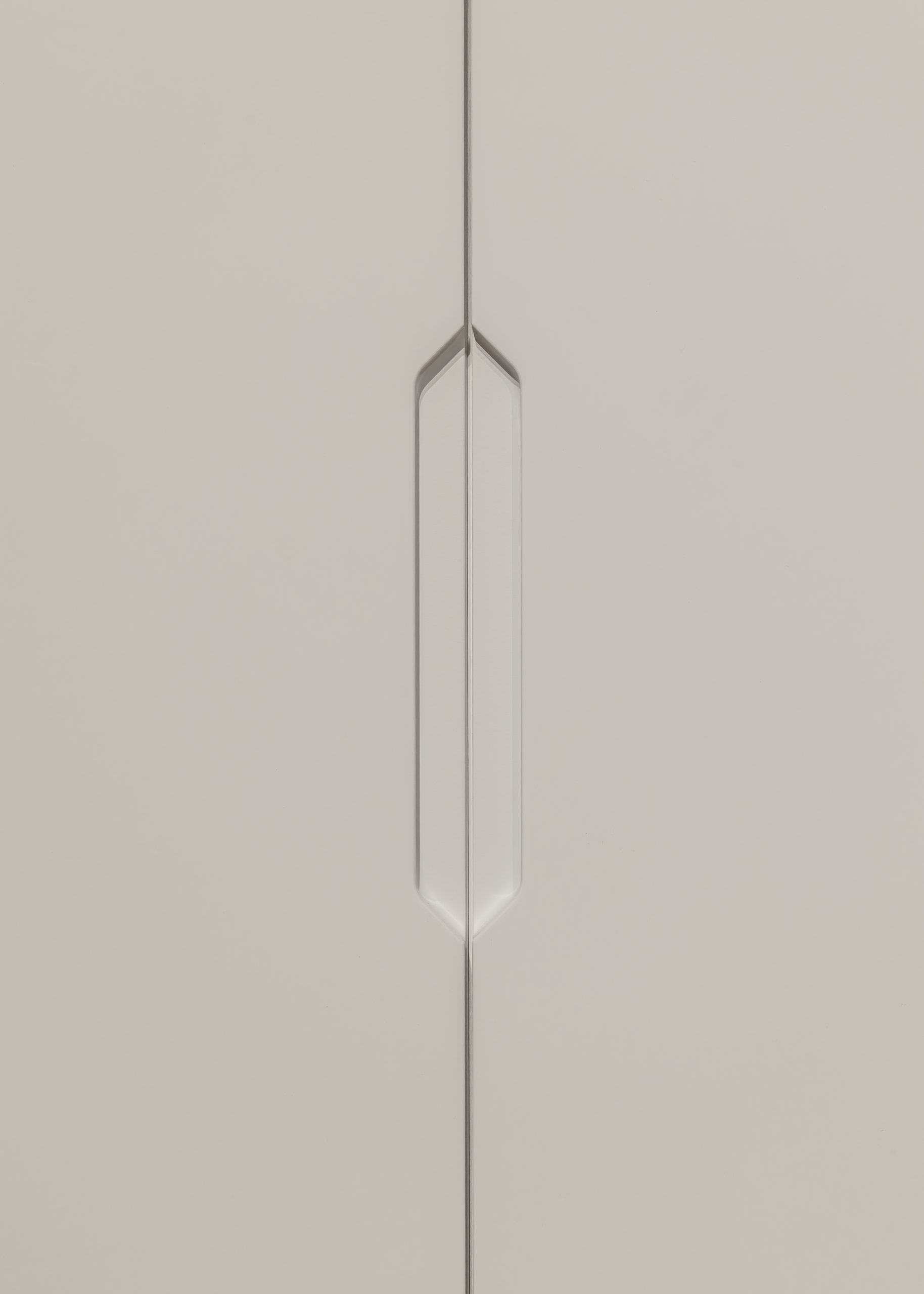

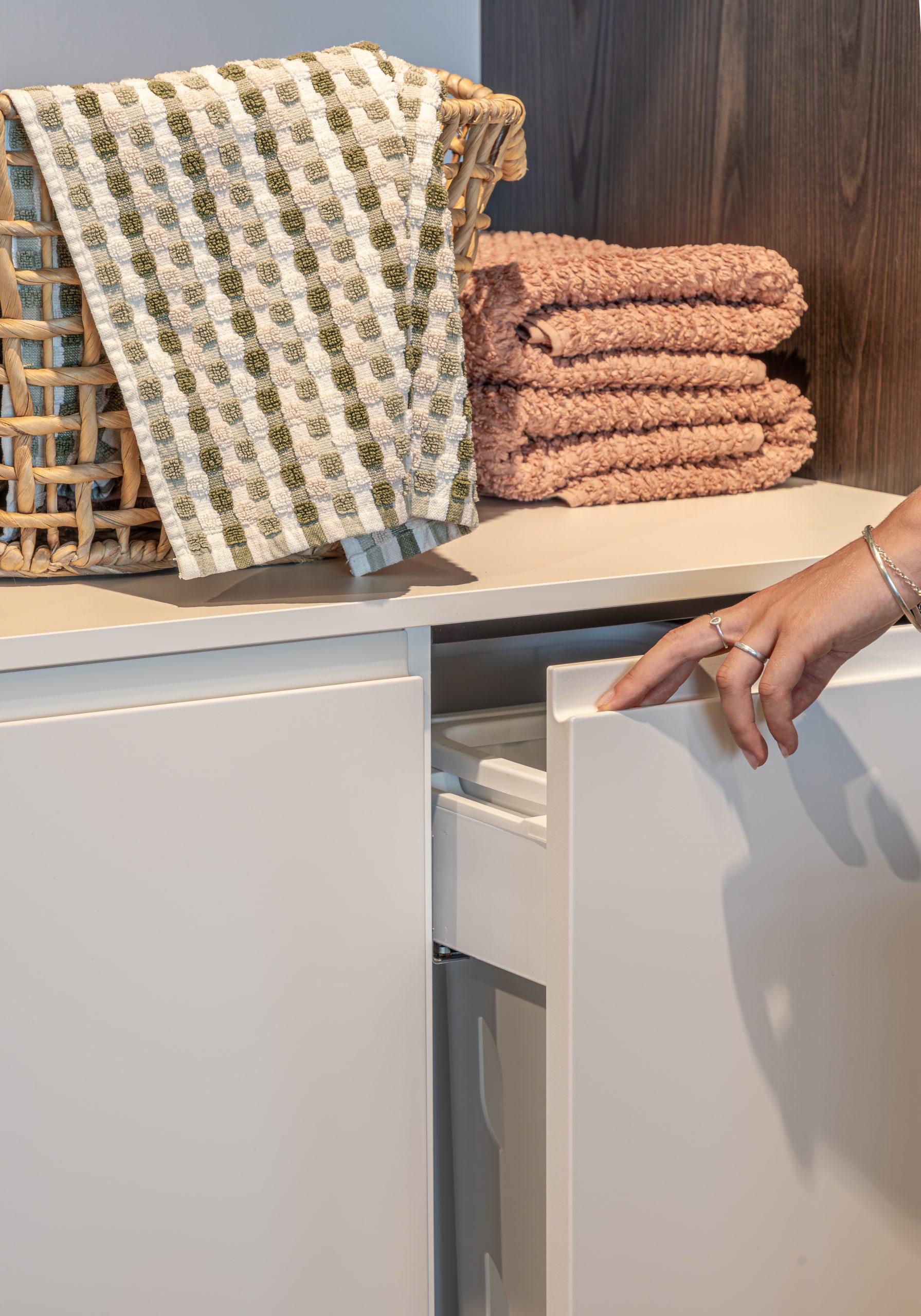

Handles: We have 3 integrated handle options available – a profile handle (requires a backing rail in the cabinet), J Handle (no backing rail required, to give maximum drawer capacity) and Inset Handle (similar to the J Handle but with custom positioning.
Colour Range
Opticoat Milk Satin
Similar to Warm White. Same as Classic White Satin.

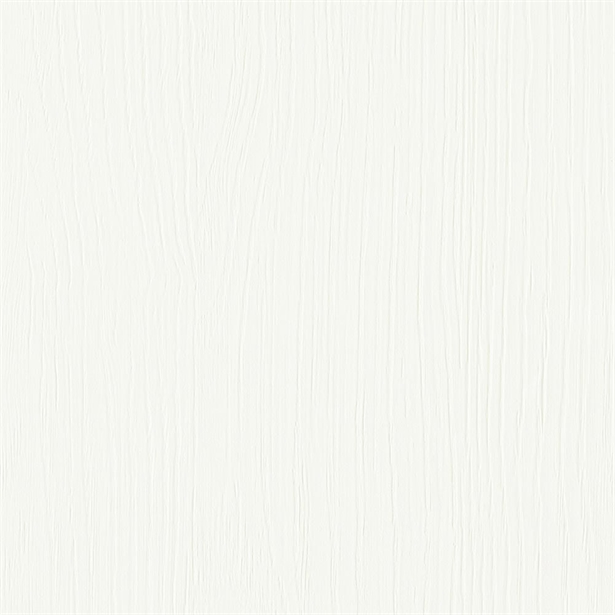

Opticoat Milk Woodgrain
Similar to Warm White, with a nice deep woodgrain texture.
Opticoat Marshmallow Satin
Similar to Melteca Snowdrift. Bonlex ‘White Satin’.
Opticoat Marshmallow Texture
Similar to Melteca Snowdrift.
Opticoat Marshmallow Matte
Similar to Melteca Snowdrift.
Opticoat Marshmallow Gloss
Similar to Melteca Snowdrift.
Opticoat Igloo Satin
Similar to Melteca Snowdrift, but more white than Marshmallow. Bonlex ‘Designer White Satin’.

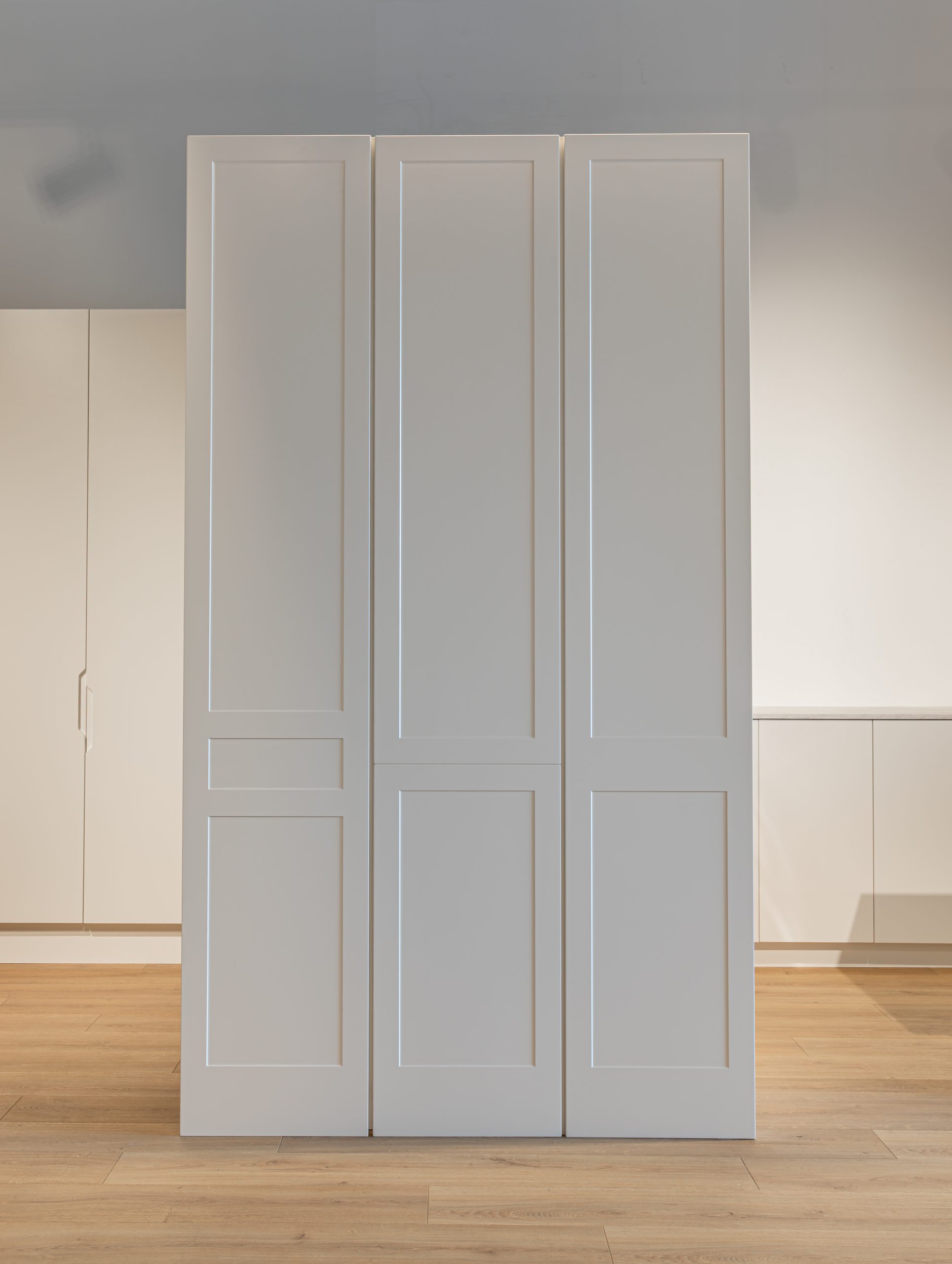

Opticoat Vanilla Cupcake Satin
Similar to Feather White or Streetlight. ‘Alabaster Satin’
Opticoat Buttercream Satin

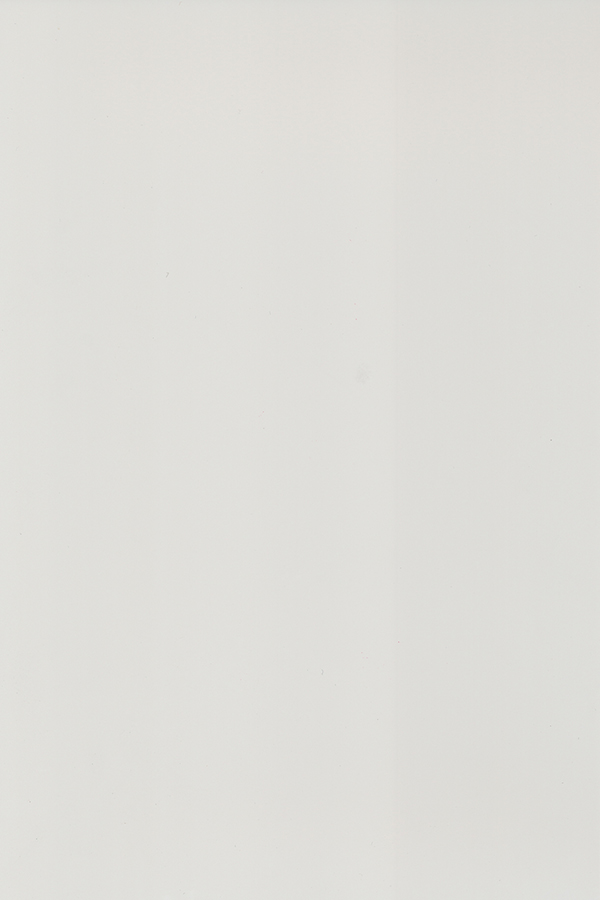

Opticoat Macadamia Satin
Similar to Melteca. Same as vinyl ‘Oyster’.

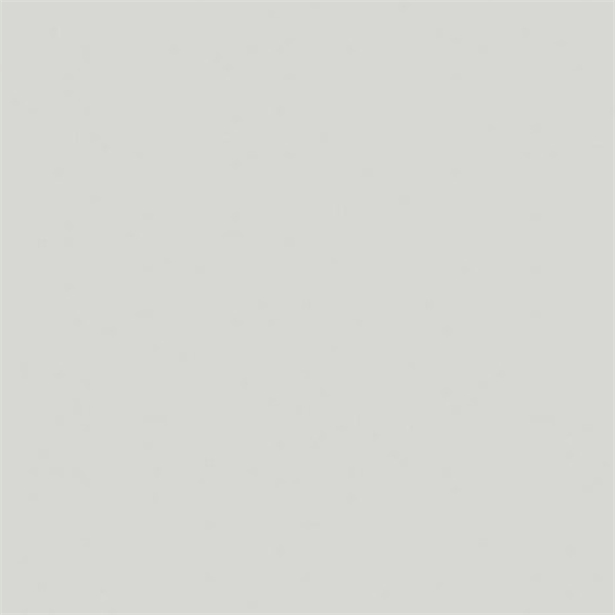

Opticoat Elephant Breath Texture
A light grey, similar to the breath of an elephant on a cold day in Antarctica.

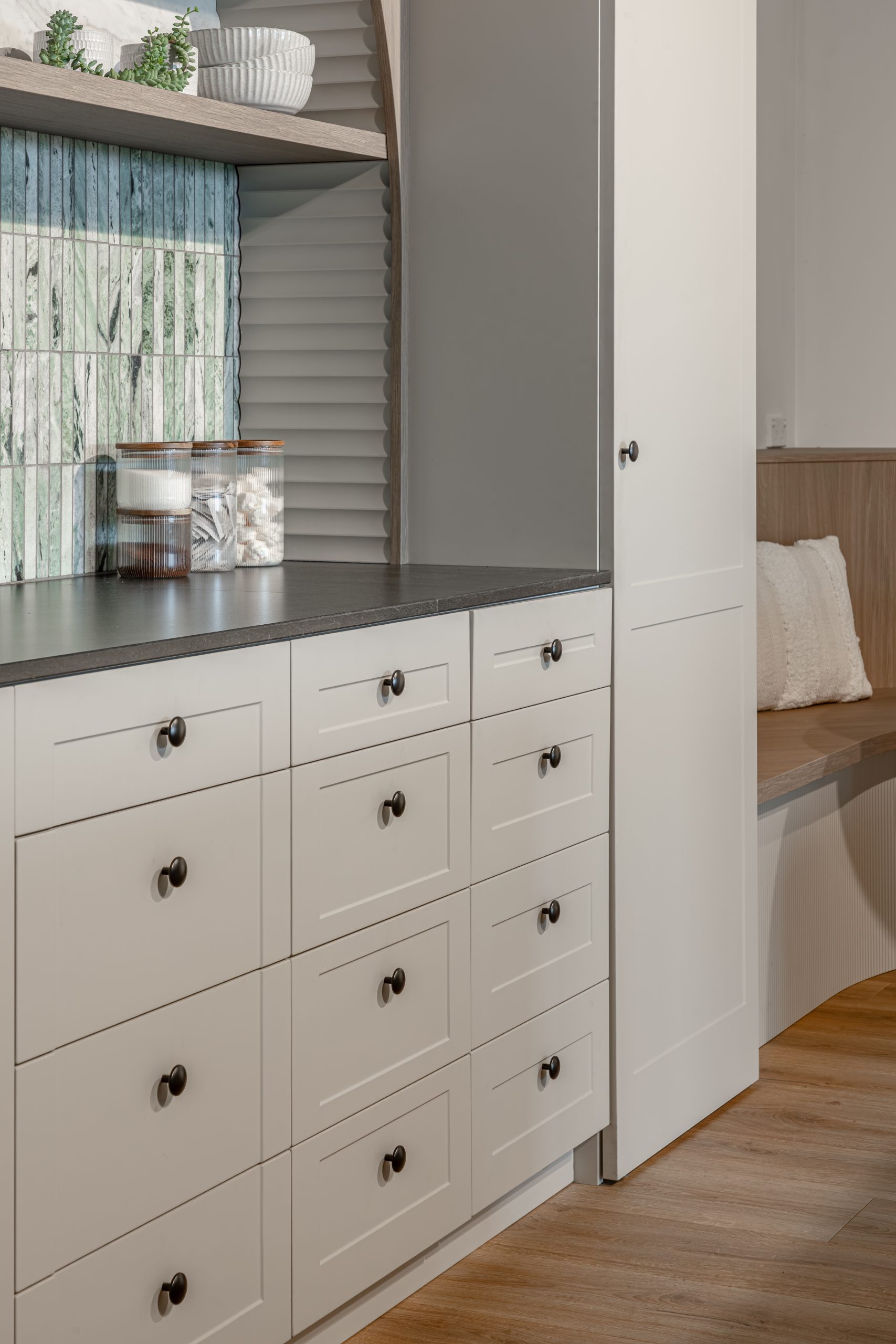

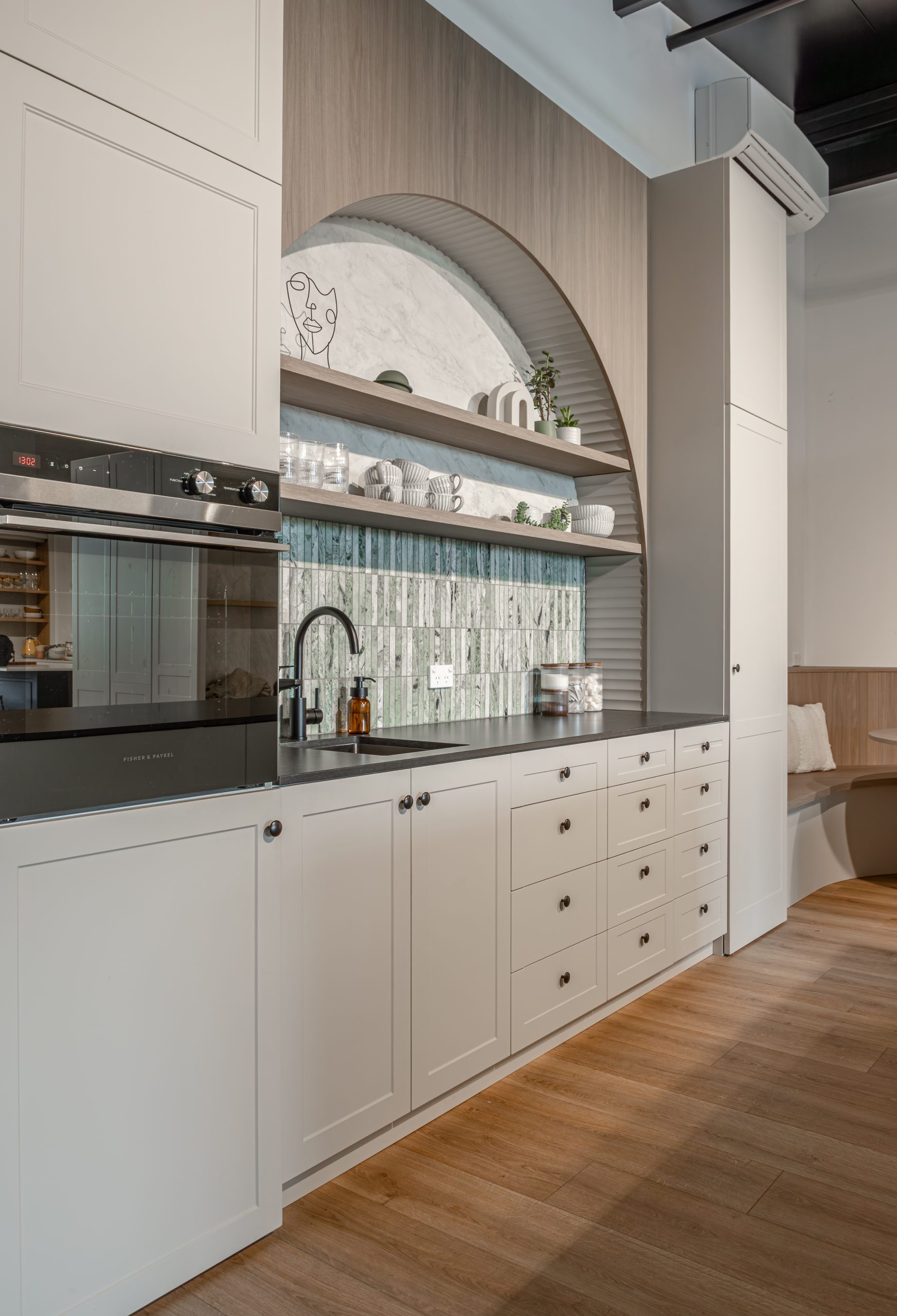

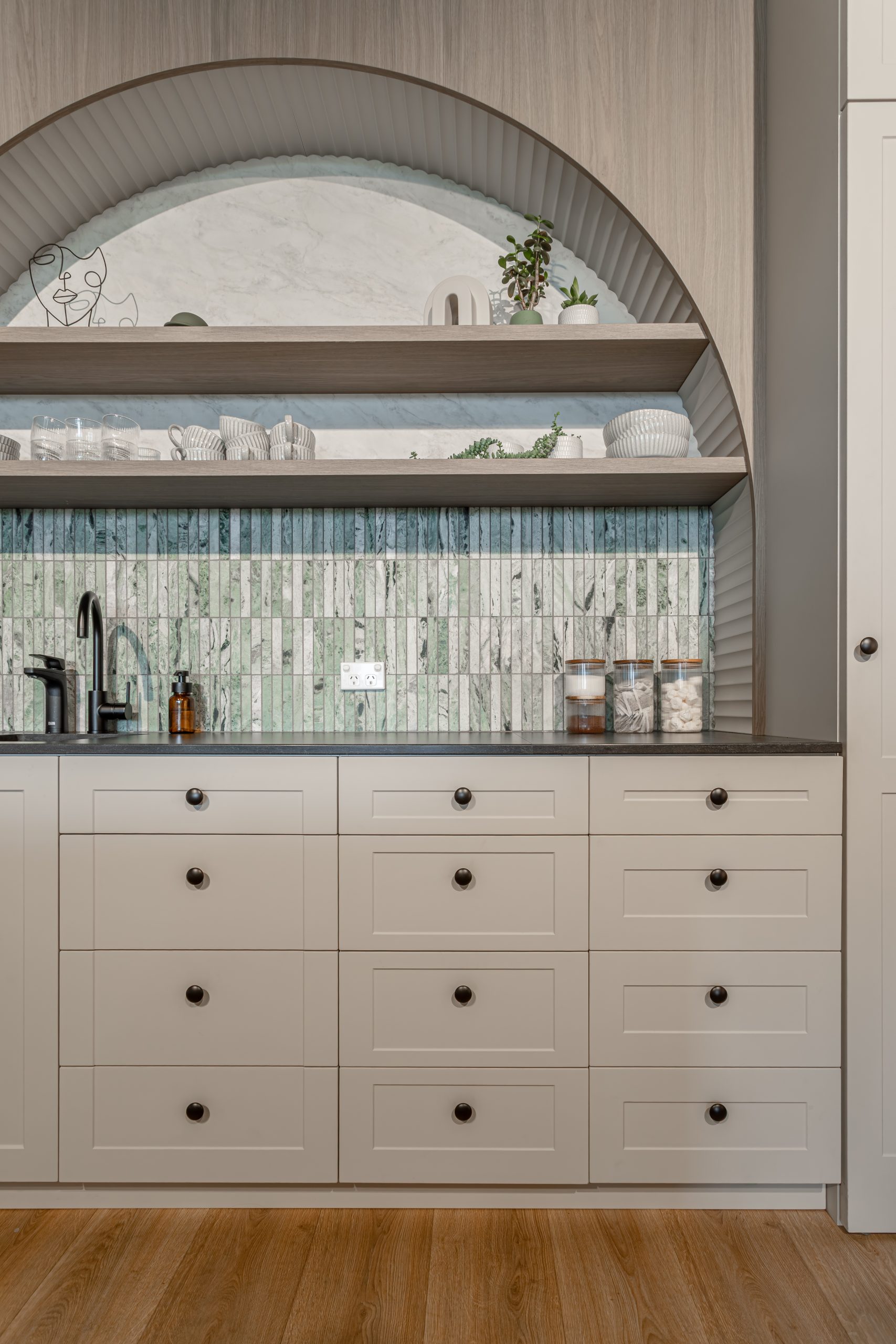

Opticoat Latte Matte
A soft beige tone in a luscious matte finish.
Opticoat Almond Matte
A soft, warm beige tone in a luscious matte finish.
Opticoat Almond Woodgrain
A soft, warm beige tone with a deep woodgrain texture.
Opticoat Vintage Mint Satin
A soft pale green with a hint of blue/grey.
Opticoat Olive Grove Matte
A warm green tone, like walking through an Olive Grove in Spain. Featuring a luscious matte finish.
Opticoat Olive Grove Woodgrain
A warm green tone, like walking through an Olive Grove in Spain. Featuring a deep woodgrain texture.
Opticoat Thyme Matte
A cooler mid-green, with a luscious matte finish.
Opticoat Kea Matte
Bold and fun, like a cheeky Kea, featuring a soft matte finish, like a Kea’s feathers.

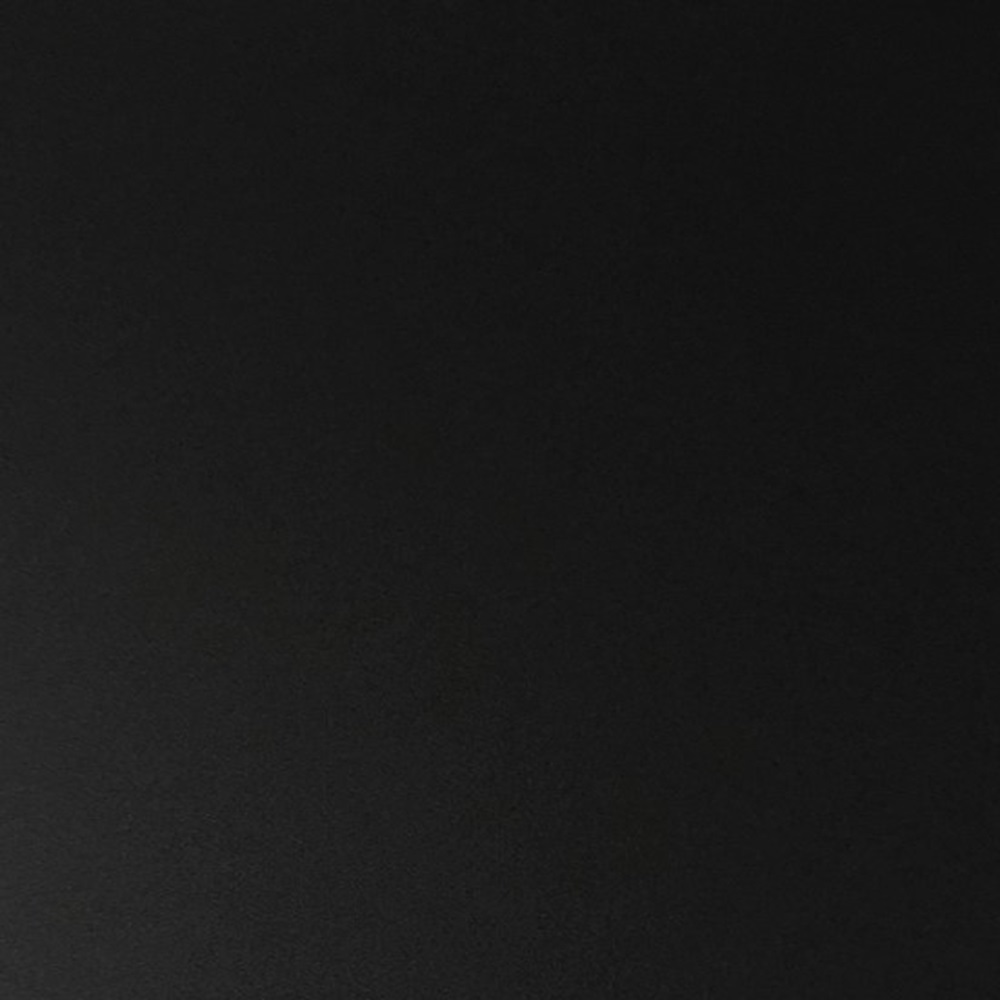

Opticoat Panther Matte
Bold and dark, like the blackest panther you ever saw, in a luscious matte finish, soft as a Pather’s coat.
Opticoat Panther Woodgrain
Bold and dark, like the blackest panther you ever saw, featuring a deep woodgrain texture.
Profile Range

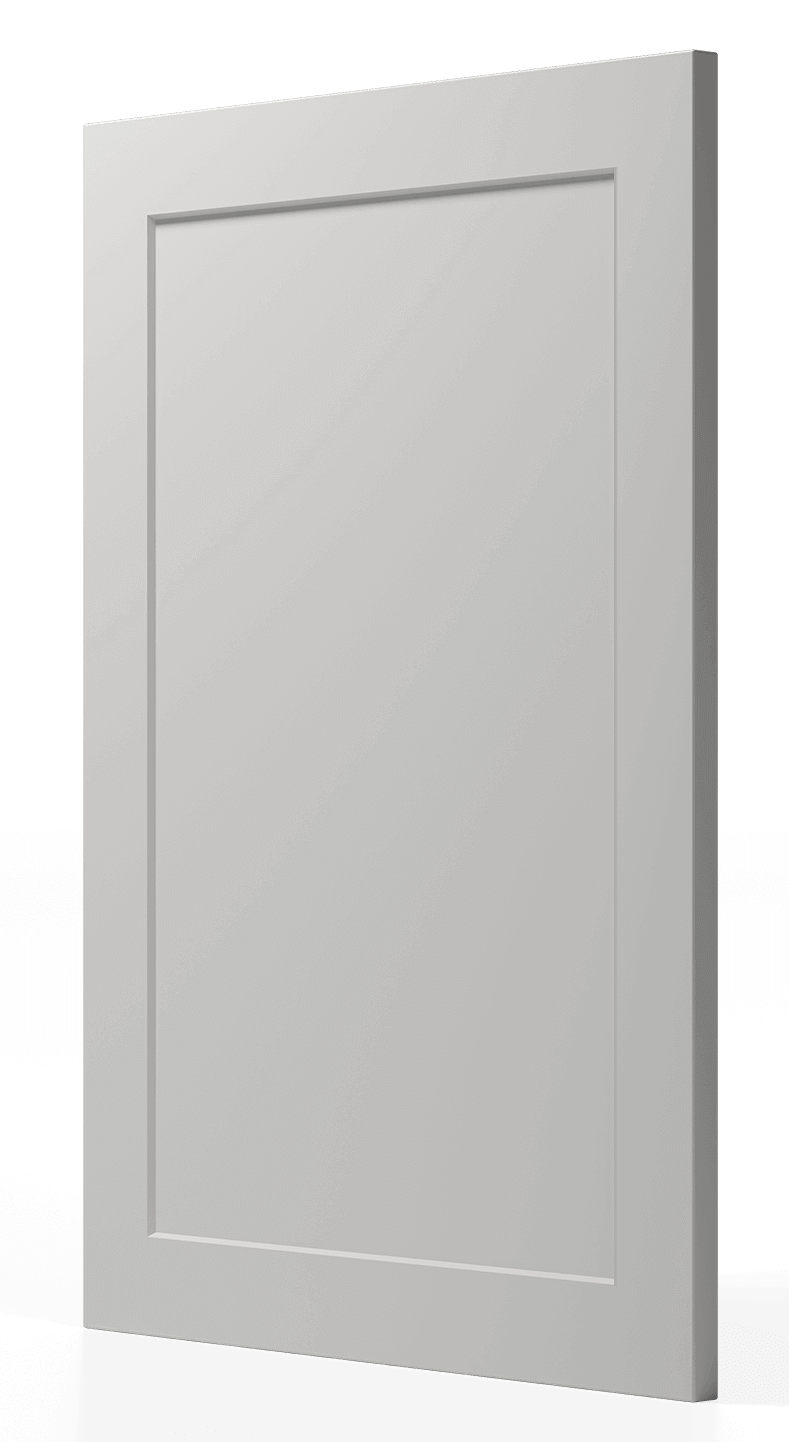

Alabama
A classic shaker-style profile. Similar to Optidoor Rhode Island.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm

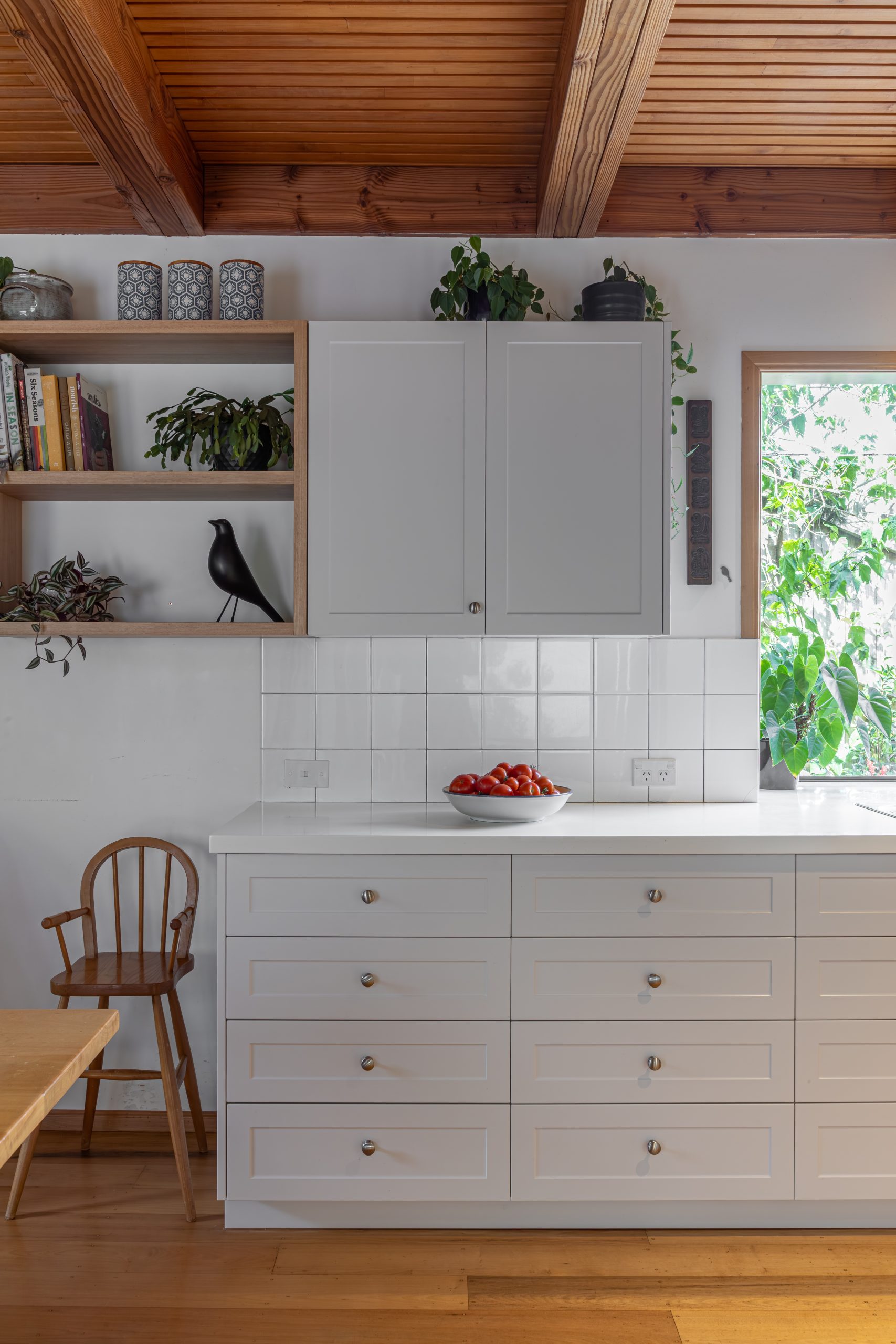

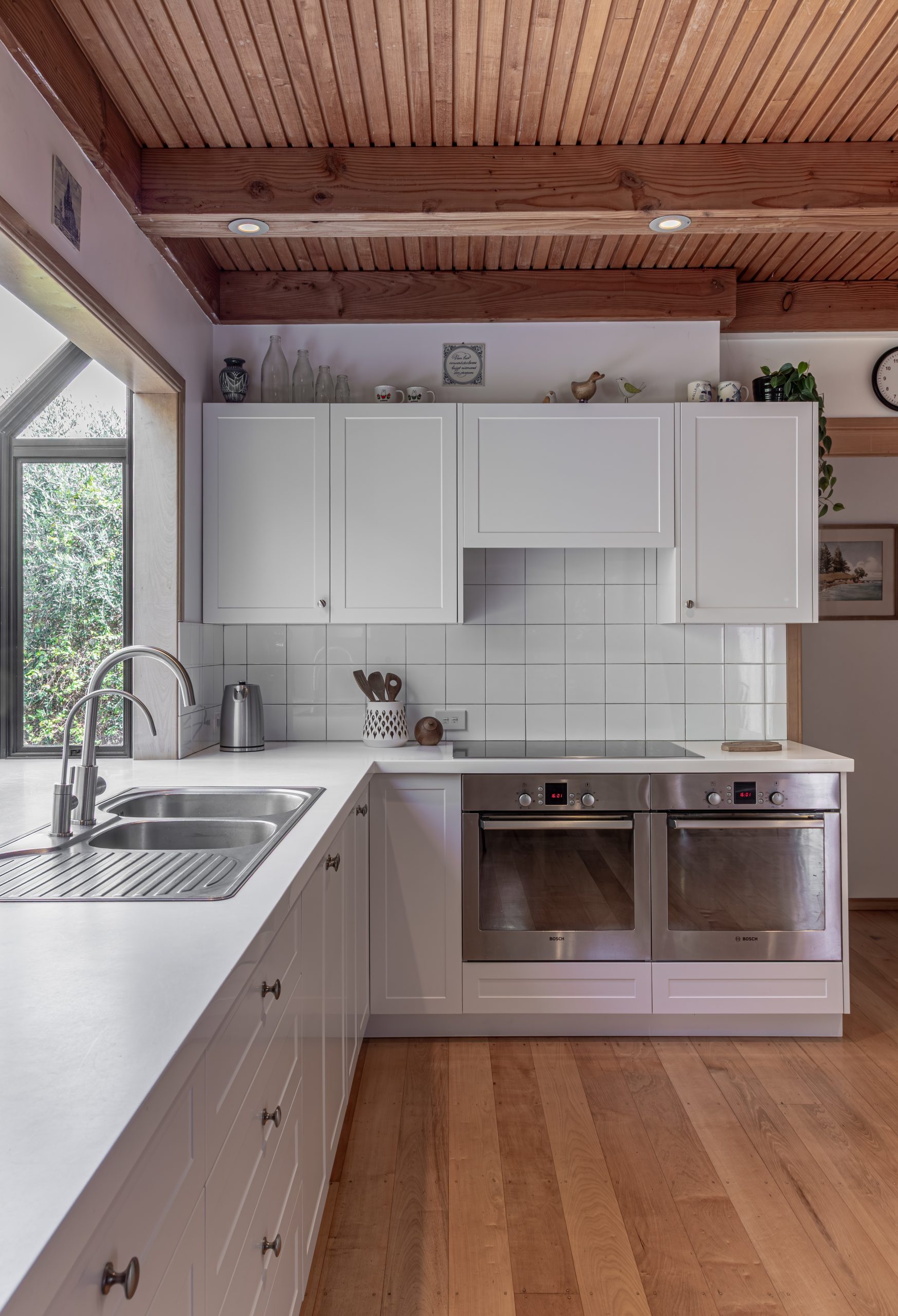

Utah
A shallower shaker-style frame for easy cleaning. This profile is one of our most popular, for a good reason!
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm

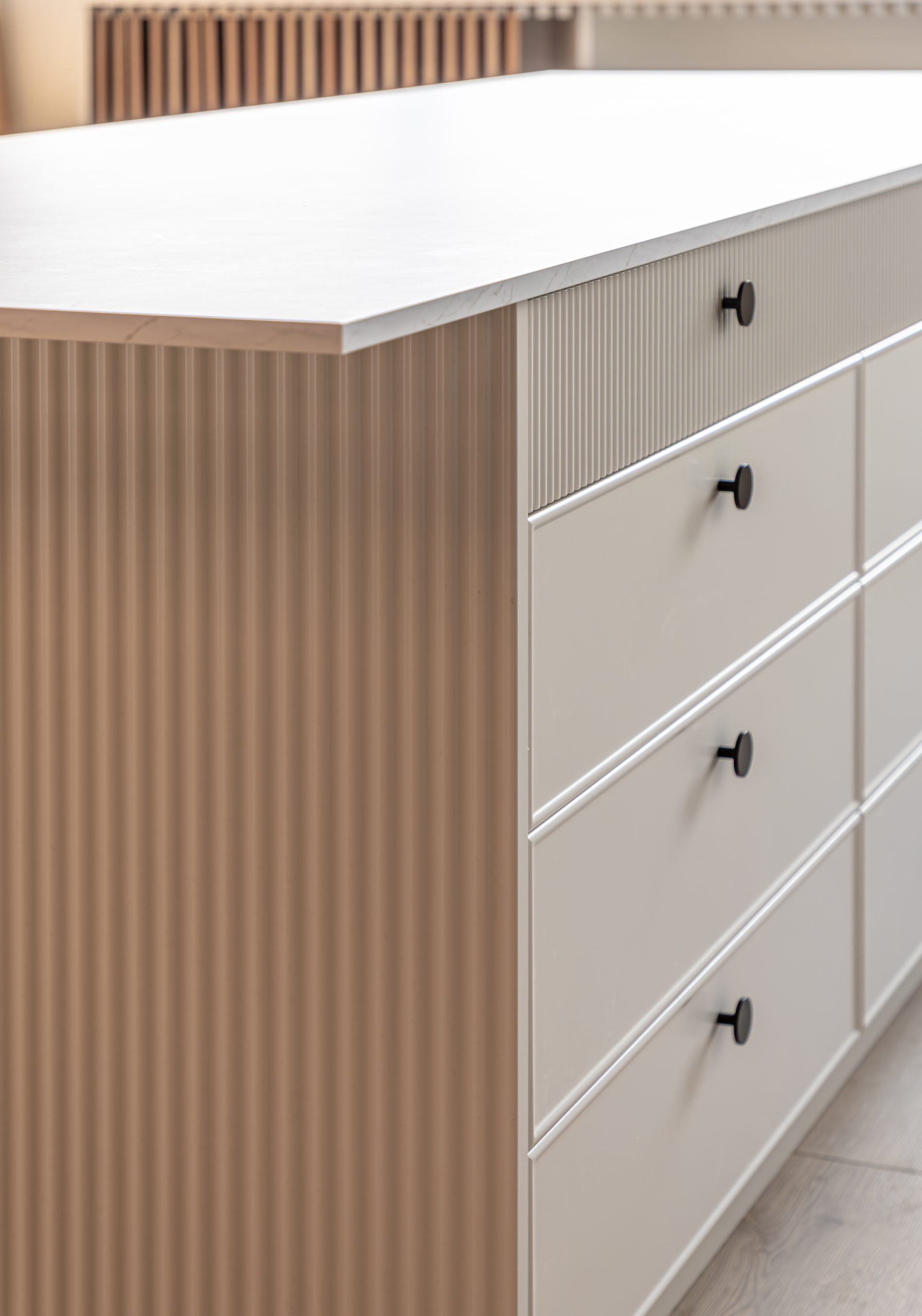

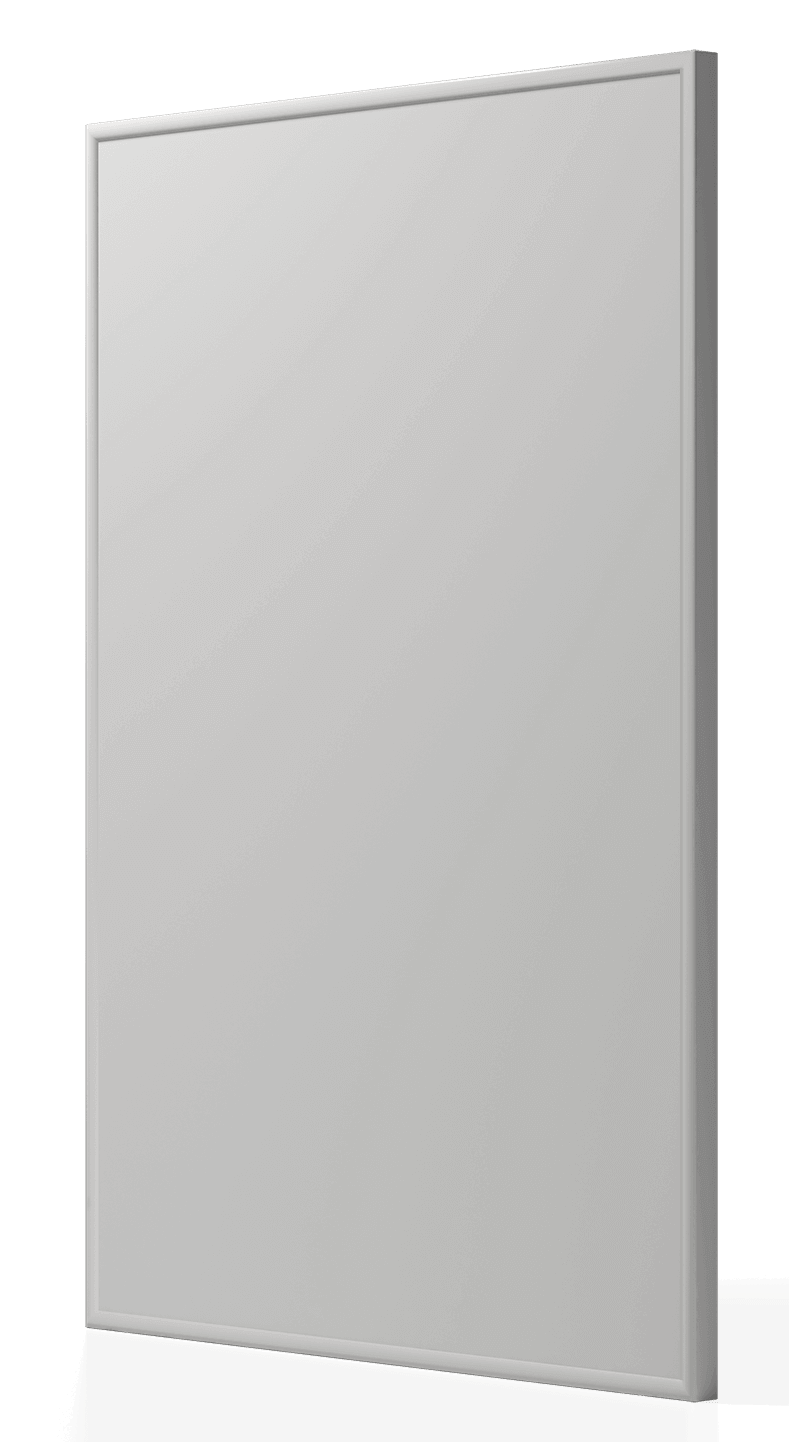

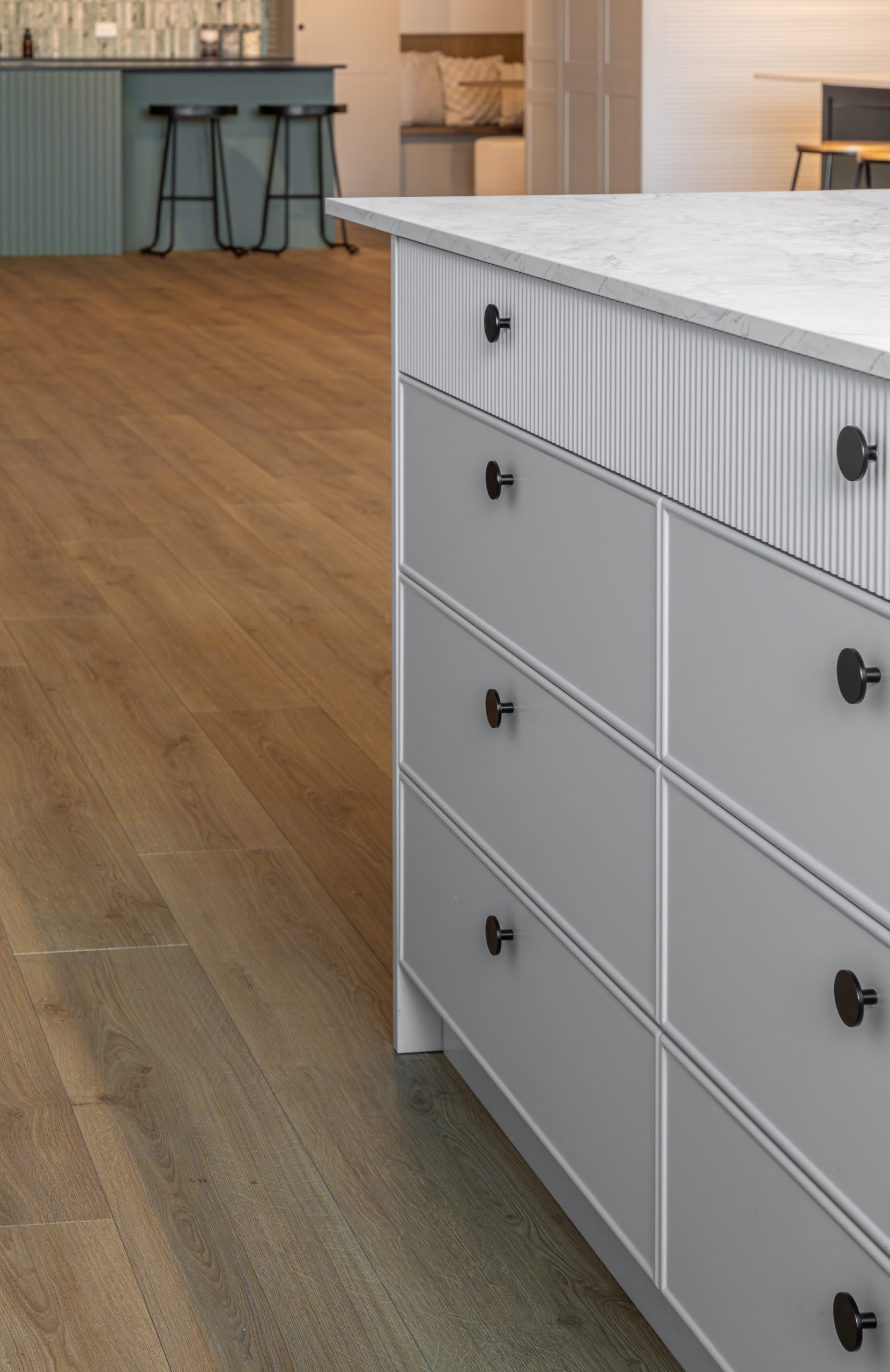

Georgia
A cute bead frame with a fun retro twist.
Note: this profile is prone to bowing due to the narrow frame width, so is more suitable for smaller doors.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm
New Orleans
Subtle and sophisticated for a minimalist look, similar to Optidoor Louisiana.
Note: profile is prone to bowing due to narrow frame width.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm
Baltimore
Our most popular narrow frame, elegant yet simple. Similar to Optidoor Maryland.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm

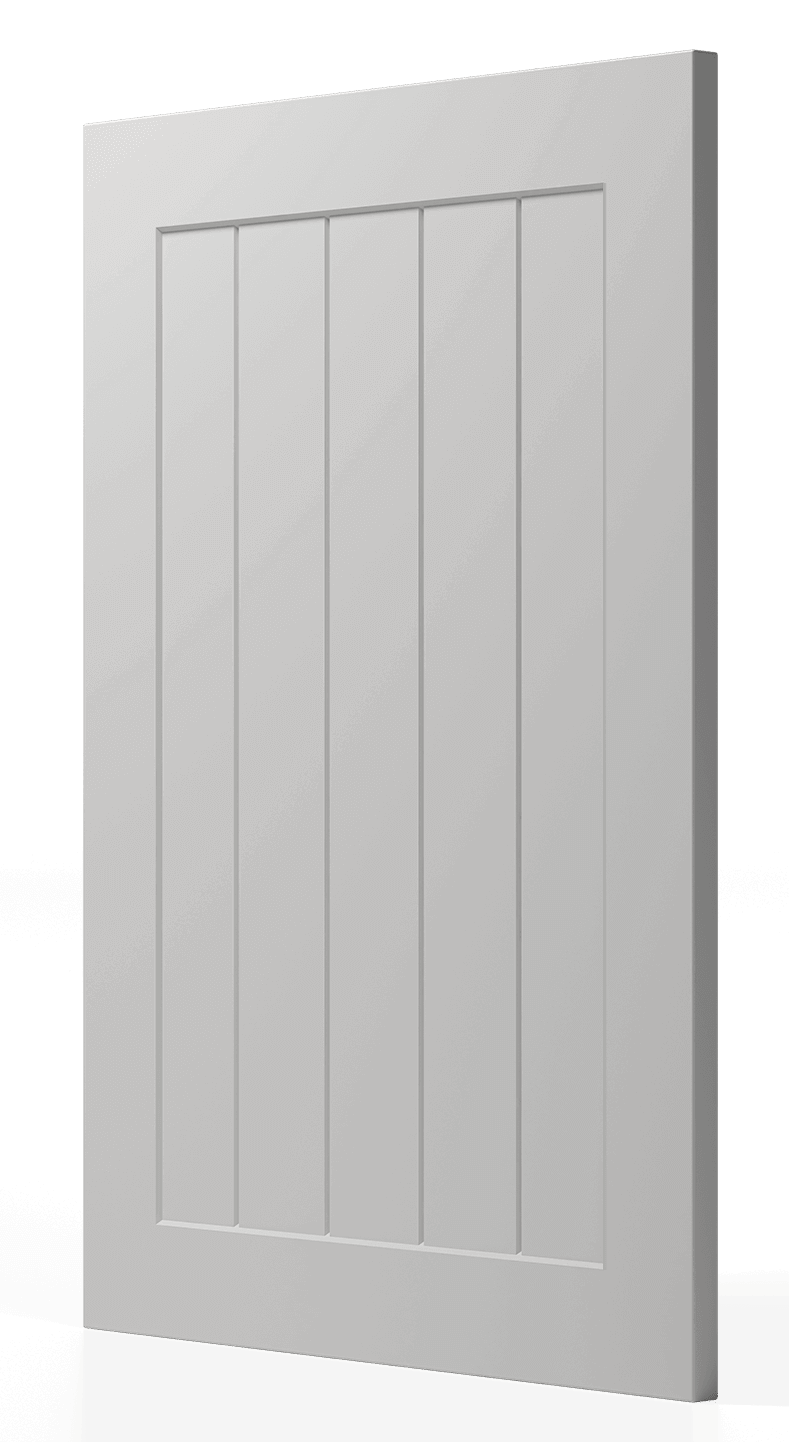

Washington
Similar to Utah, but with traditional v-grooves inside the frame.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm
Dakota
Like Washington, but with v-grooves on the frame to imitate a 5-piece door.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm

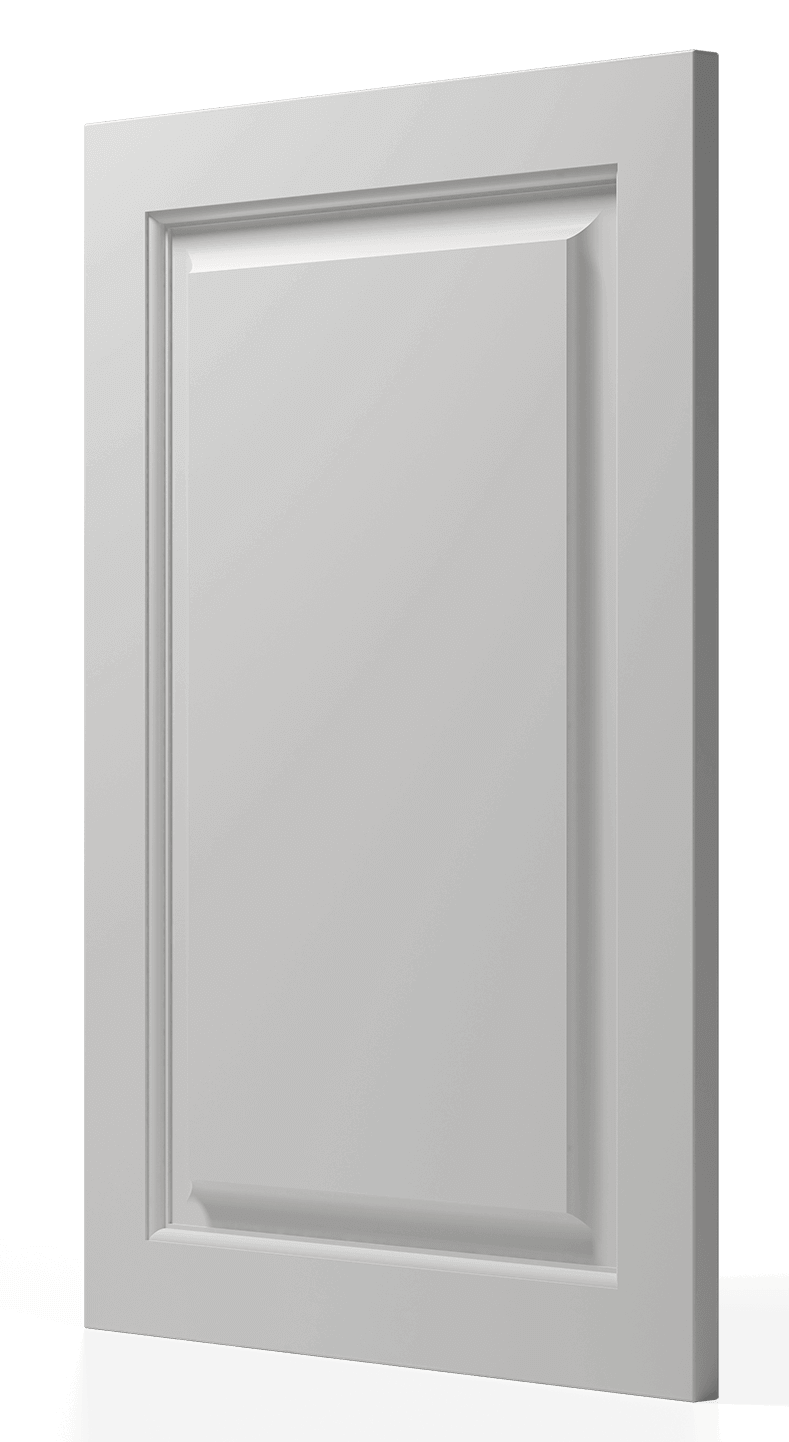

Phoenix
Bold and timeless, inspired by the Grand Canyon. Similar to Optidoor Sedona and Arizona.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm

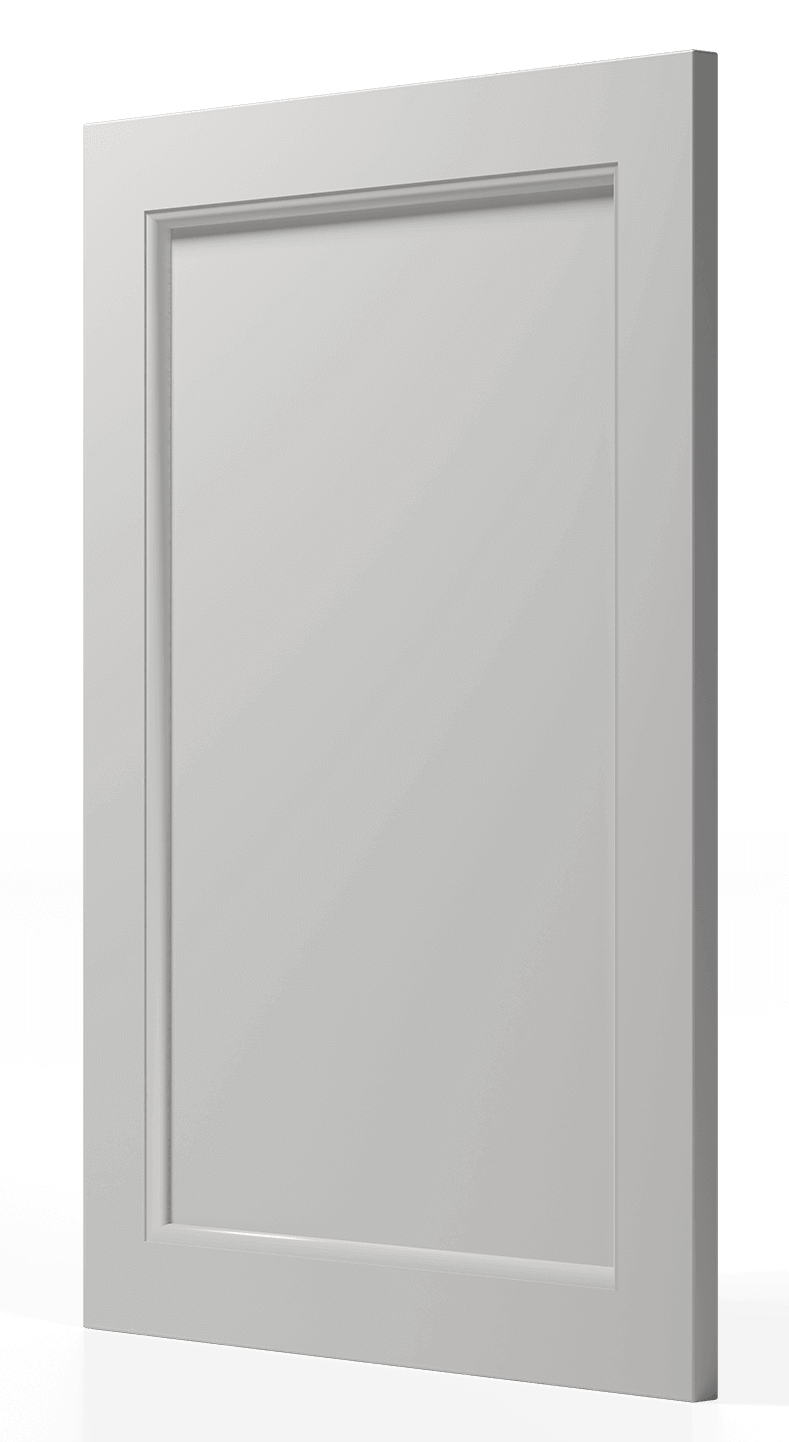

Petoskey
Deep and traditional, like Lake Michigan. Similar to Optidoor Michigan and Detroit.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm

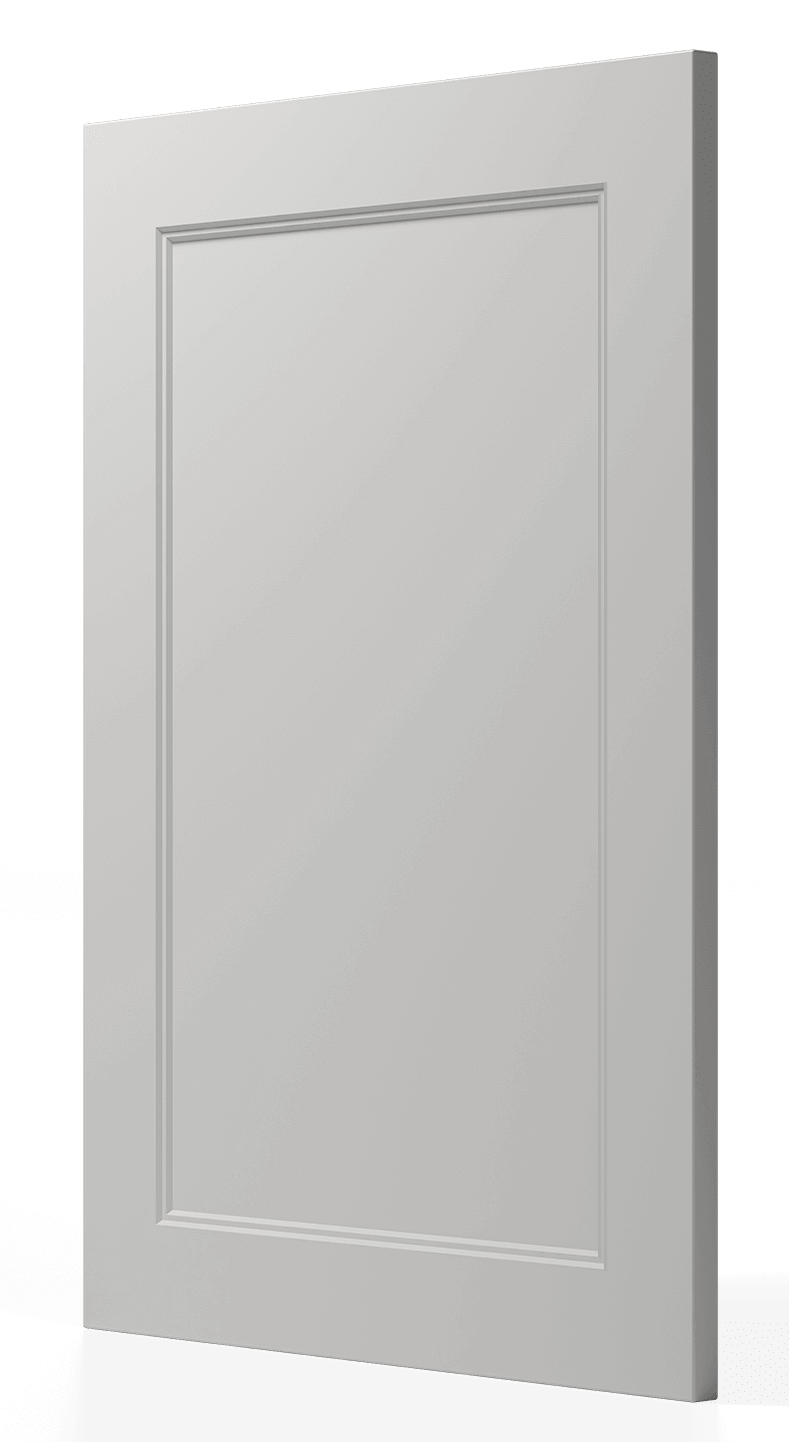

Minnesota
Featuring a mini double frame for a modern twist on the traditional.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm
Minnetonka
Similar to Minnetonka, but with a raised centre for a more traditional look.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm
Montgomery
Similar to Alabama, but with a raised centre for a more traditional look.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm

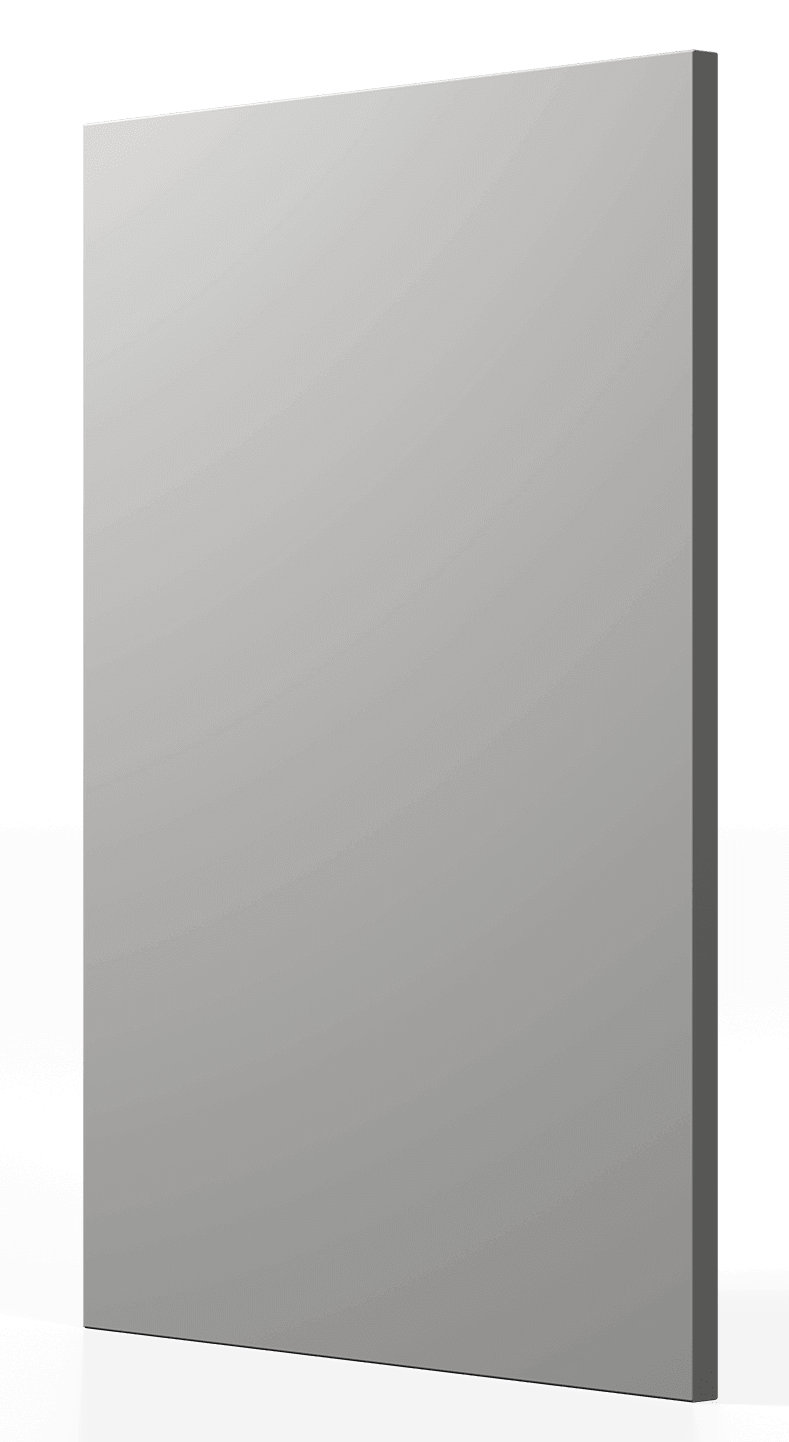

Texas
Keeping things timeless, Texas is ideal for end panels or flat doors.
Customisable: Yes (edge profiles)
Flexipanel option: No
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm

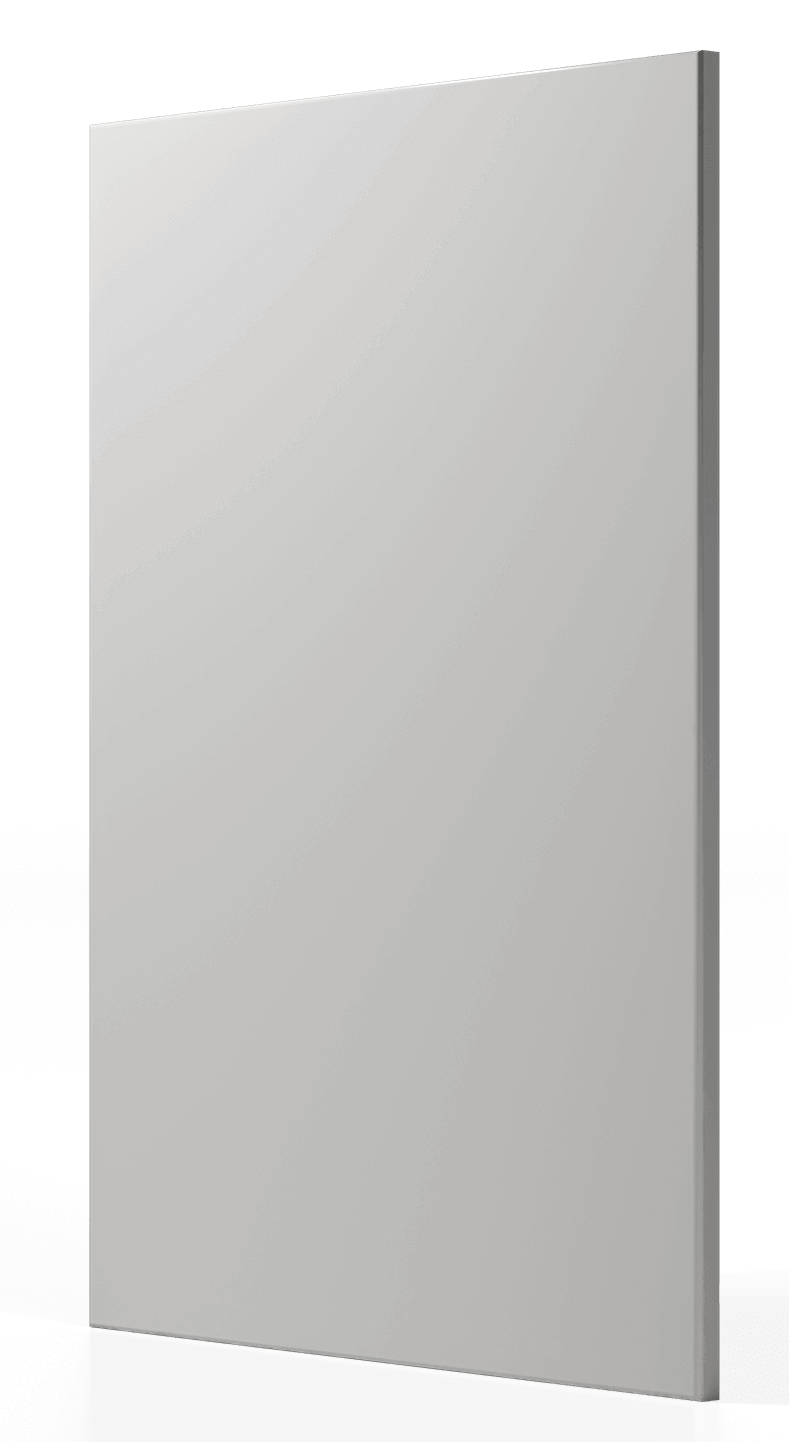

Colorado
With a chamfered edge for a smooth, softened look.
Customisable: No
Flexipanel option: No
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm
Mississippi
A simple fluted frame.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm

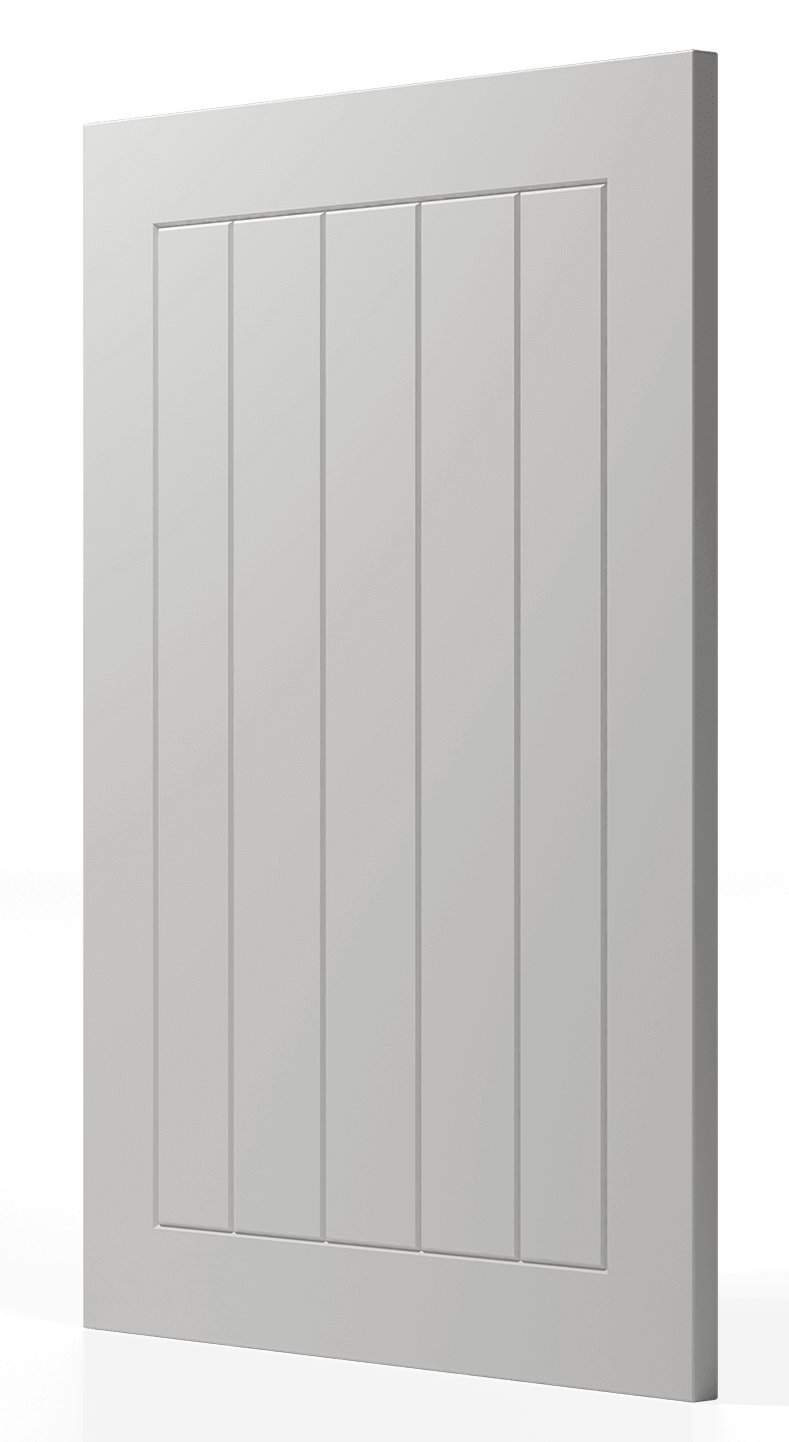

Oklahoma
Similar to Washington but without a recessed frame.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm

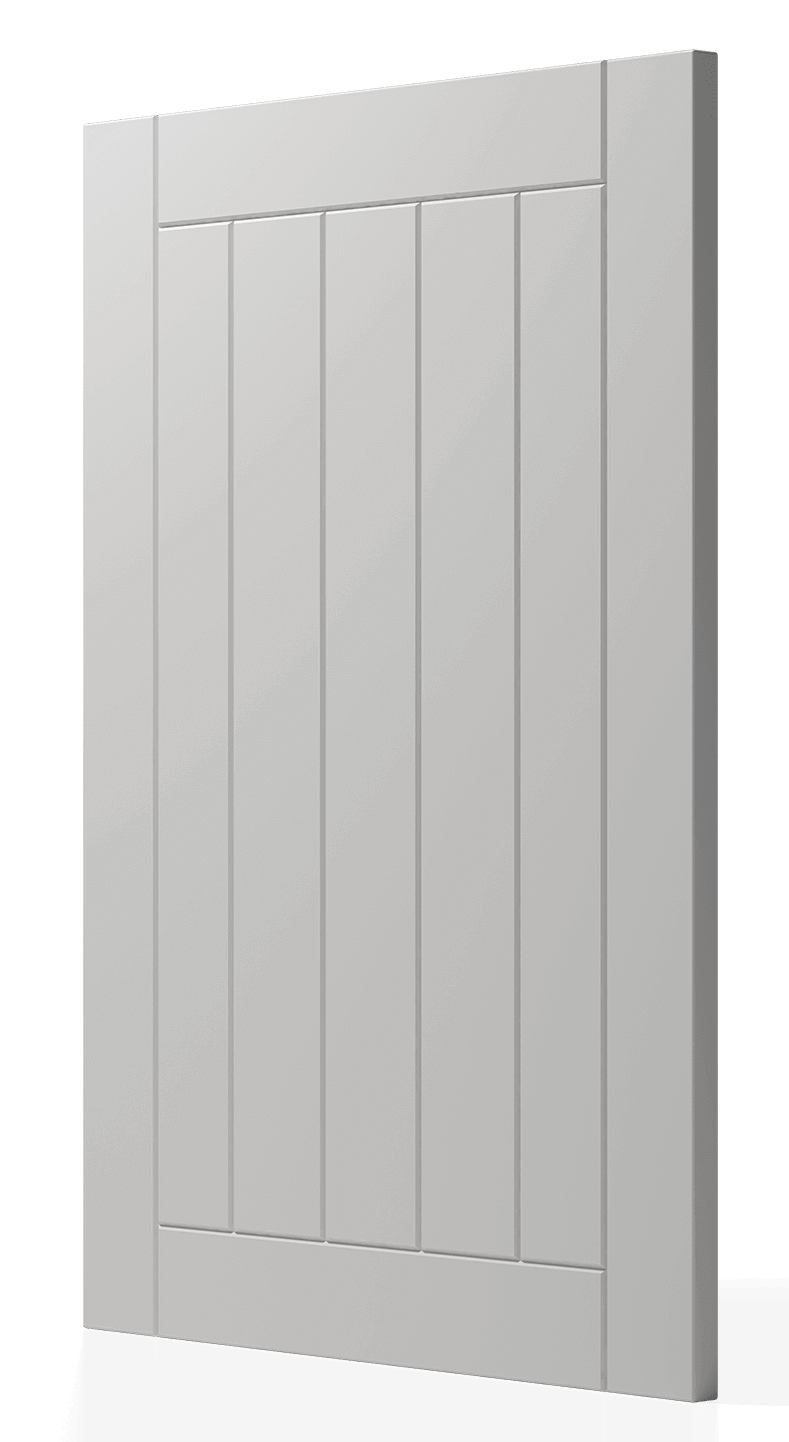

Wisconsin
Similar to Dakota, but without a recessed frame.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm

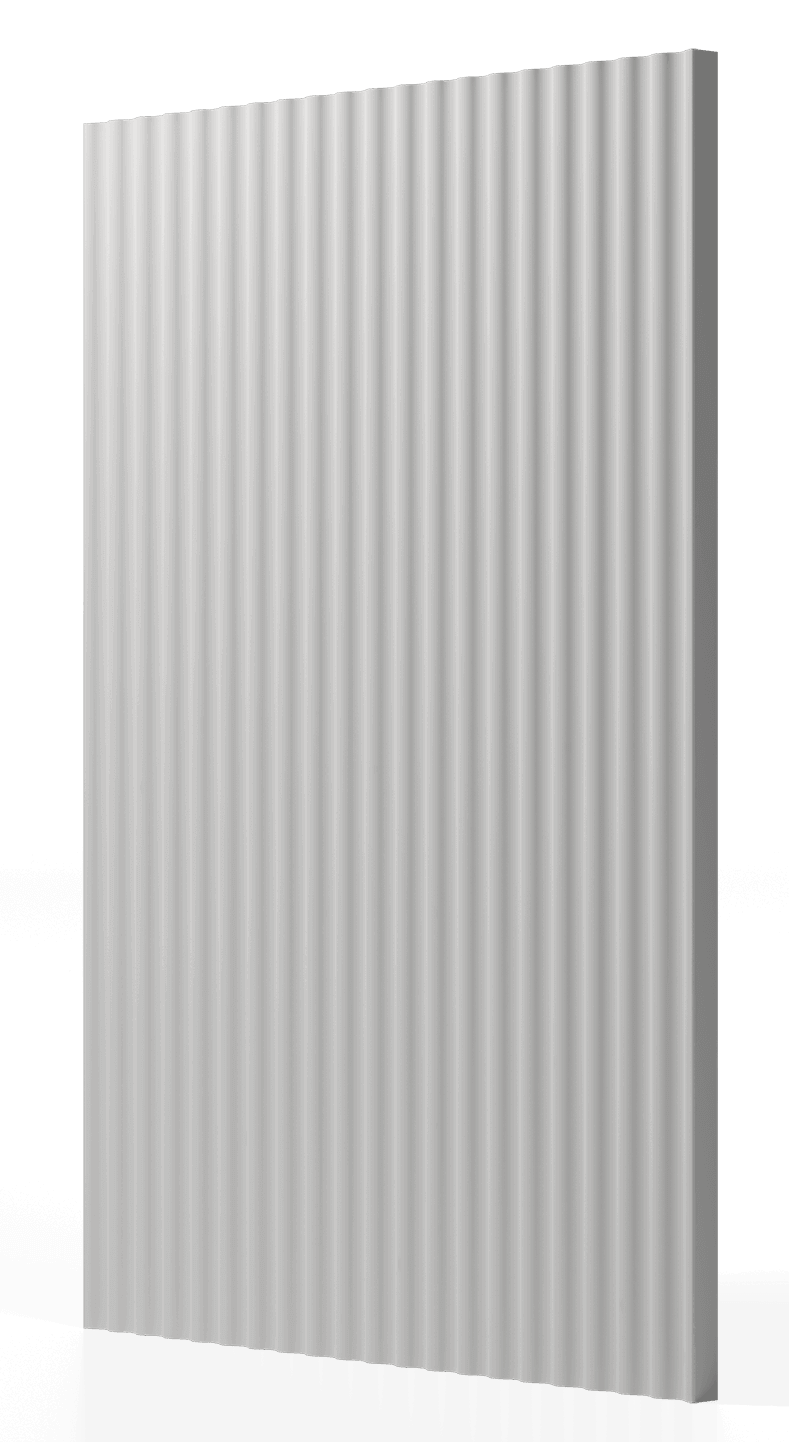

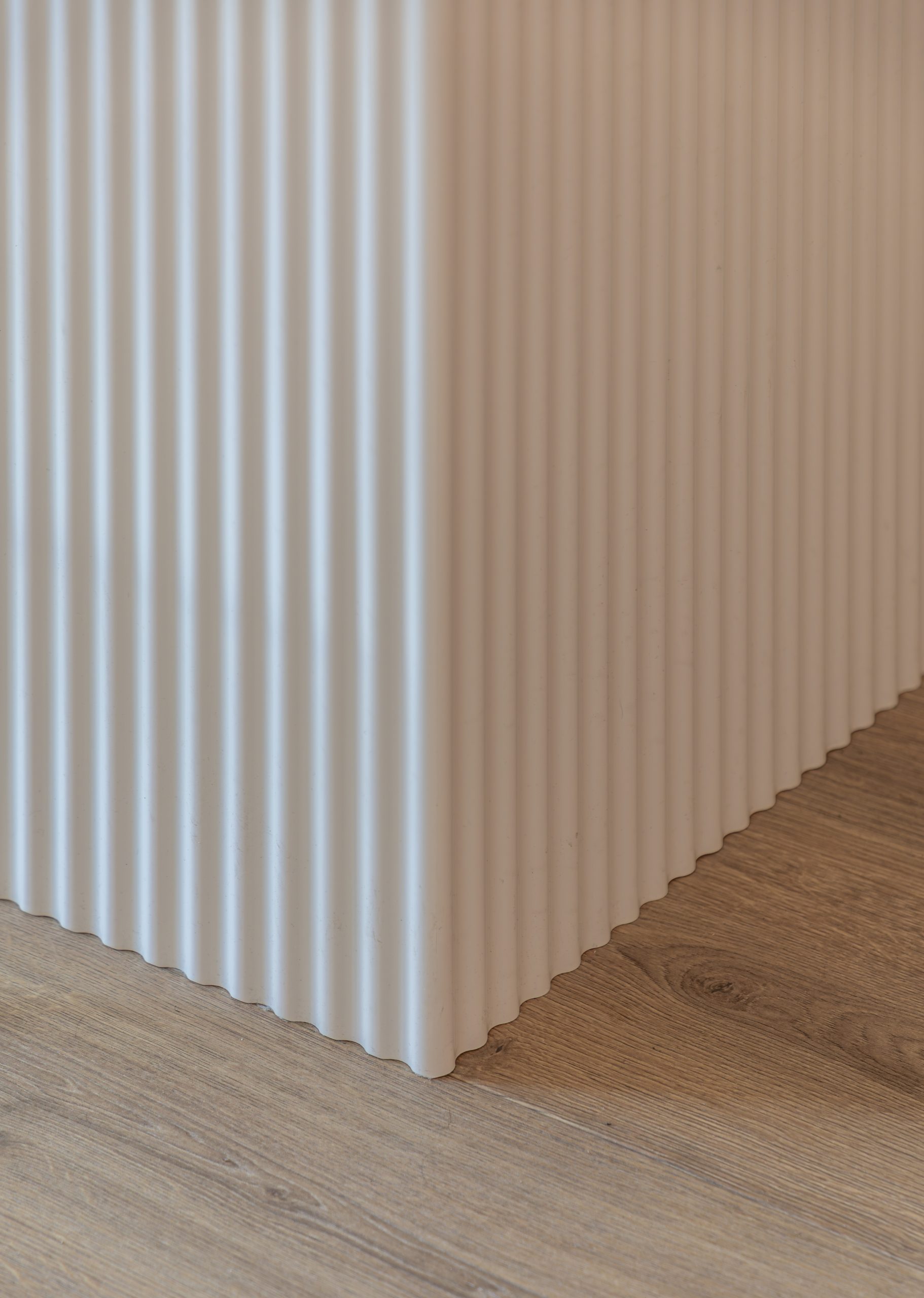

Hawaii
A playful profile, imitating the waves of Hawaii. Fancy a surf?
Customisable: Yes
Variable Width: Yes
Flexipanel option: Yes
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm

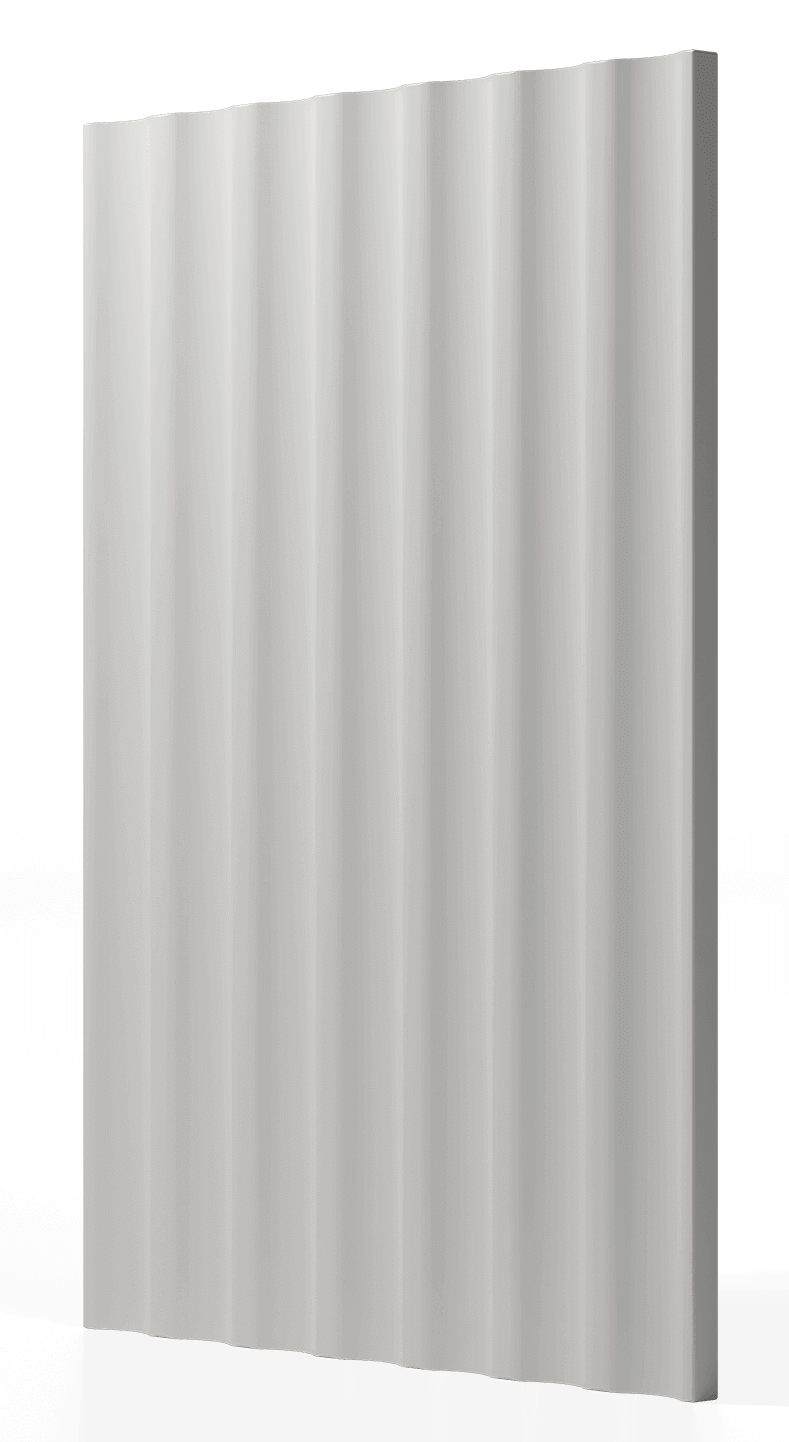

Kansas
This profile is best suited to wide, fixed panels. Not recommended for doors – Delaware or California are great alternatives!
Customisable: Yes
Variable Width: Yes
Flexipanel option: Yes
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm
Iowa
Imitating the long rows of cornfields in Iowa.
Customisable: Yes
Variable Width: Yes
Flexipanel option: Yes
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm

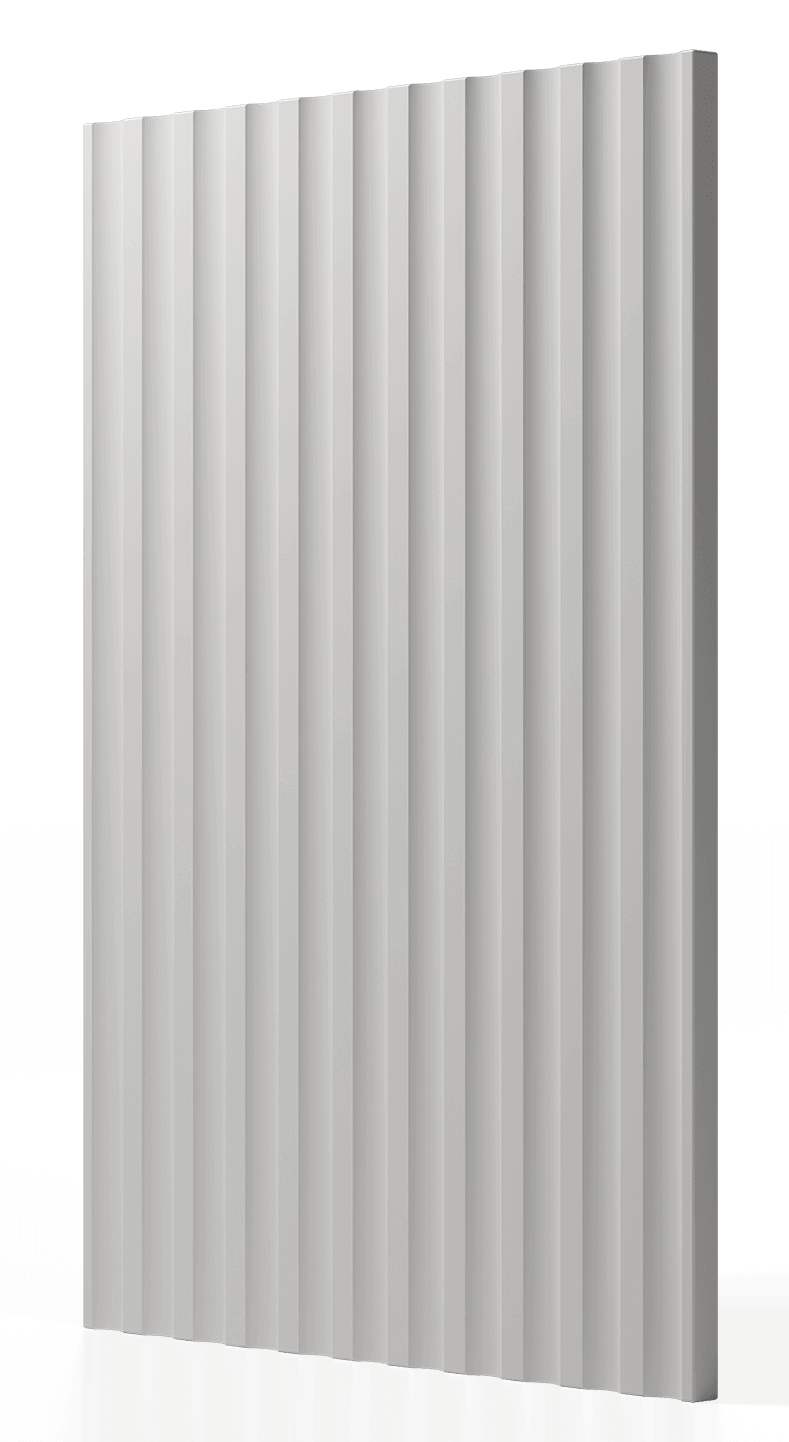

Alaska
Named in honour of the 12,000+ rivers flowing Alaska.
Customisable: Yes
Variable Width: Yes
Flexipanel option: Yes
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm

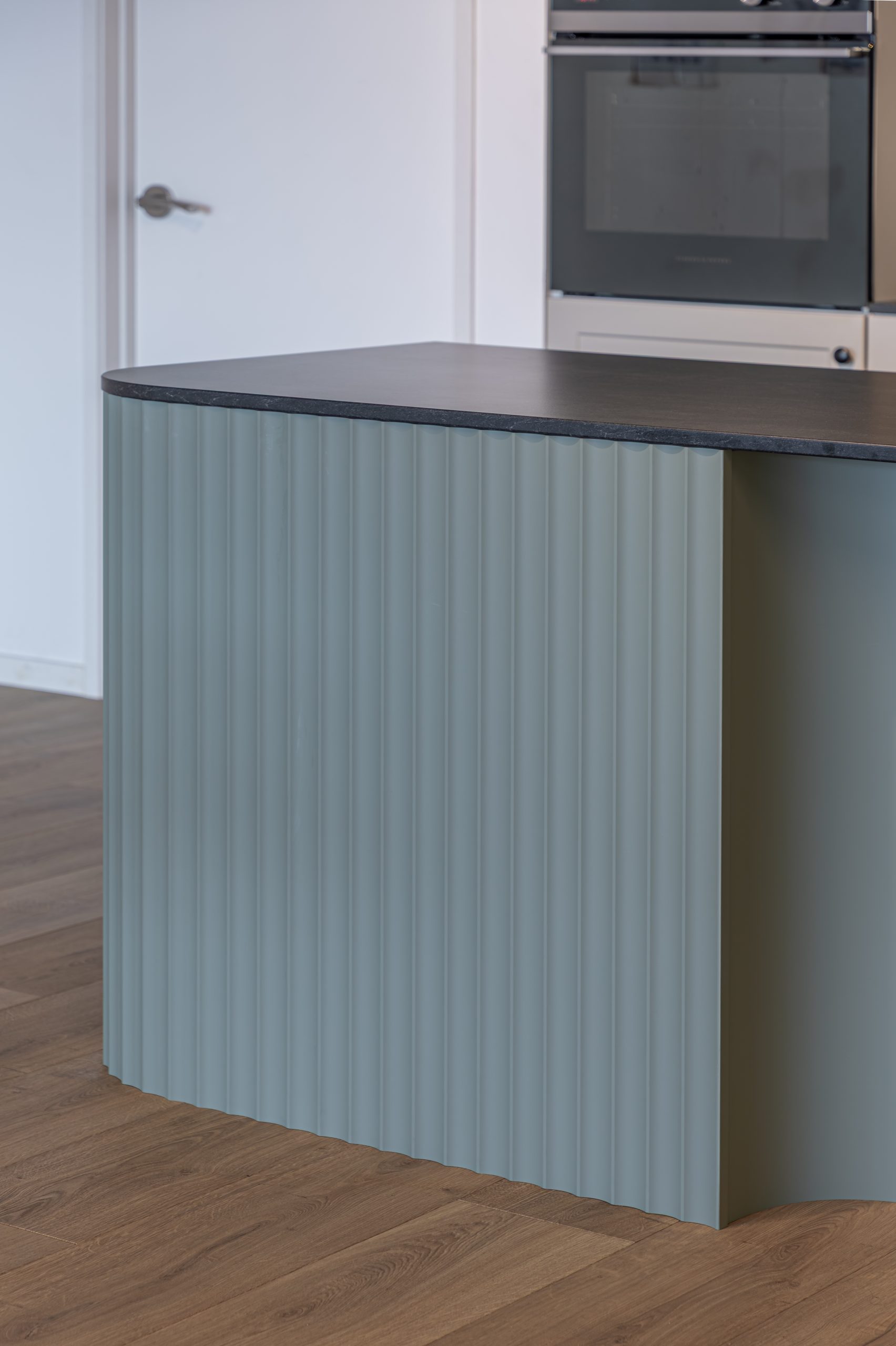

California
Reflecting the iconic silhouette of California’s Golden Gate Bridge.
Customisable: Yes
Variable Width: Yes
Flexipanel option: Yes
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm
Chicago
Mimicking the distinctive shapes of skyscrapers in Chicago, Illinois. A modern and European alternative to a traditional v-groove.
Customisable: Yes
Variable Width: Yes
Flexipanel option: Yes
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm

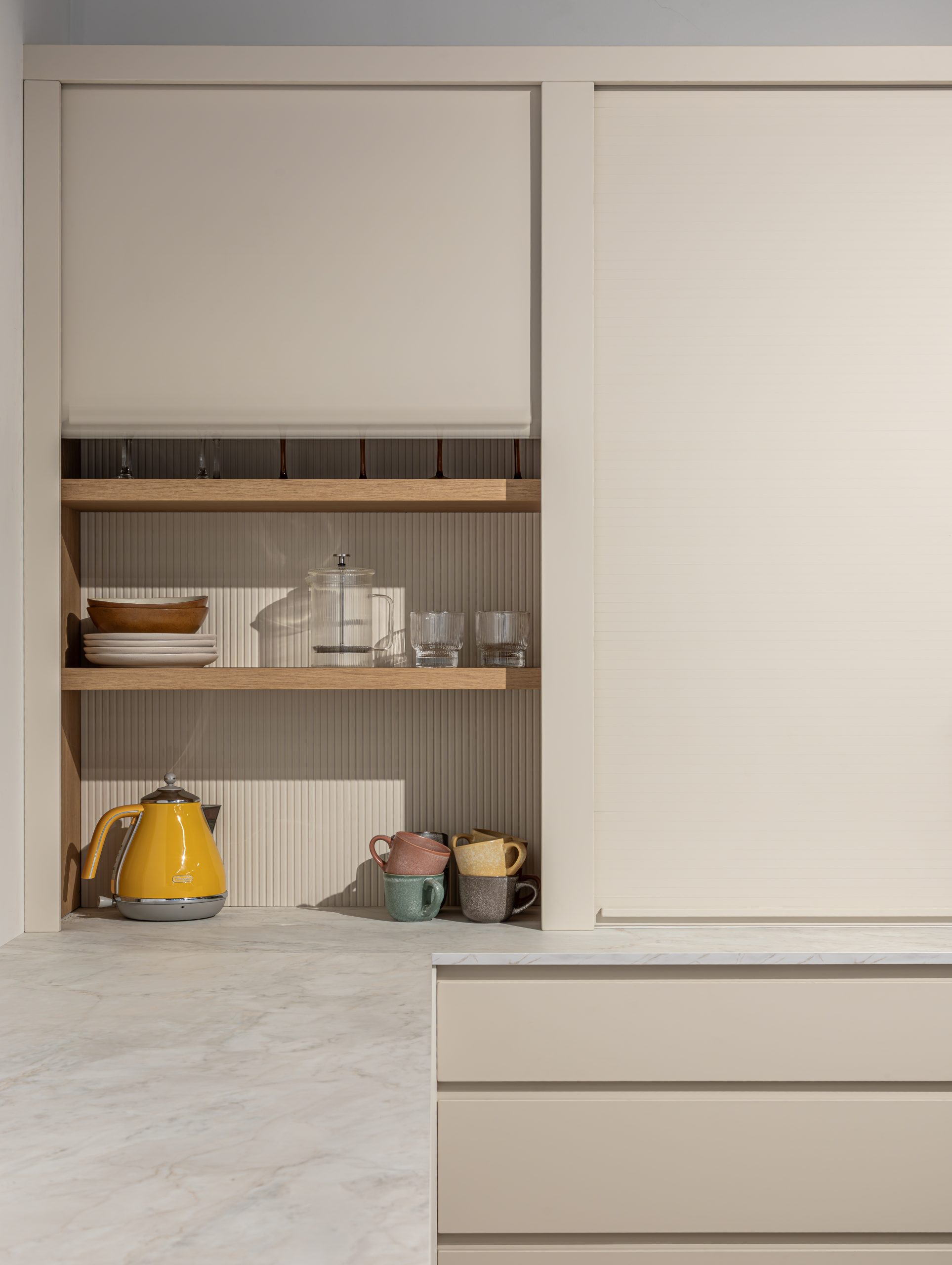

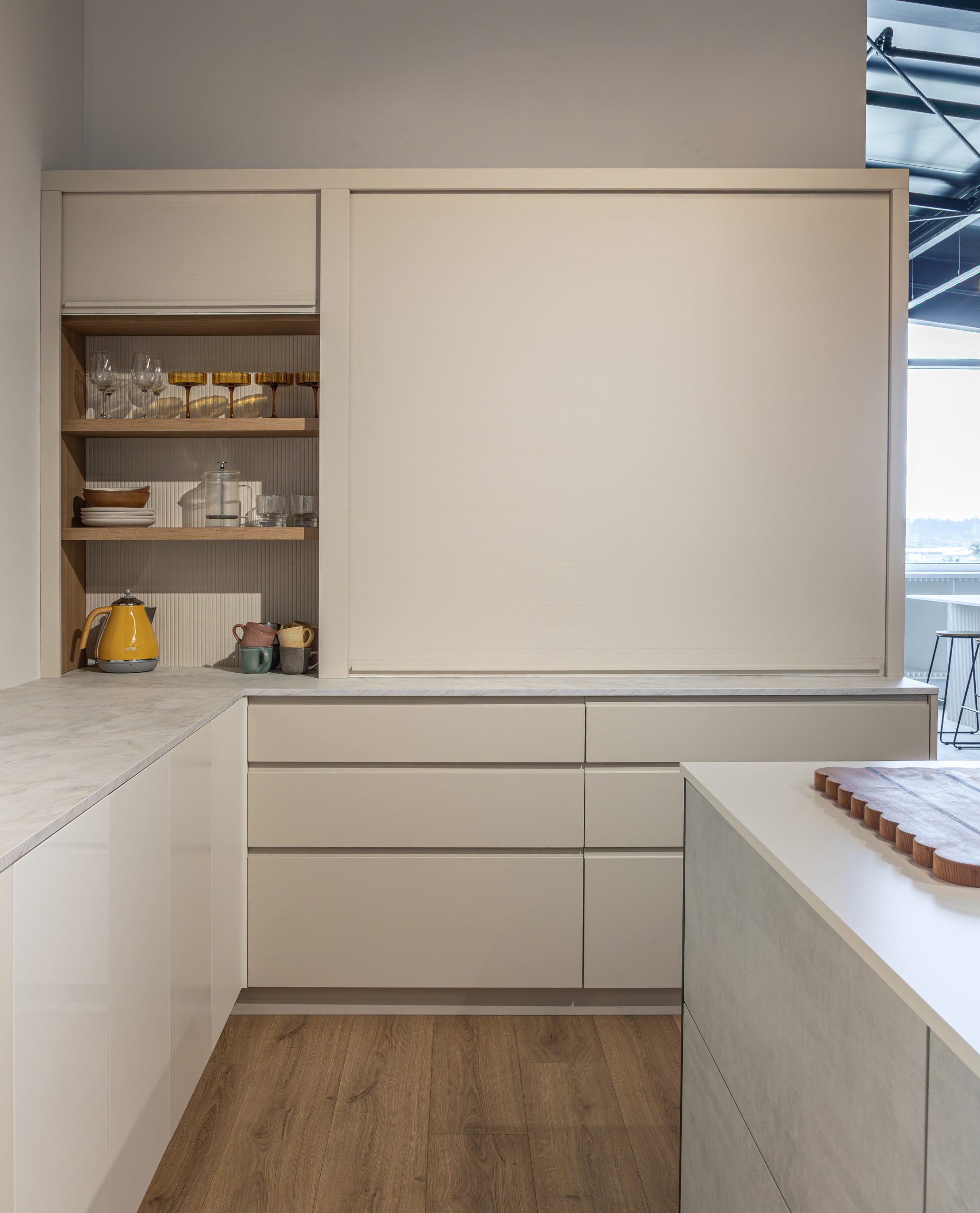

Tennessee
Customisable, narrow v-grooves with almost 10mm spacing. Classy yet classic.
Customisable: Yes
Variable Width: Yes
Flexipanel option: Yes
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm

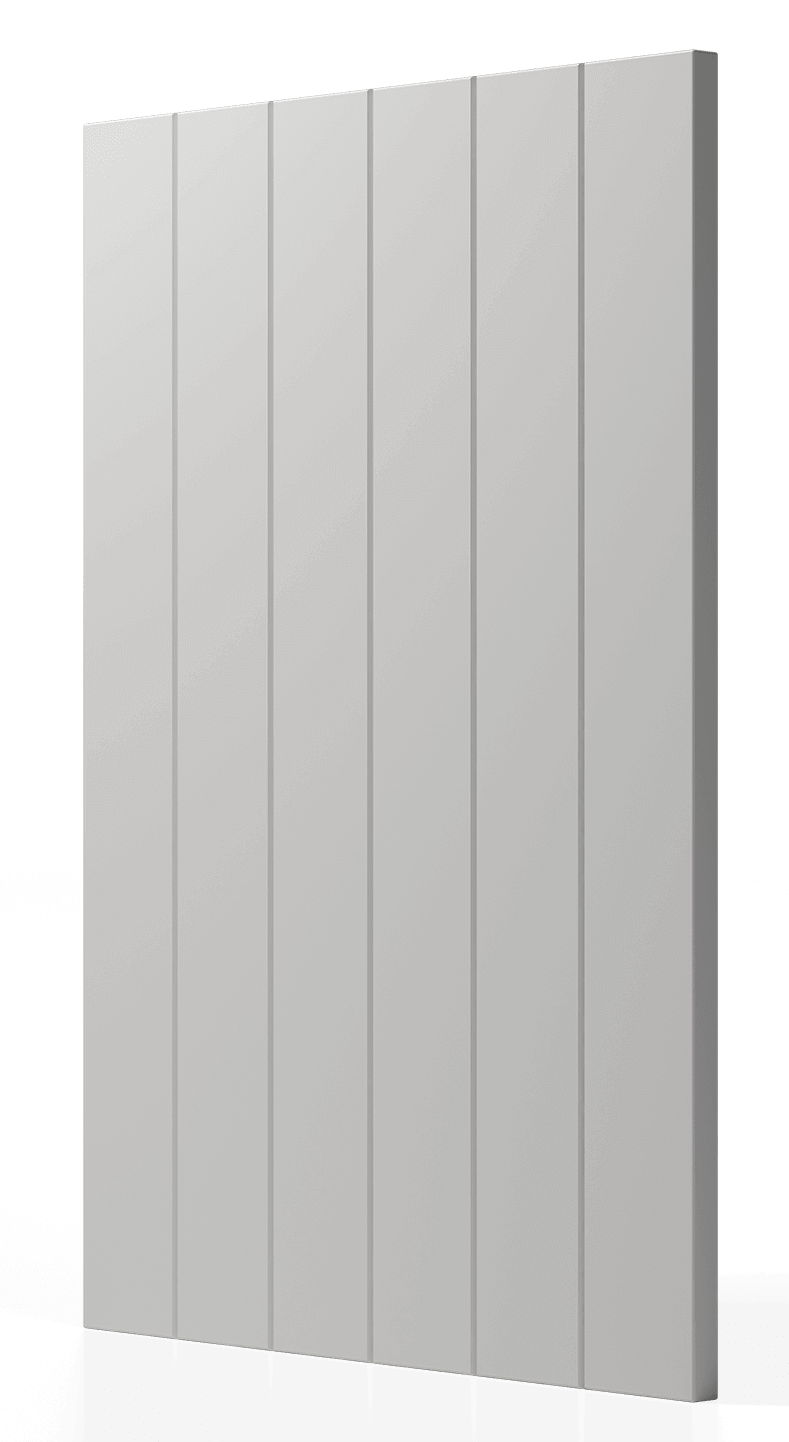

New York
If Times Square was a door profile. Featuring wide, equal-spacing v-grooves.
Customisable: Yes
Variable Width: Yes
Flexipanel option: No
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm
Montana
Traditional style v-grooves with a set width spacing.
Customisable: Yes
Variable Width: No (use New York)
Flexipanel option: Yes
Thicknesses: 18, 22m & custom
Max size:
18mm: 3100mm x 1210mm
22mm: 2775mm x 1210mm
