Special Features
All the technical stuff is what sets these doors apart, and why cabinetmakers keep coming back for more: the door profiles, edge profiles, variable width, profile customisation, and thickness options. Learn more below!
Our processes: Our 4 stage sanding process ensures your doors are sanded well. Your doors should arrive ready to send to your painter. The painter will undercoat, and then sand well before painting further. Sometimes there will be machine marks that don’t show on the raw product that show up once the undercoat has pulled up the grain, we have special tooling and our automated sanding process to avoid this as much as possible, but sometimes it is the nature of the board and unavoidable.
Styles: Optidoor profiles are available in a range of frame profiles and linear profiles.
We have wide frames, narrow frames, traditional frames & single depth frames to suit every frame need!
In our linear range, we have beads, scallops, v-grooves, waves and battens.
Edge Profiles: The edge profile plays into your overall design. In order to allow for endless options, you can choose from our edge profiles. Our most popular edge profile is 1.5mm radius – we would recommend this option for modern designs; however, if you’re after something more traditional, we’ve got you covered!
Check out page 10 of our Optidoor Brochure to see the edge profile options.
Please note: some edge profiles are not compatible with some door profiles due to physical limitations.
Door Thicknesses: Our most popular door thickness is 18mm; however, we also manufacture a lot of doors at 22mm.
22mm thick doors can be a great option to reduce bowing and give the door a little bit more support & space for your hinges.
We recommend referring to page 12 in our Optidoor Brochure for more detailed information.
If you have any questions, please contact us – we’re always happy to help & recommend what would be best suited for your particular project.
Note that narrow and/or deep frames are typically most prone to bowing slightly. This is due to the physical nature of the board & cannot be fully avoided. We can help guide you through the process to choose your profile and door thickness and sizes best suited to your design.
Door sizes: Our 18mm profiles are available up to 3650mm long. Our 22mm option is available up to 2775mm long.

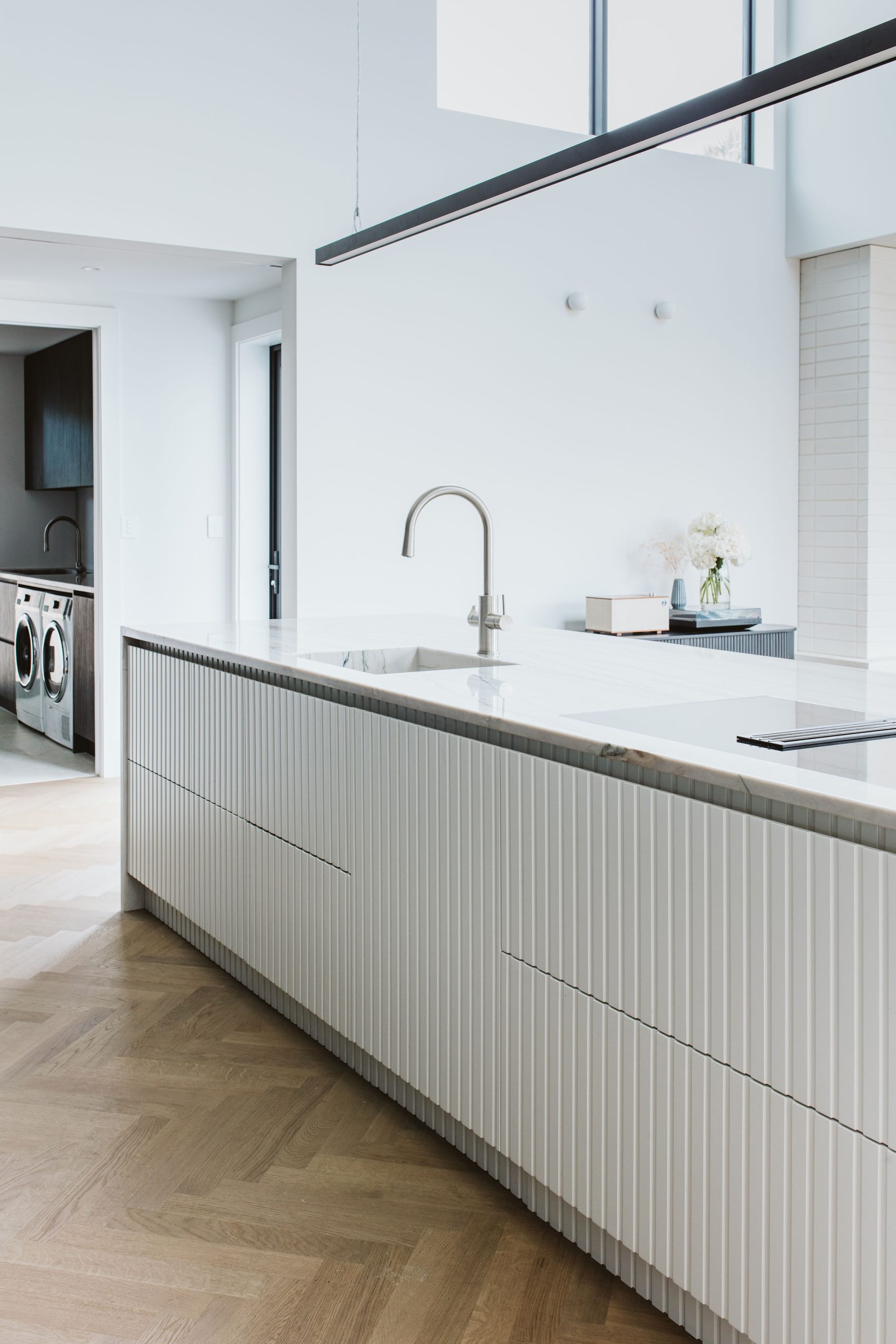

Flexipanel: Most of our linear profiles are available as as a Flexipanel, suitable for using on curves, to match your doors! These are suitable for a 200mm radius or larger.
Profile Range

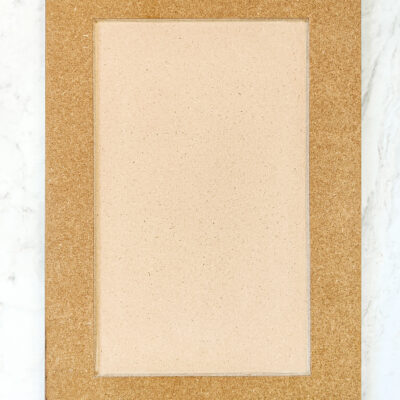

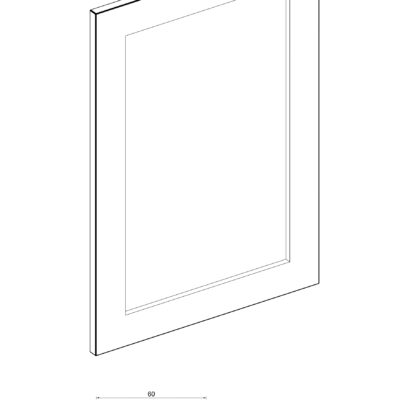

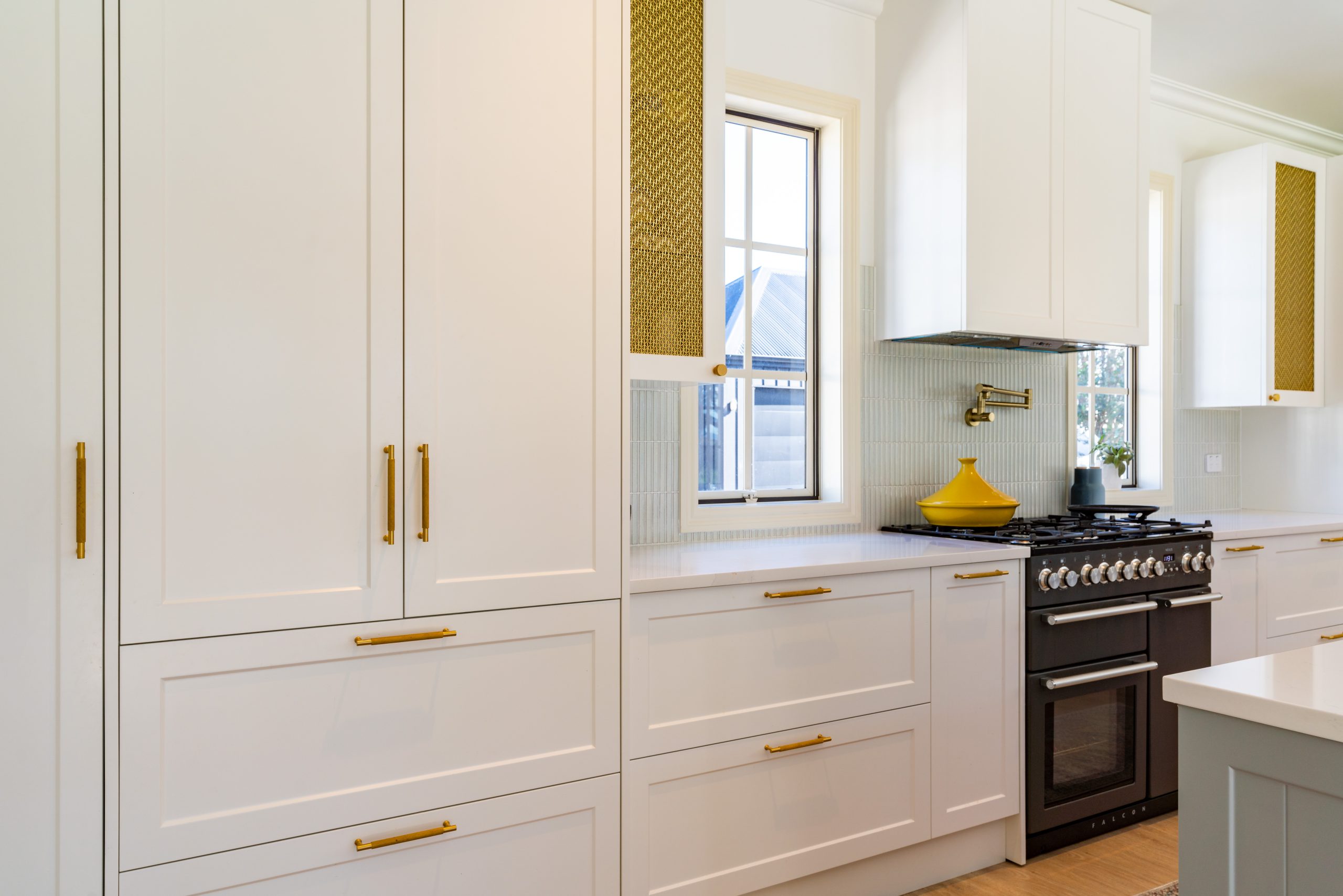

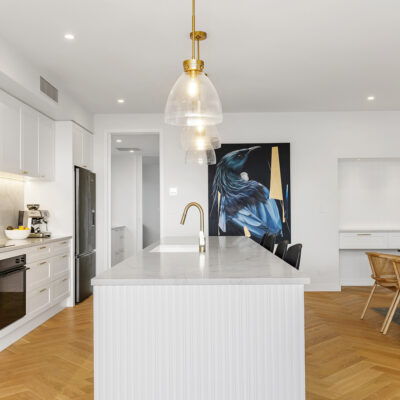

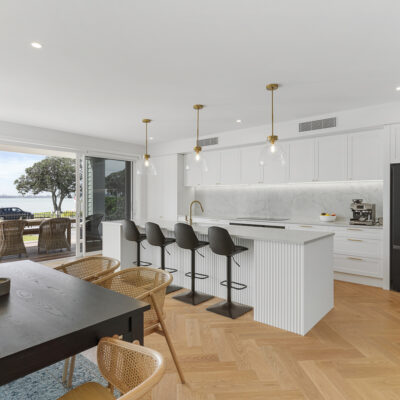

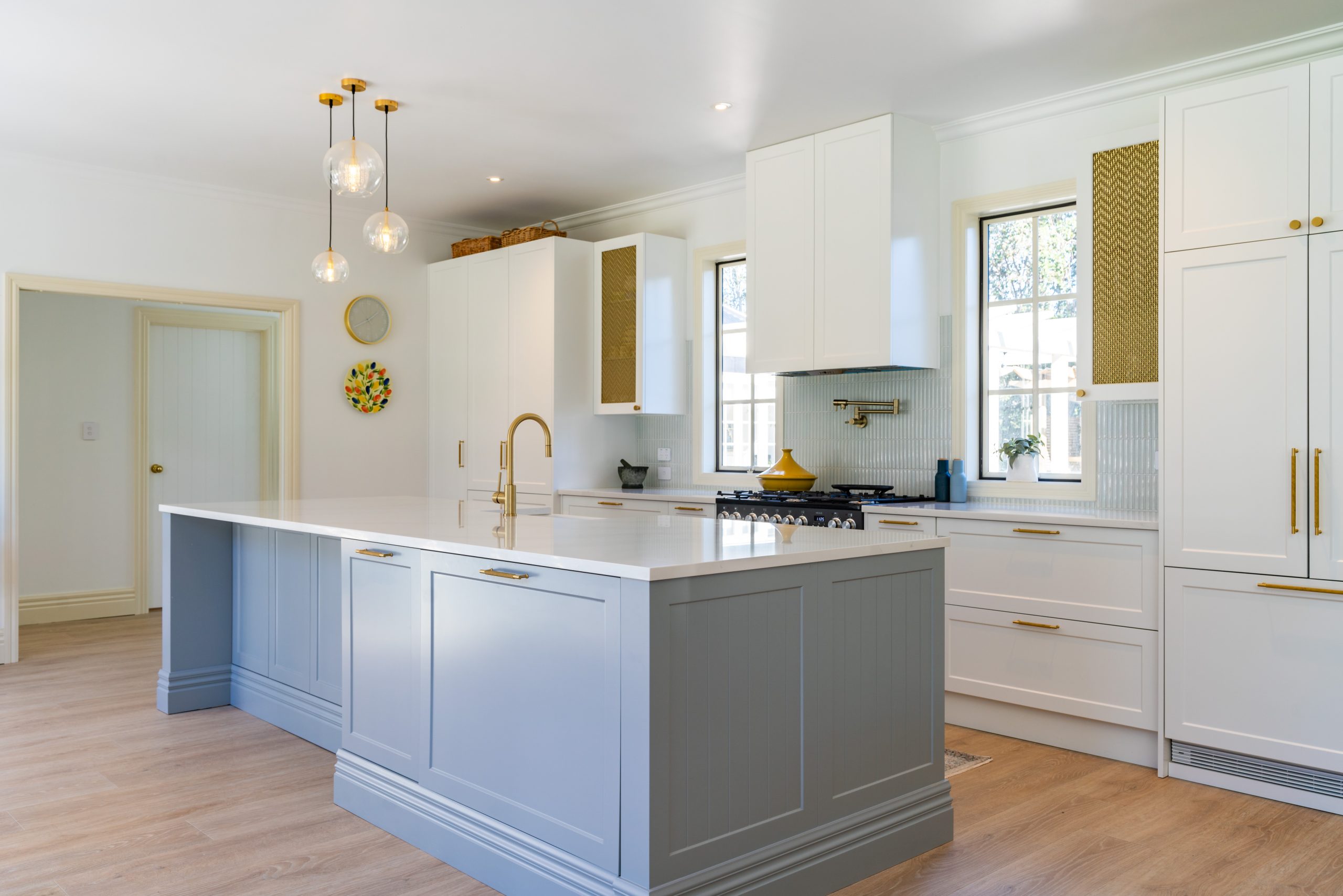

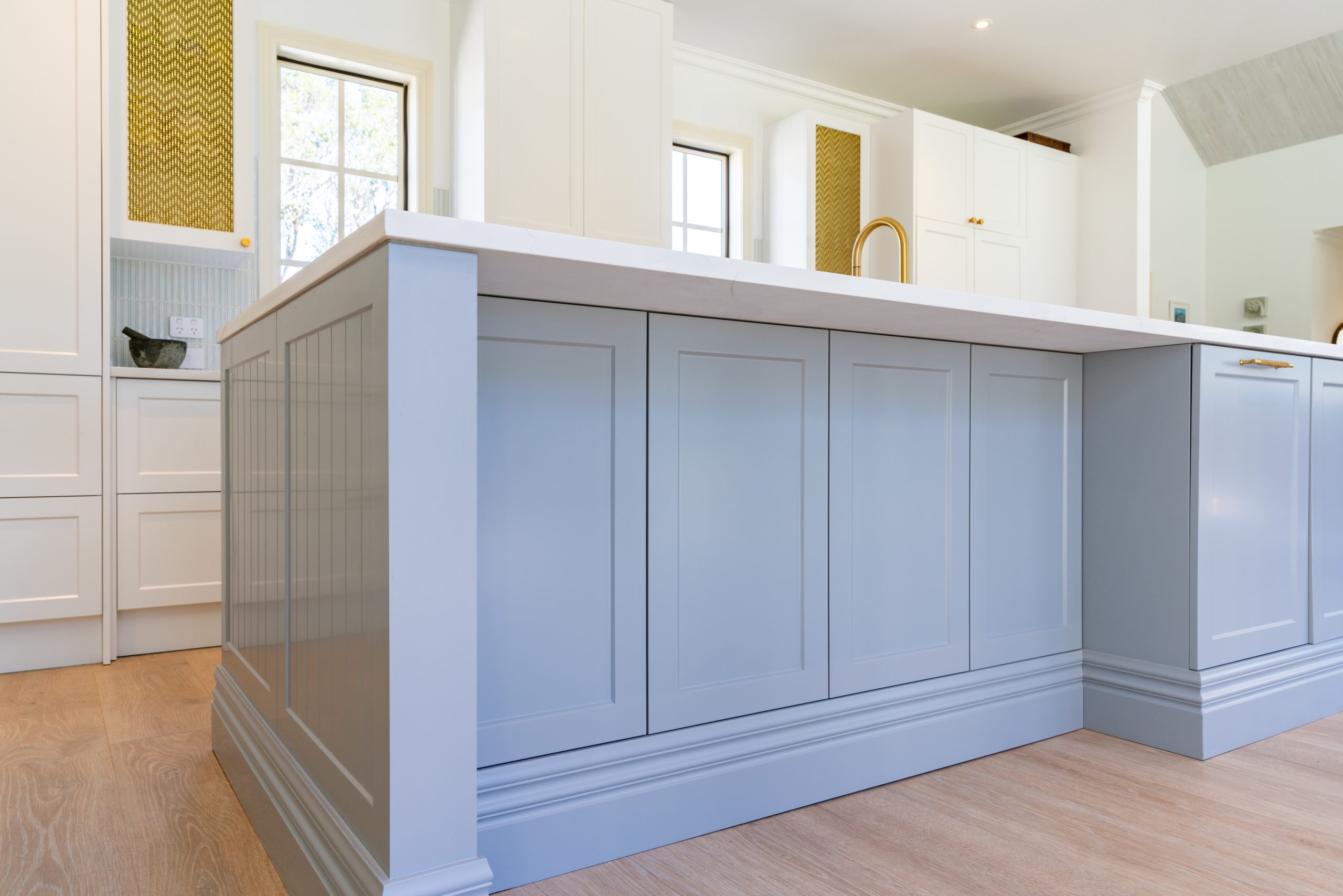

Florida
Our most popular shaker-style frame profile.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

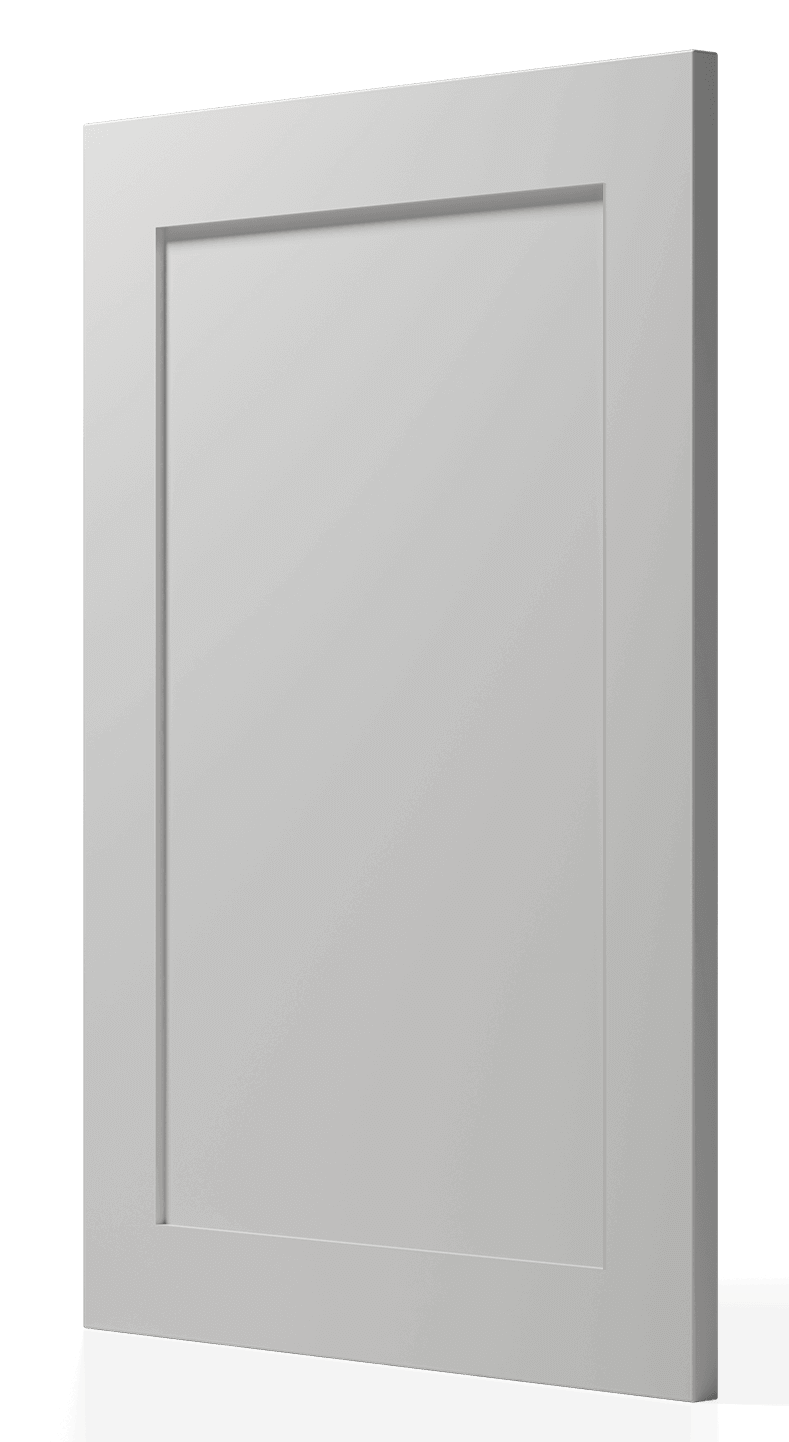

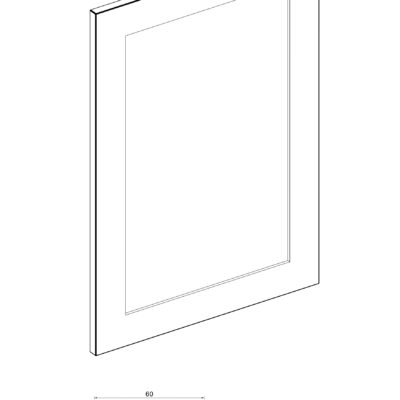

Oregon
Like Florida, but with a traditional square frame.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

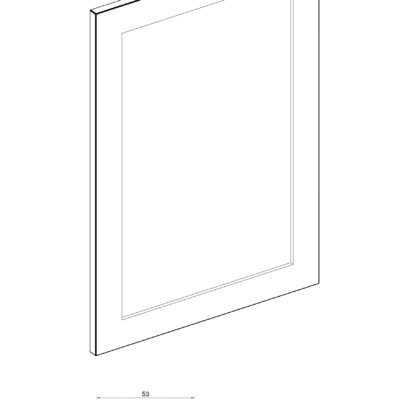

Rhode Island
A balanced blend of Florida’s style and Utah’s practicality. Similar to Opticoat Alabama.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

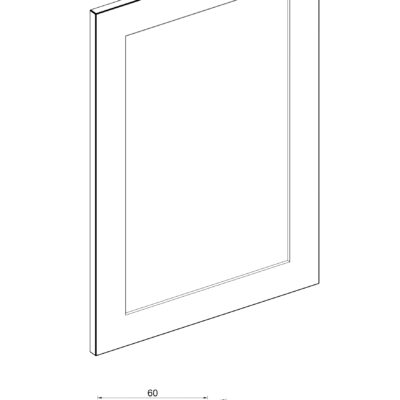

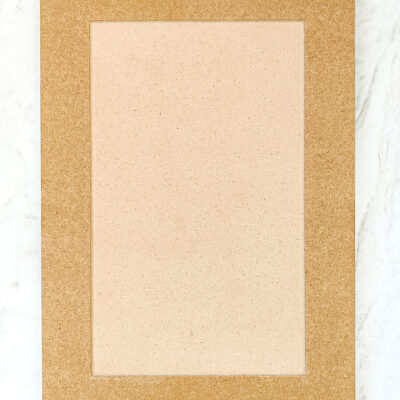

Utah
A shallower shaker-style frame for easy cleaning. This profile is one of our most popular, for a good reason!
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm
Georgia
A cute bead frame with a fun retro twist.
Note: this profile is prone to bowing due to the narrow frame width.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

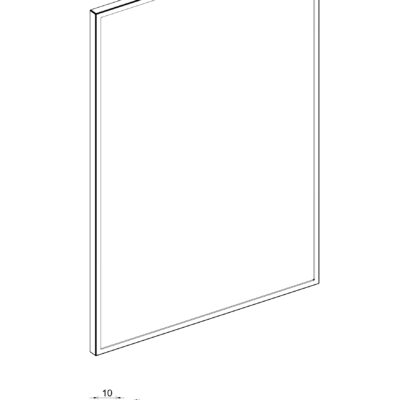

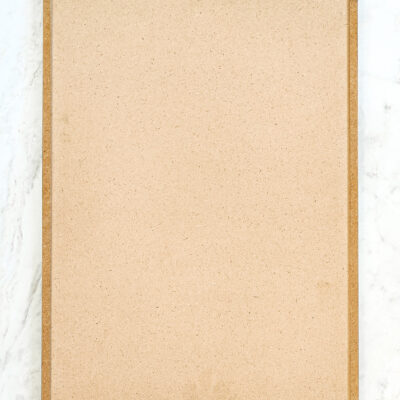

Louisiana
Subtle and sophisticated for a minimalist look.
Note: profile is prone to bowing due to narrow frame width.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

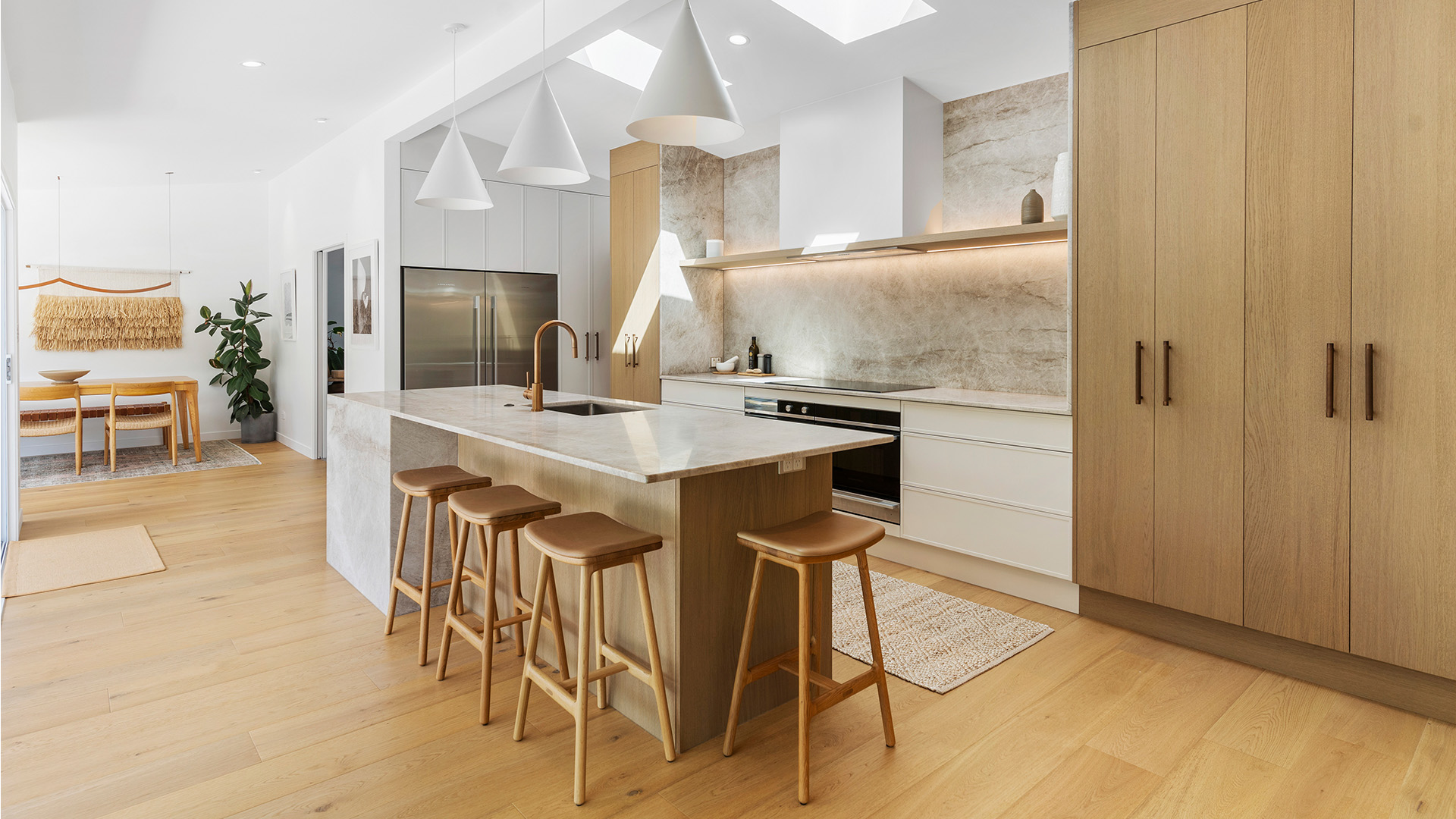

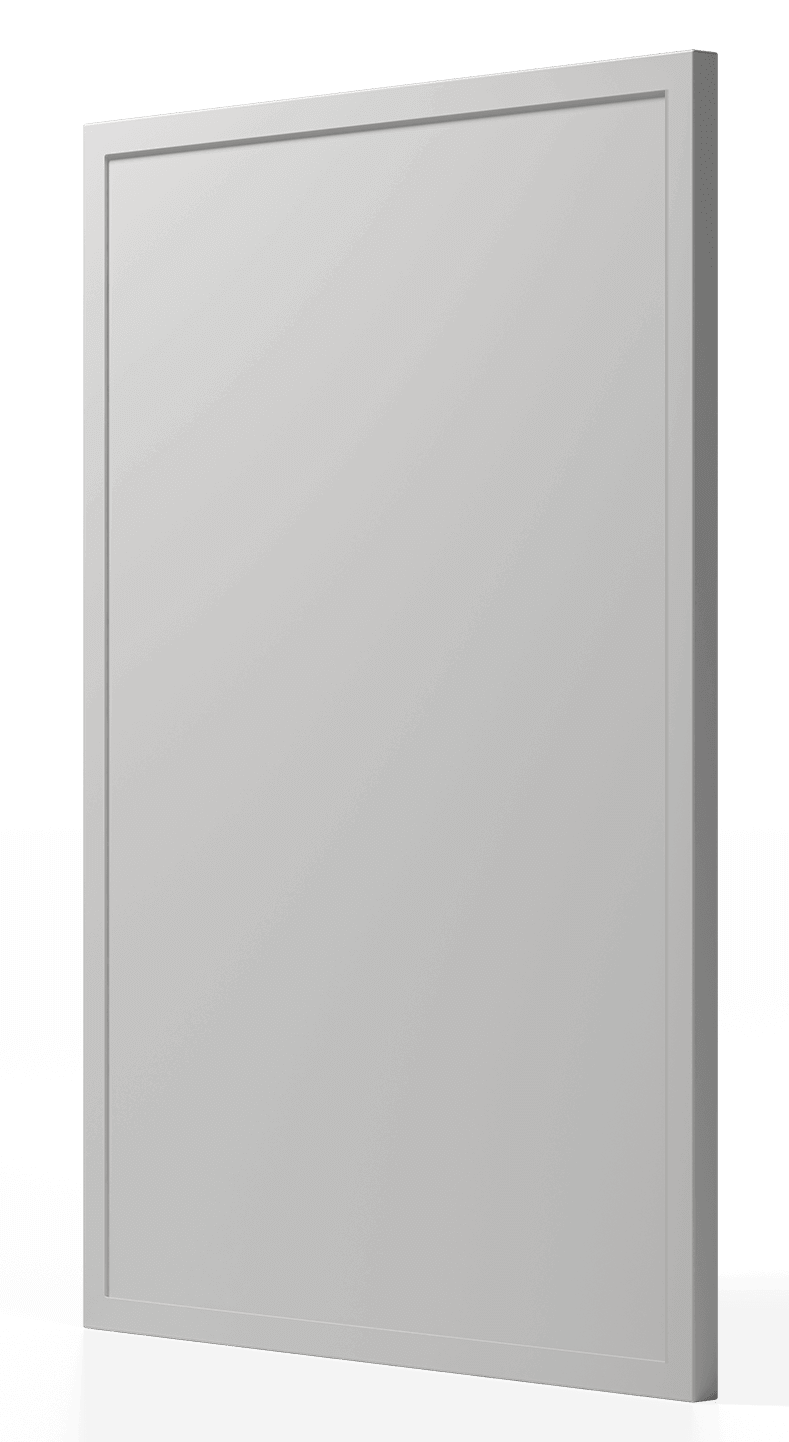

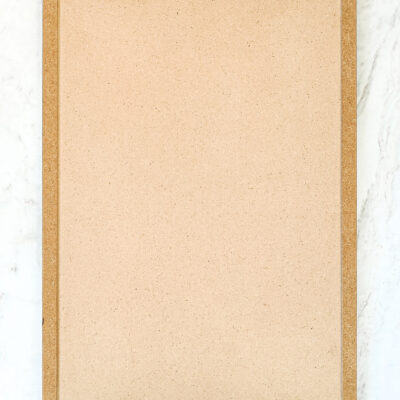

Maryland
Our most popular narrow frame, elegant yet simple.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm
Annapolis
Similar to Maryland, but with an angled internal edge. Similar to Opticoat Baltimore.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm
North Carolina
A deeper profile, with increased risk of bowing. We recommend Maryland.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

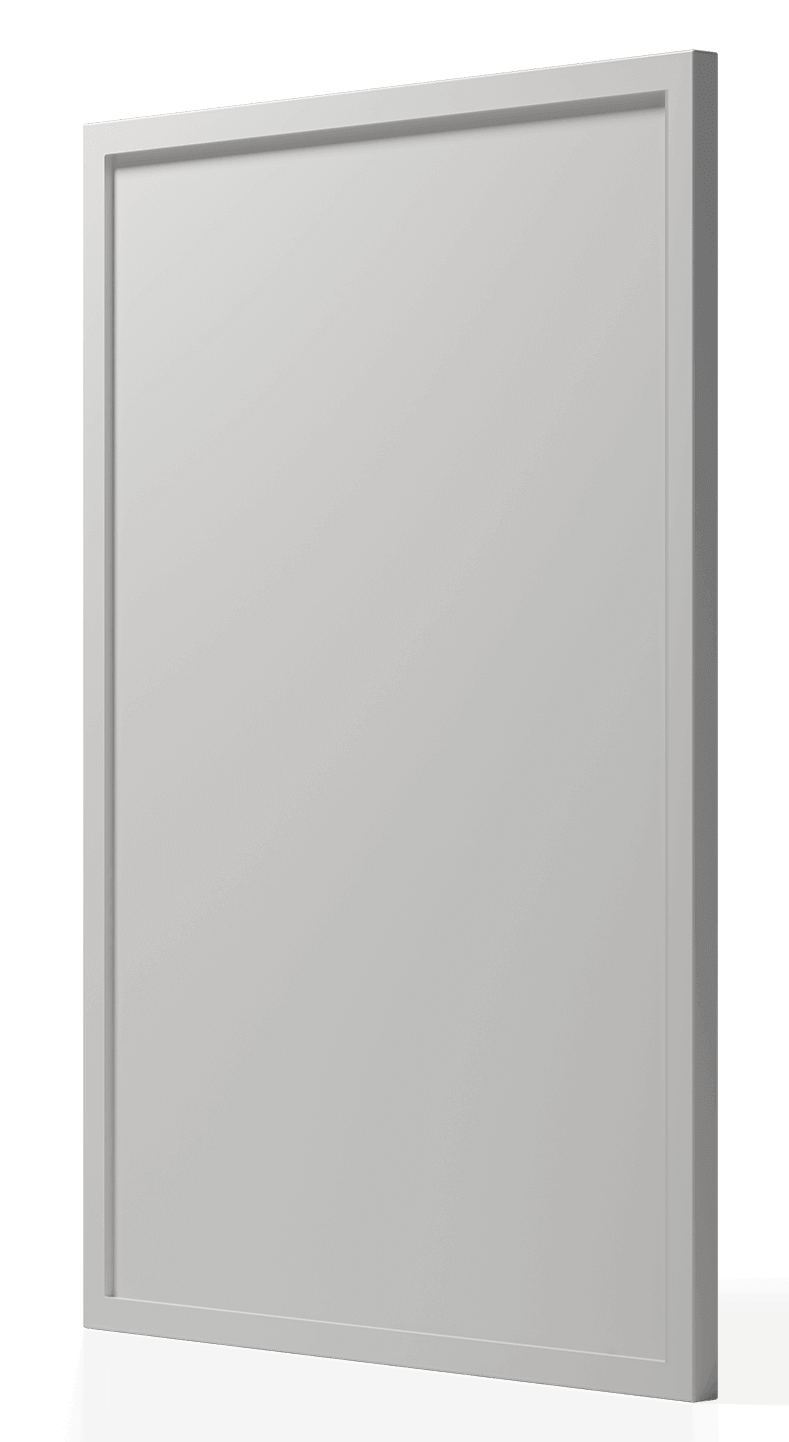

Carolina
A very deep profile – we recommend Maryland to reduce bowing and for easier hinge drilling.
This profile is very prone to bowing.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

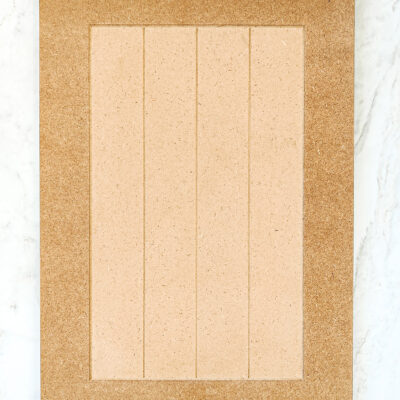

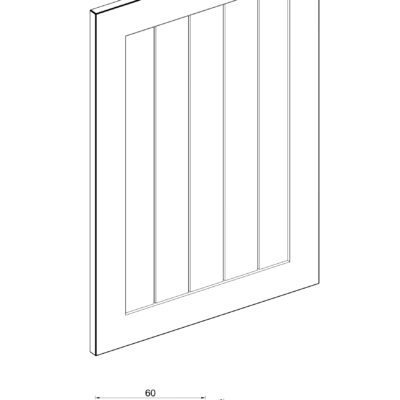

Washington
Similar to Utah, but with traditional v-grooves inside the frame.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

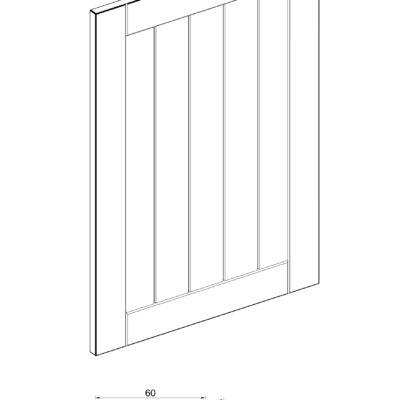

Dakota
Like Washington, but with v-grooves on the frame to imitate a 5-piece door.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

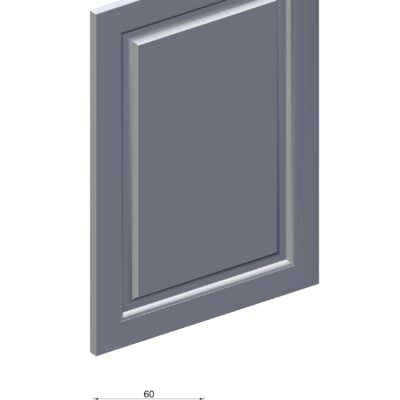

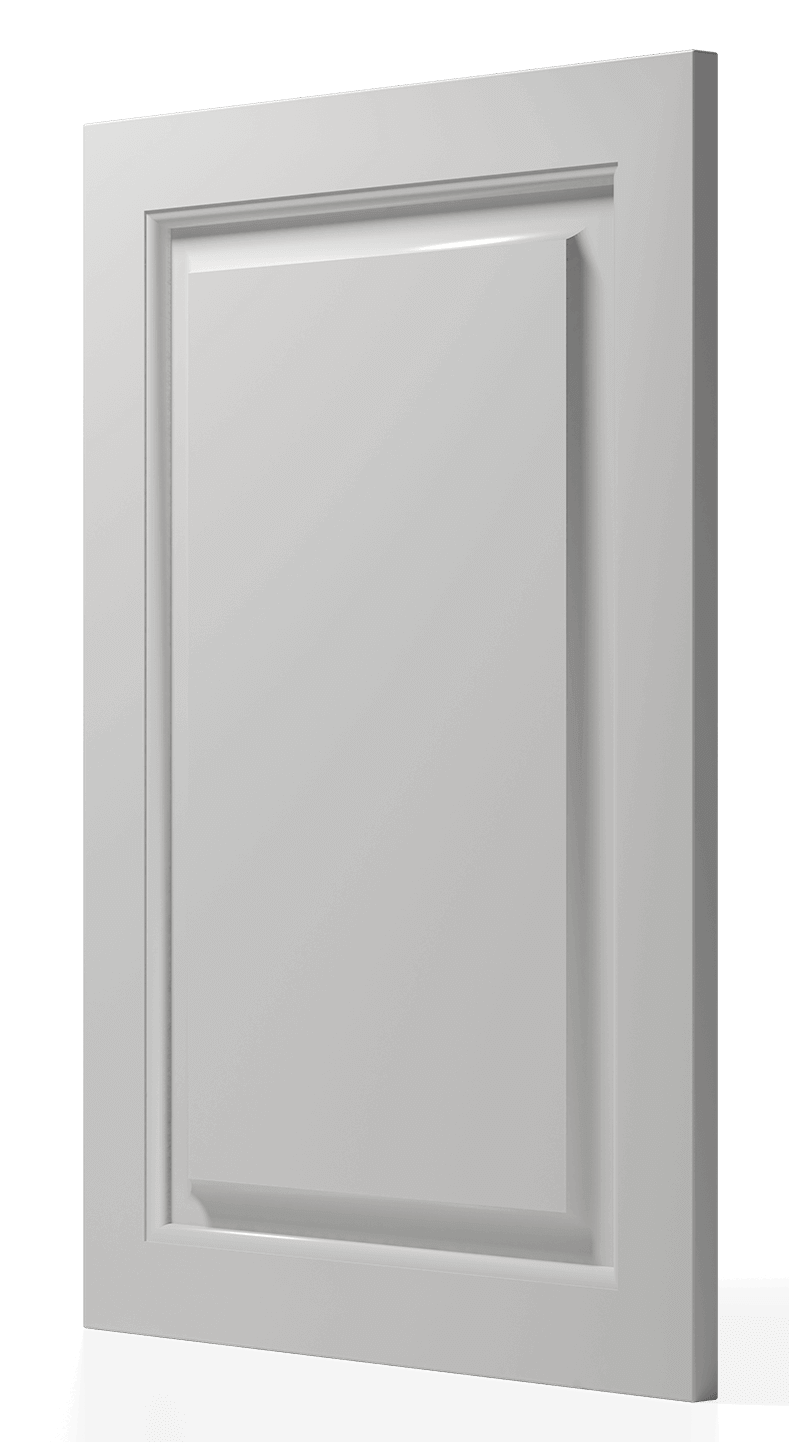

Arizona
Bold and timeless, inspired by the Grand Canyon.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm
Sedona
Bold and timeless, inspired by the Oak Creek Canyon in Sedona.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

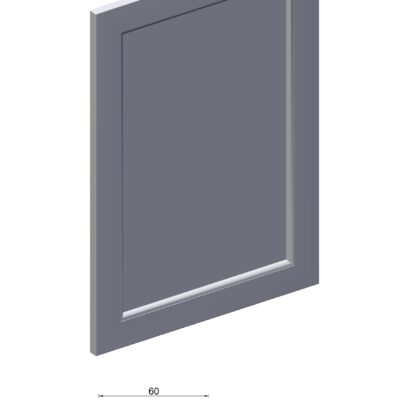

Michigan
Deep and traditional, like Lake Michigan.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

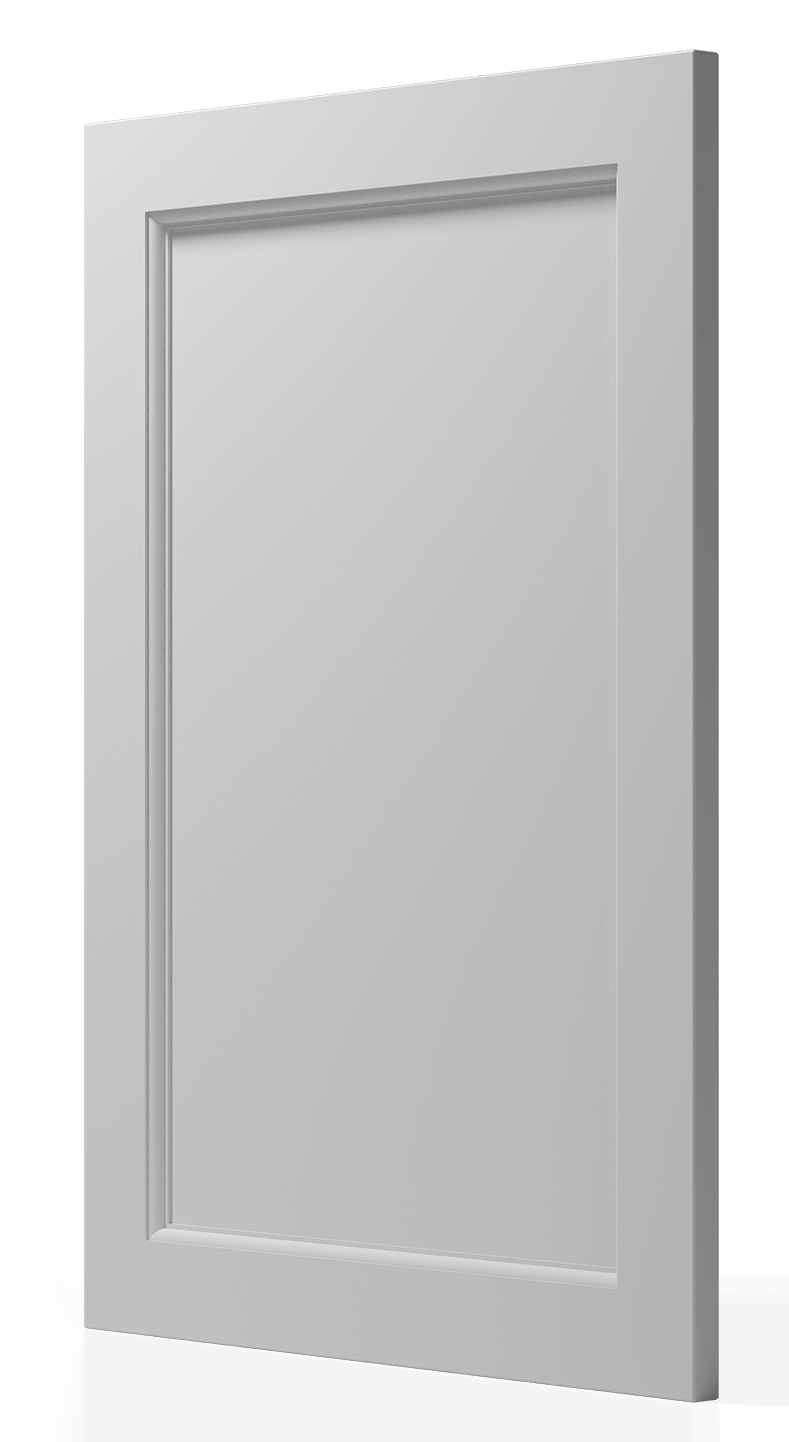

Detroit
Deep and traditional, like the Great Lakes.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

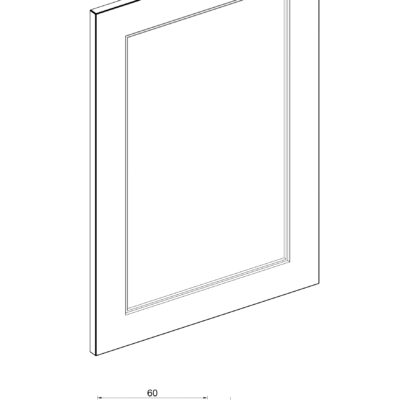

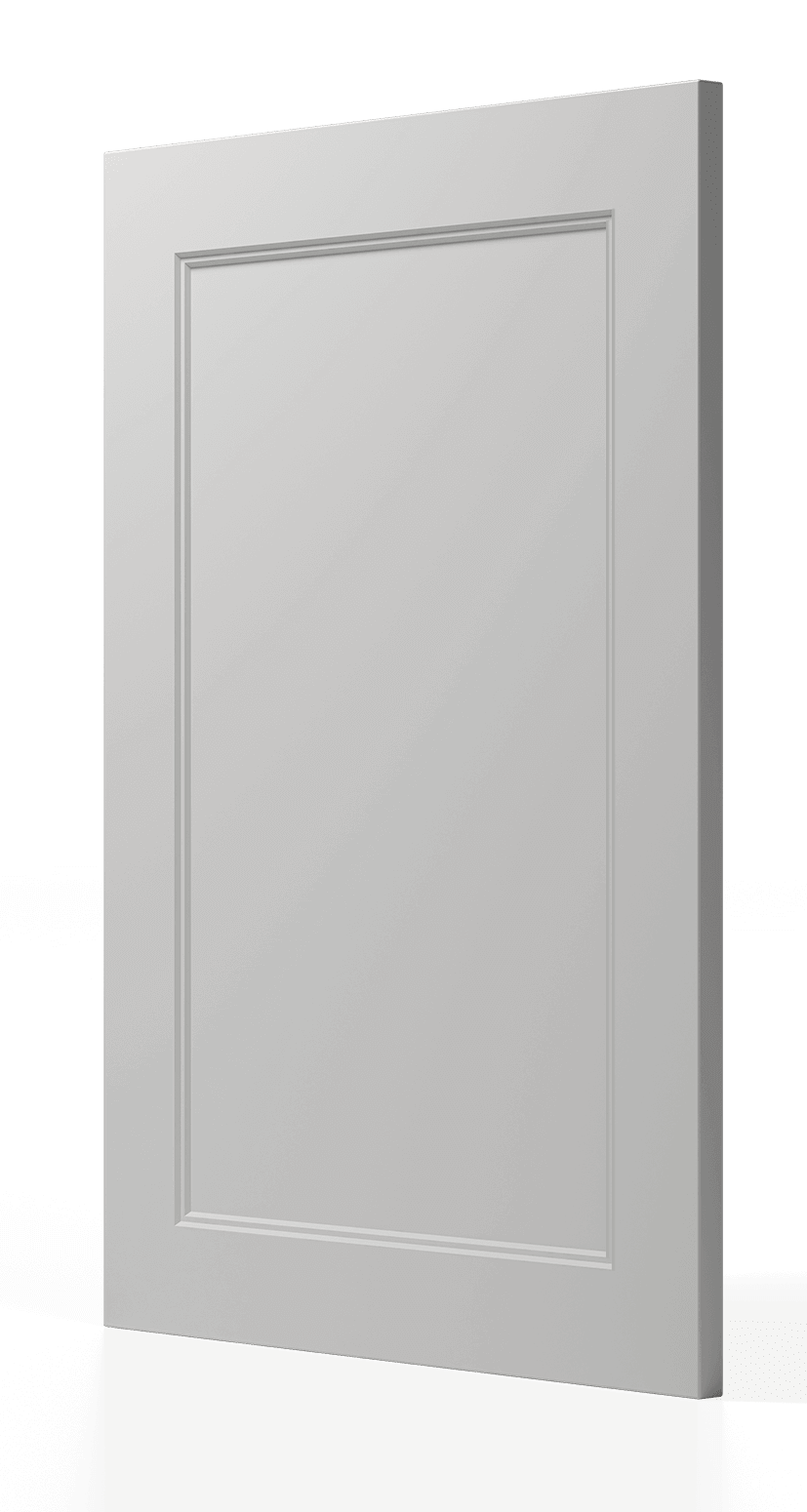

Minnesota
Featuring a mini double frame for a modern twist on the traditional.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

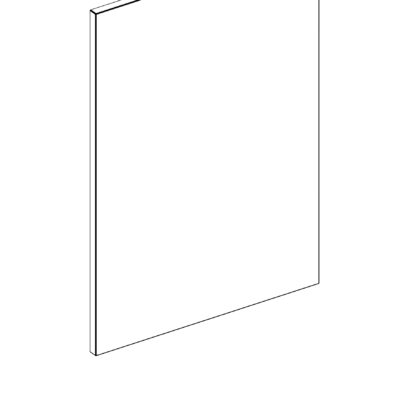

Texas
Keeping things timeless, Texas is ideal for end panels or flat doors.
Customisable: Yes (edge profiles)
Flexipanel option: No (well, unless you’re desperate…)
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

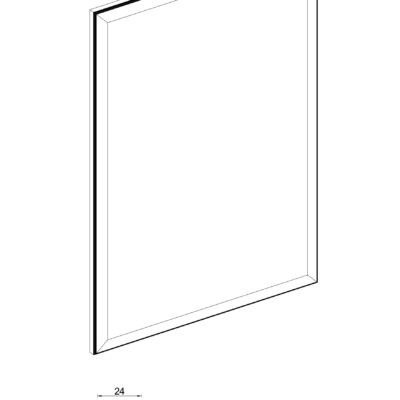

Colorado
With a chamfered edge for a smooth, softened look.
Customisable: No
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

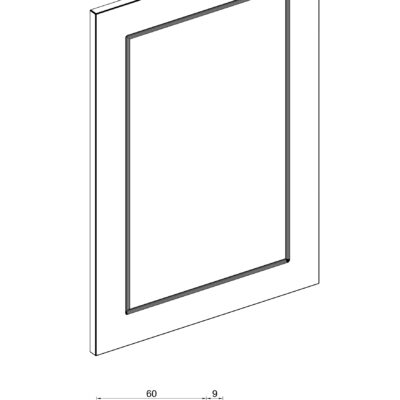

Mississippi
A simple fluted frame.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

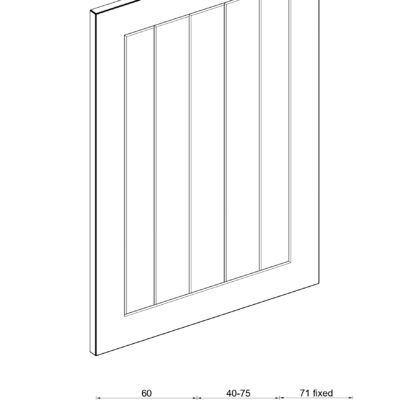

Oklahoma
Similar to Washington but without a recessed frame.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

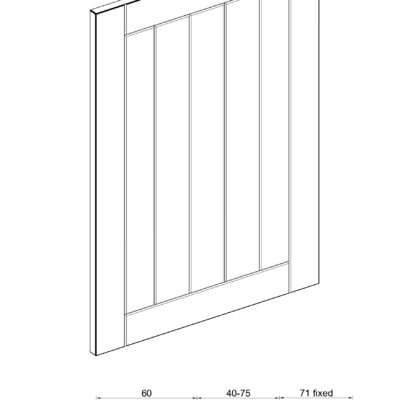

Wisconsin
Similar to Dakota, but without a recessed frame.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

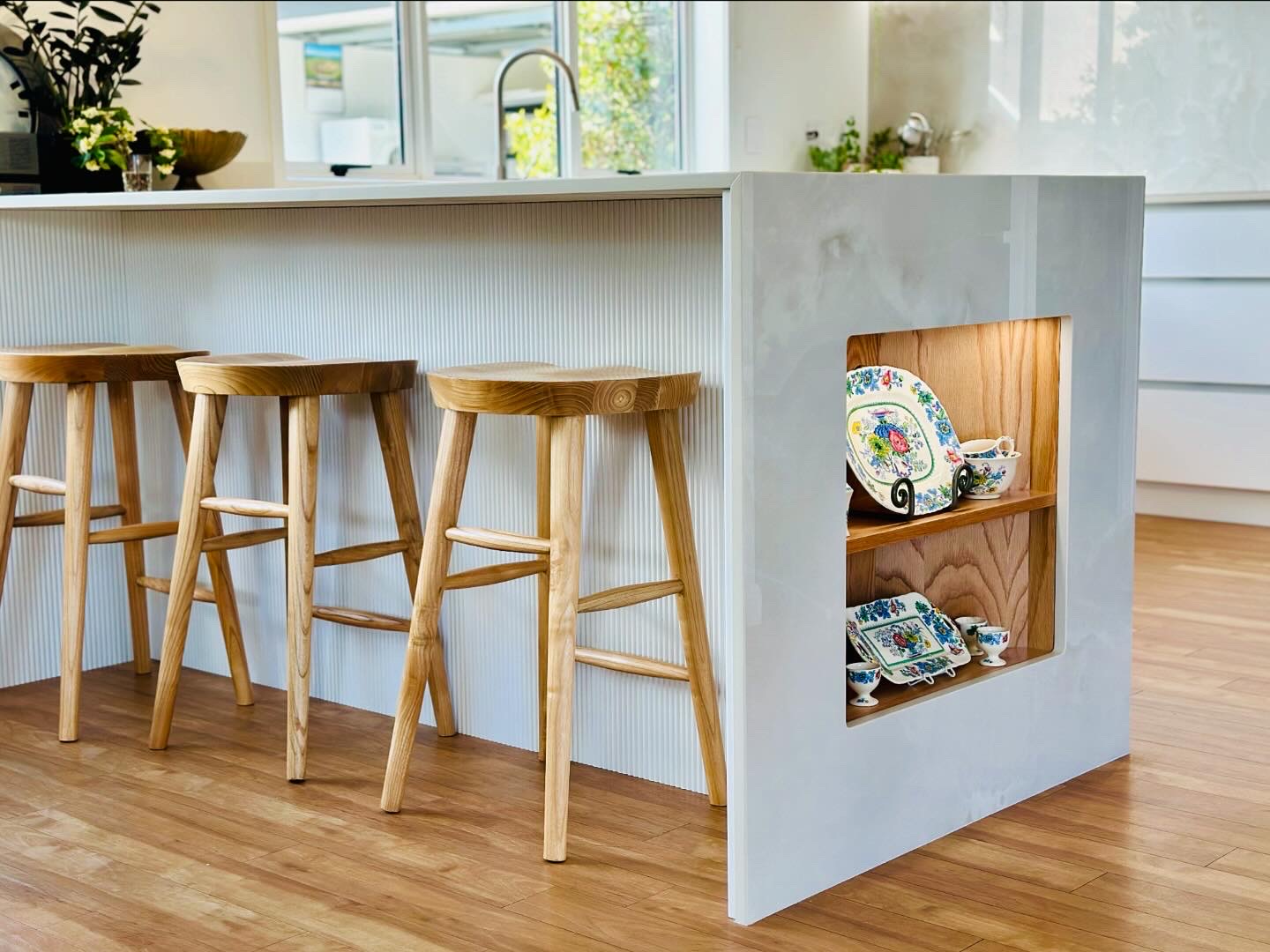

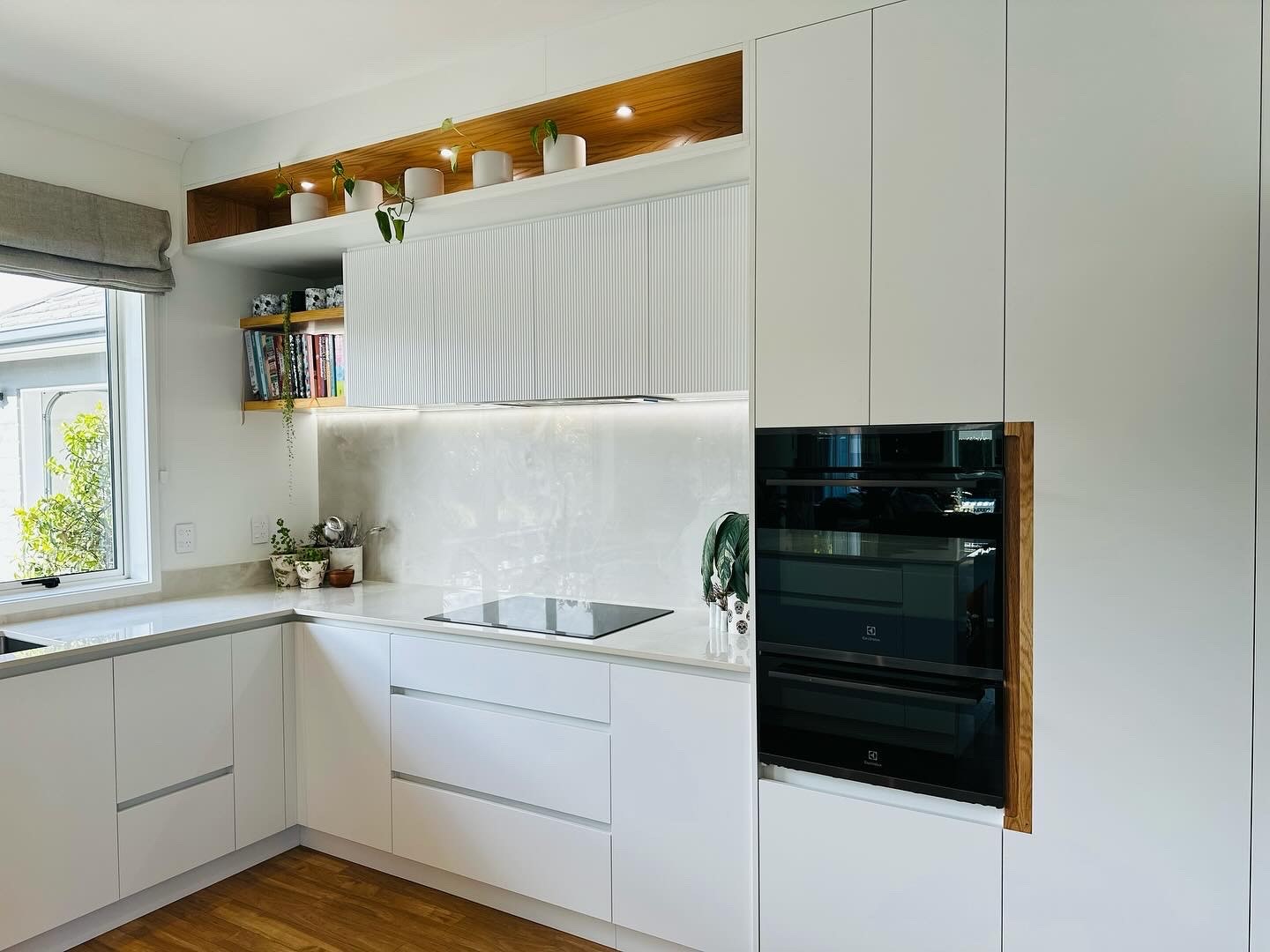

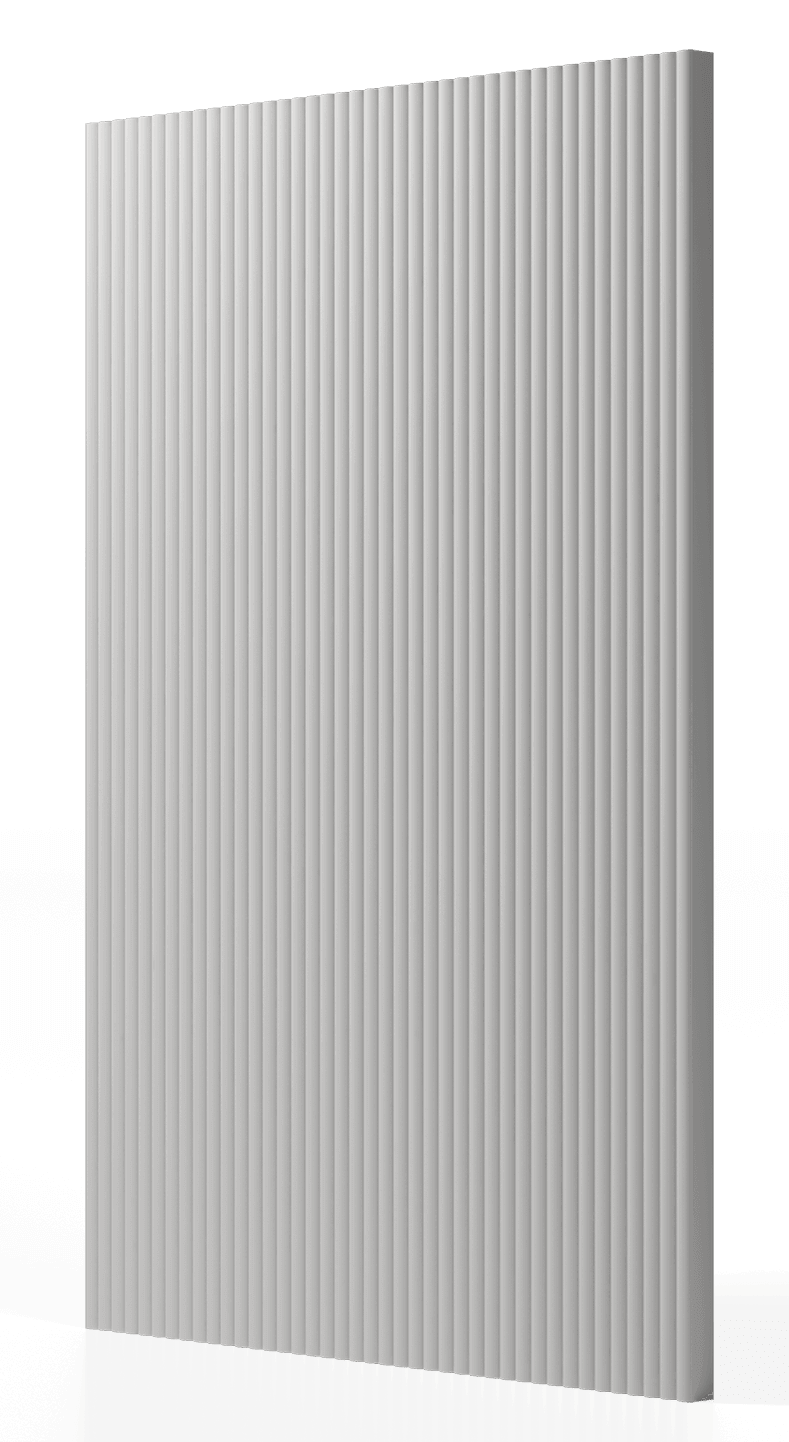

Pennsylvania
A mini bead that matches well with the Georgia frame.
Customisable: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

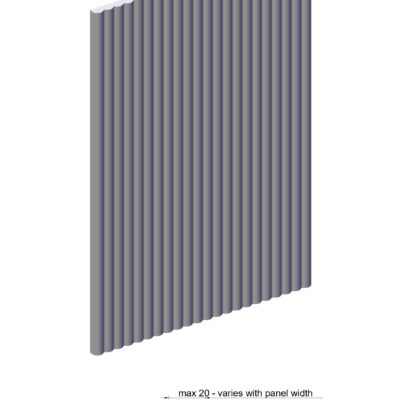

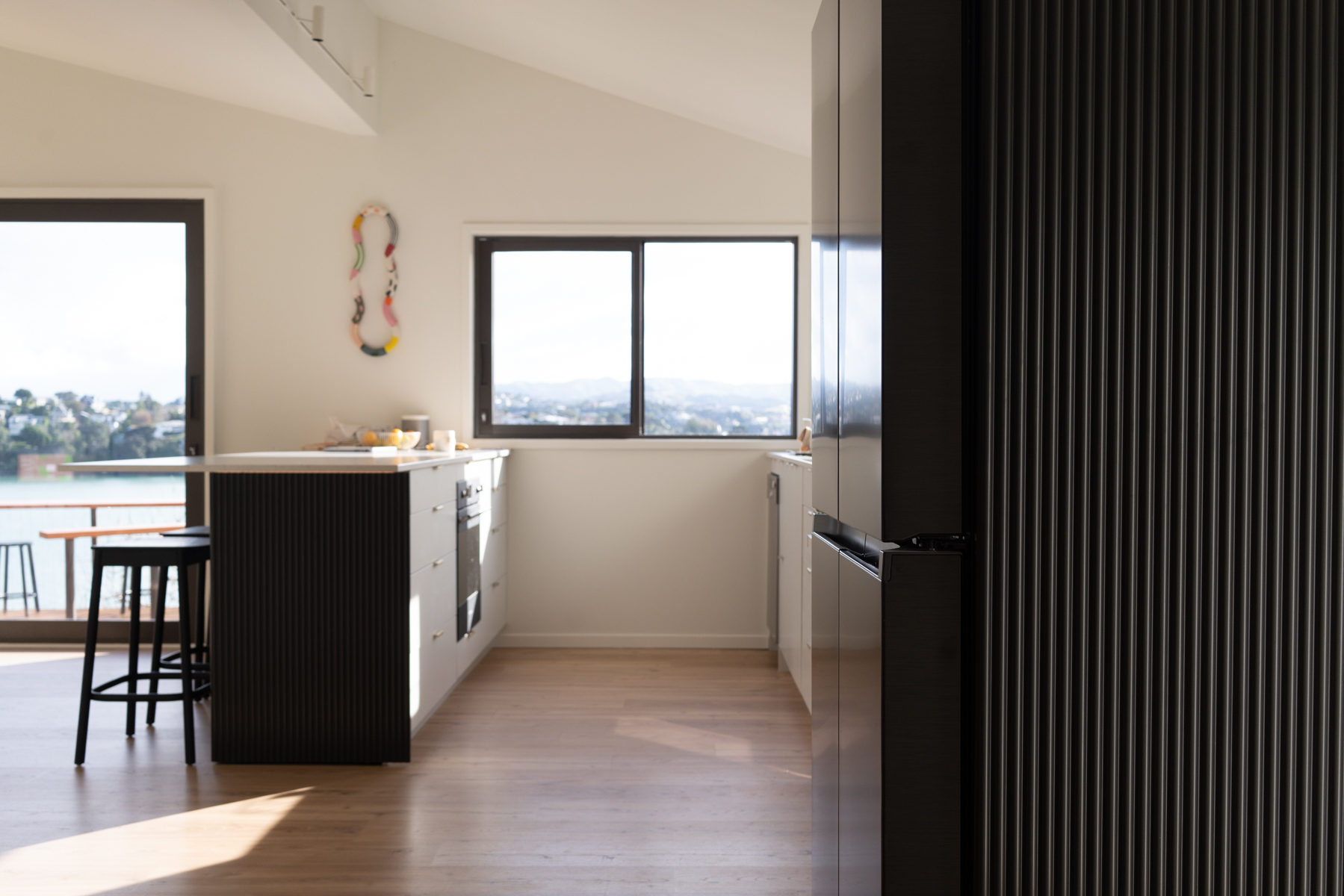

Missouri
A classic bead, imitating the Gateway Arch in Missouri.
Customisable: Yes
Variable Width: Yes
Flexipanel option: Yes
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

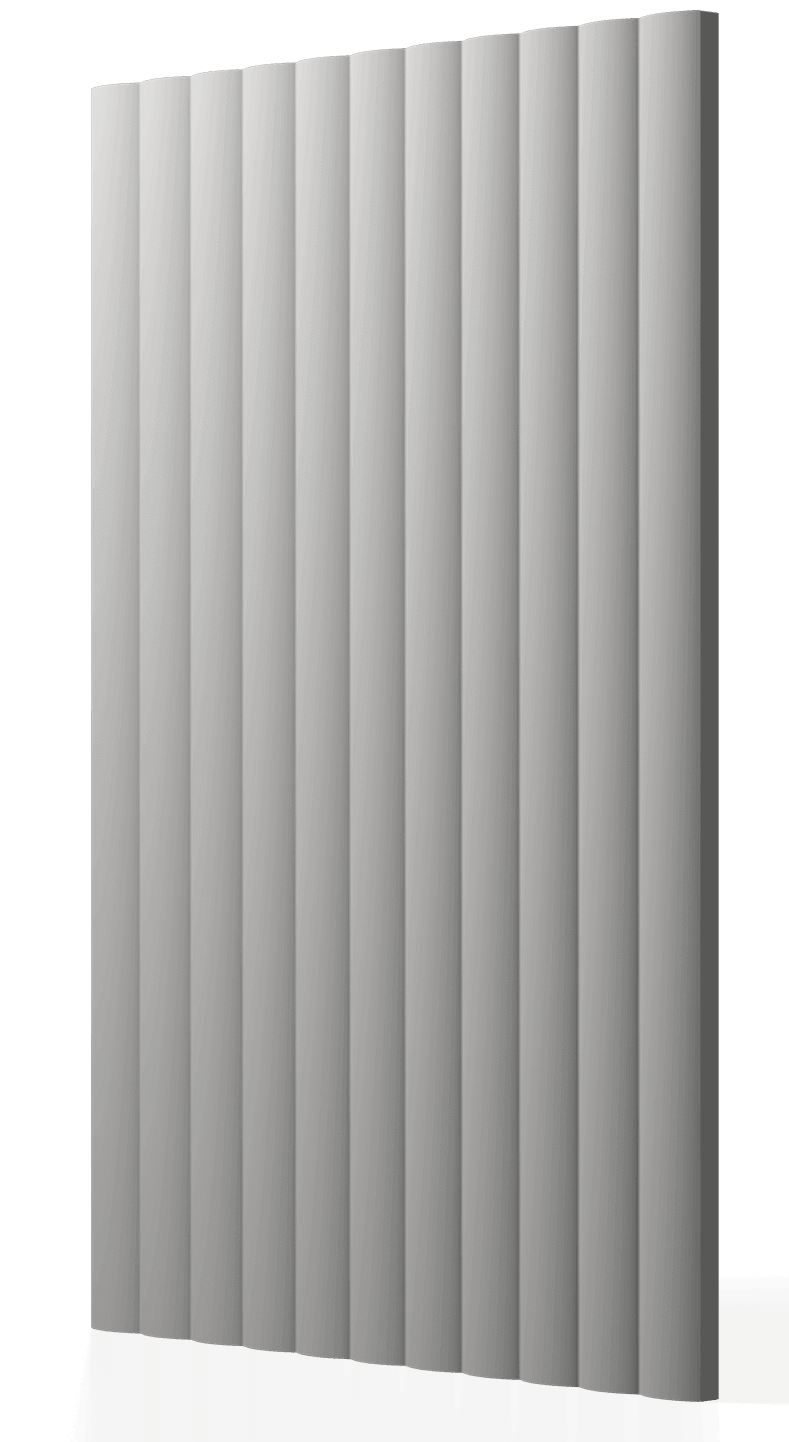

Delaware
A soft and wide bead, imitating the sand dunes on Delaware’s coast.
Customisable: Yes
Variable Width: Yes
Flexipanel option: Yes
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

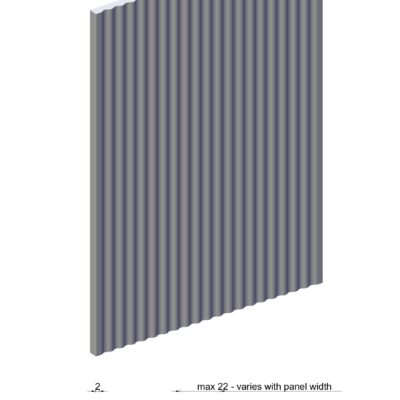

Hawaii
A playful profile, imitating the waves of Hawaii. Fancy a surf?
Customisable: Yes
Variable Width: Yes
Flexipanel option: Yes
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

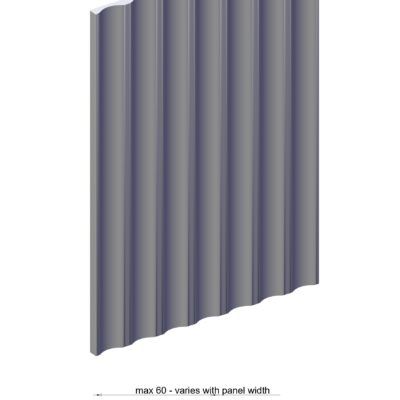

Kansas
This profile is best suited to wide, fixed panels. Not recommended for doors – Delaware or California are great alternatives!
Customisable: No
Variable Width: Yes
Flexipanel option: Yes but for large radii only
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm
Iowa
Imitating the long rows of cornfields in Iowa.
Customisable: Yes
Variable Width: Yes
Flexipanel option: Yes
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

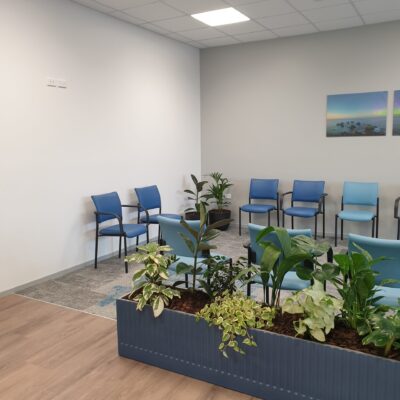

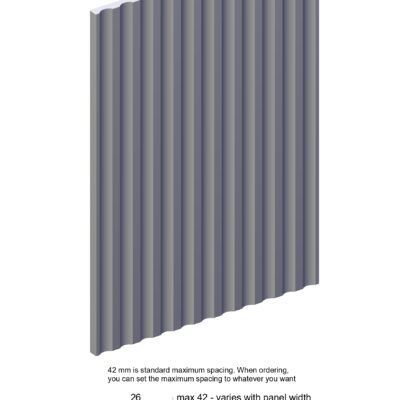

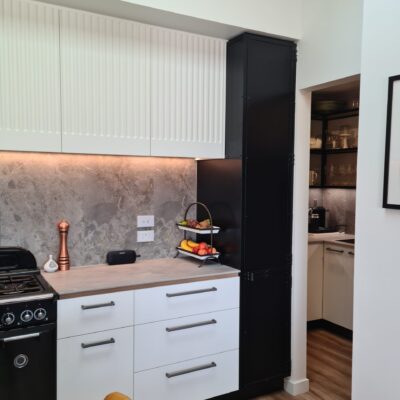

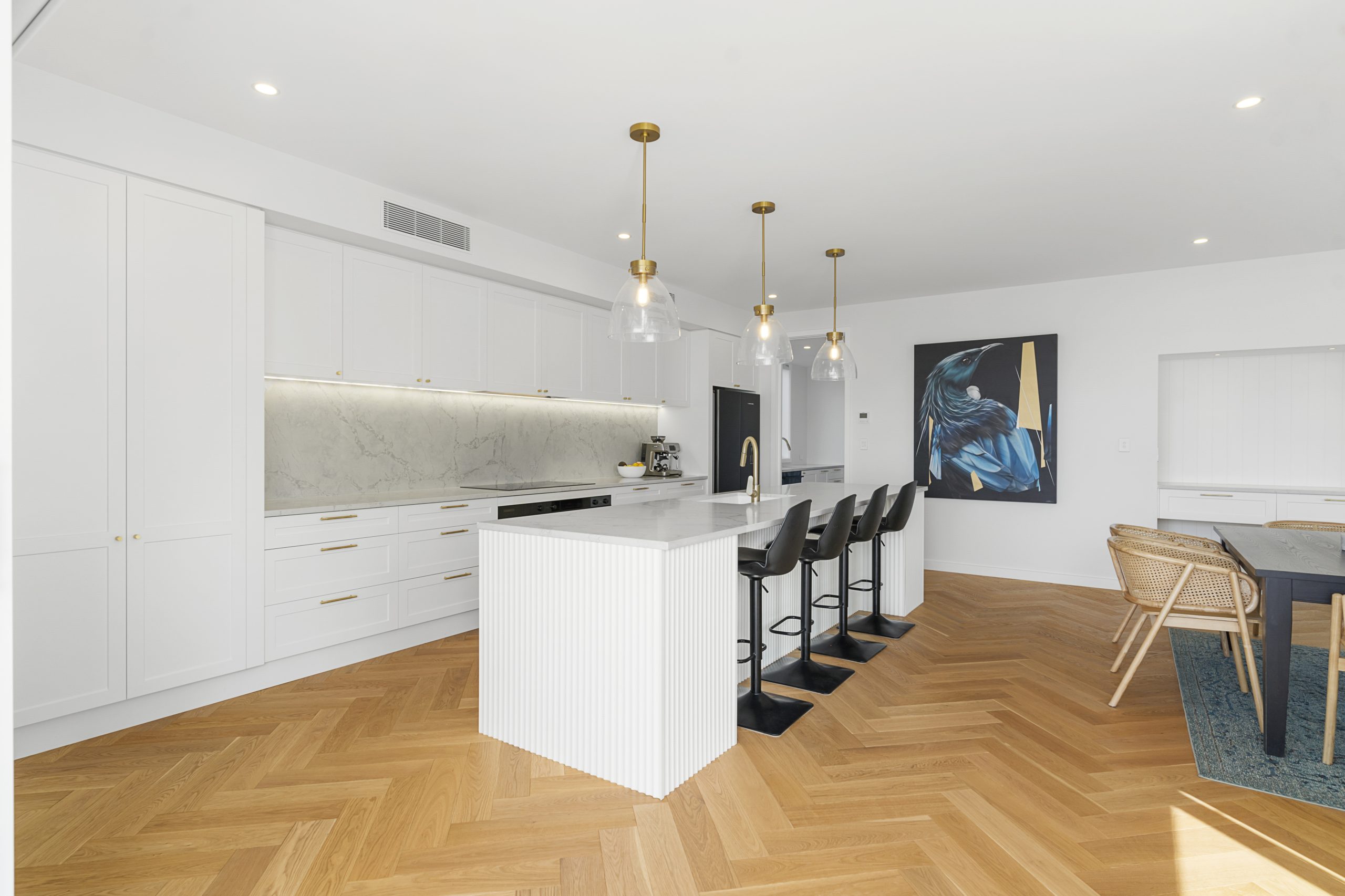

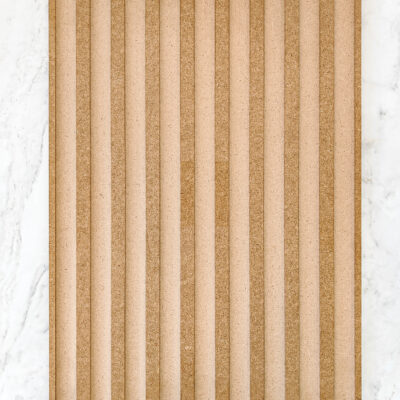

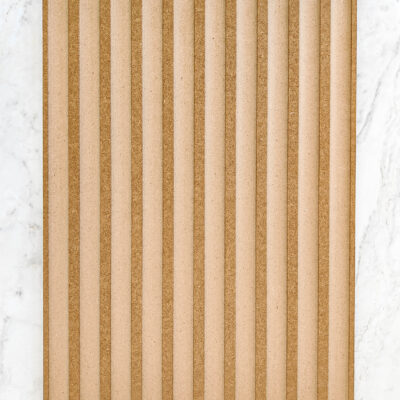

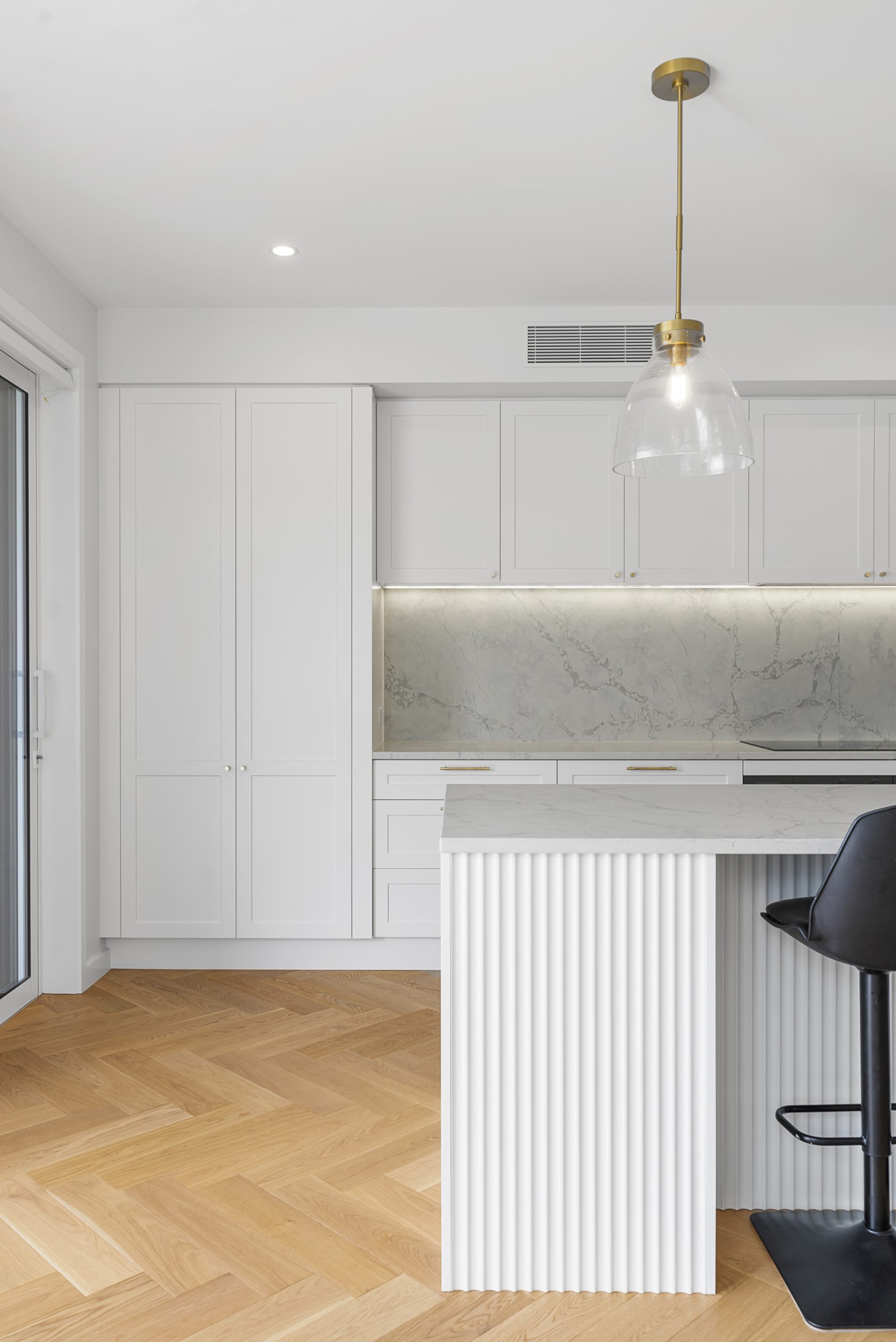

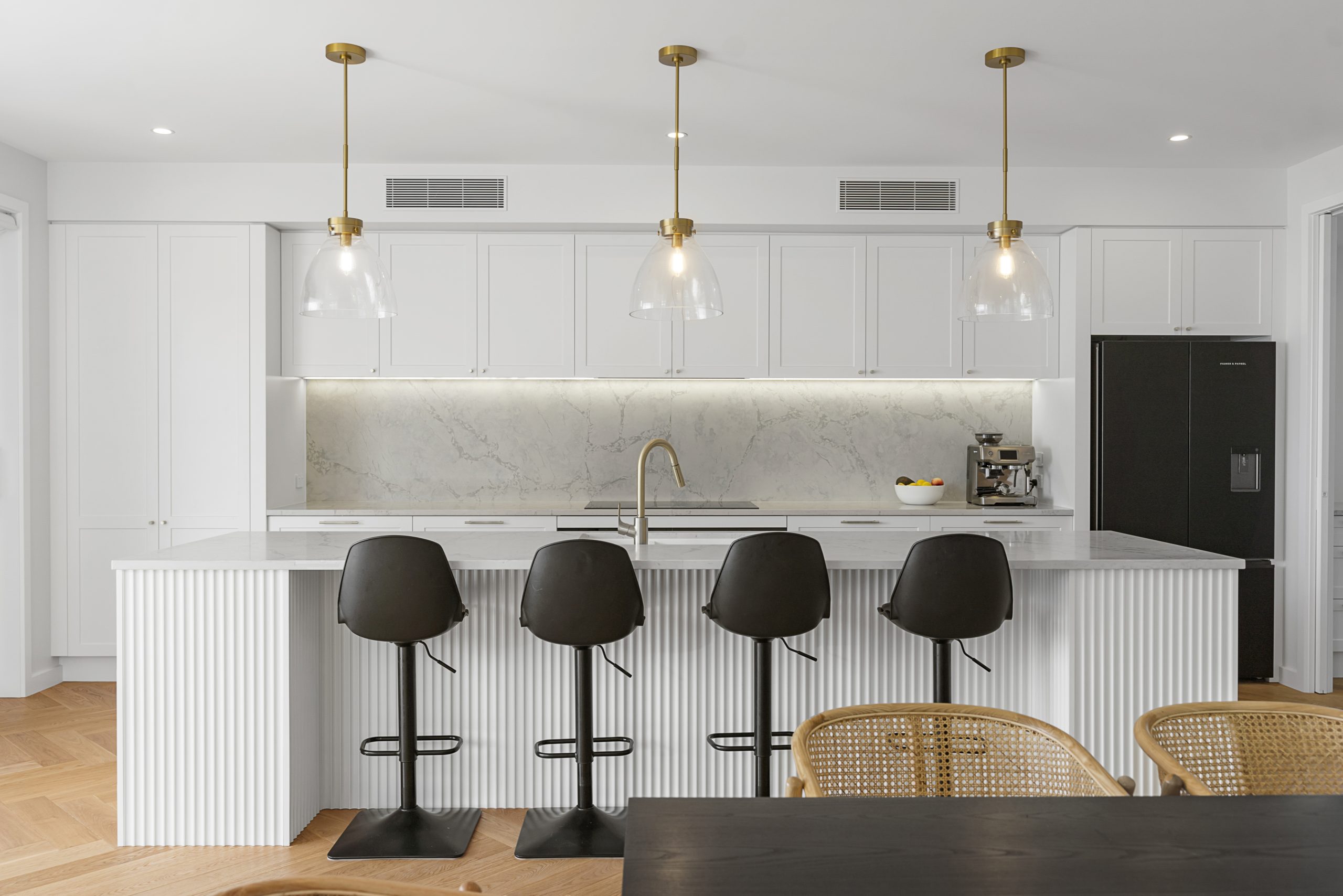

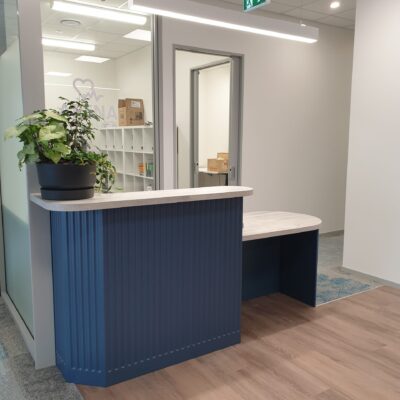

Alaska
Named in honour of the 12,000+ rivers flowing Alaska.
Customisable: Yes
Variable Width: Yes
Flexipanel option: Yes
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

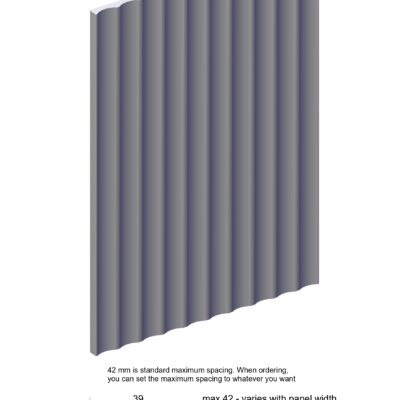

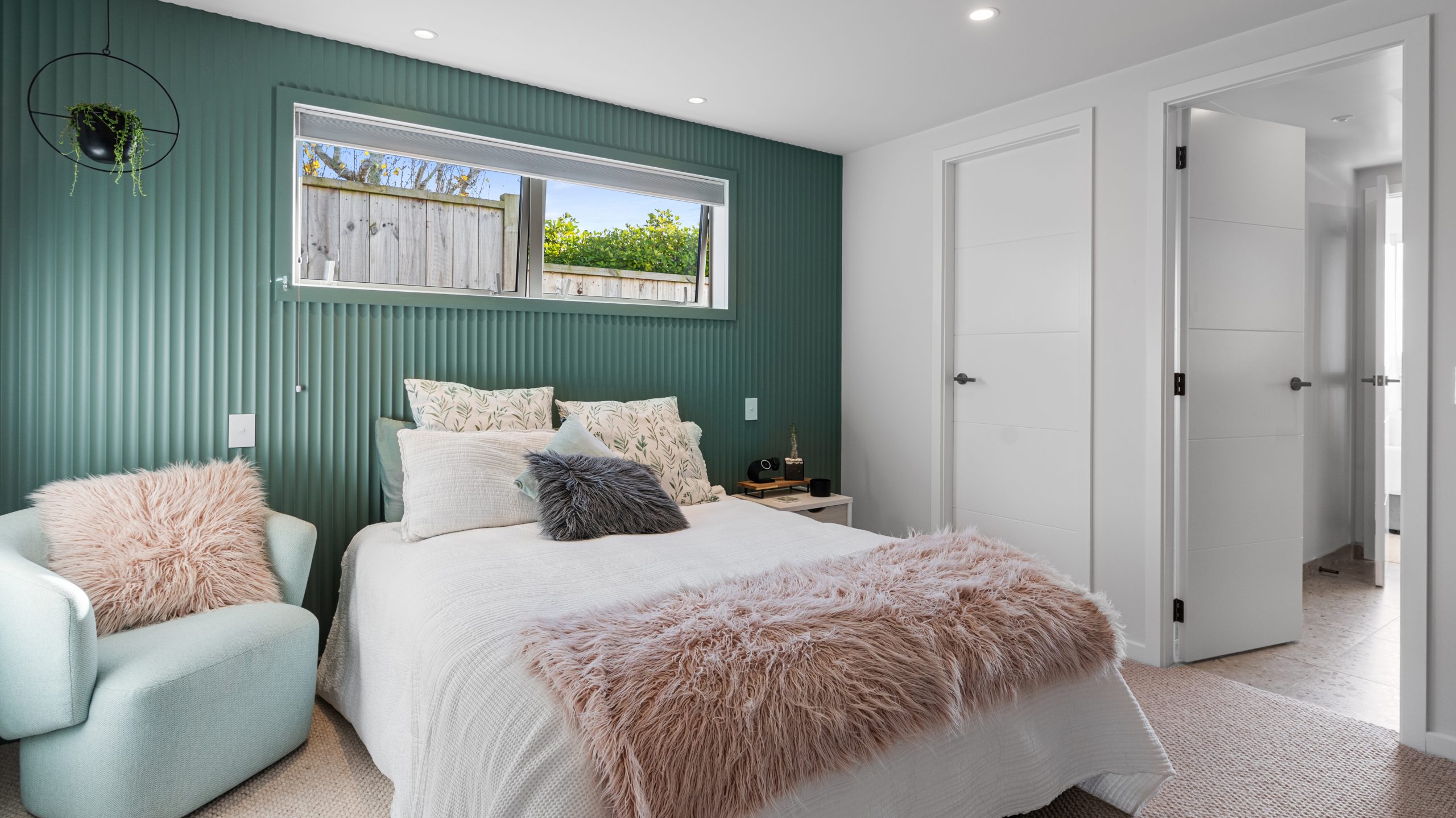

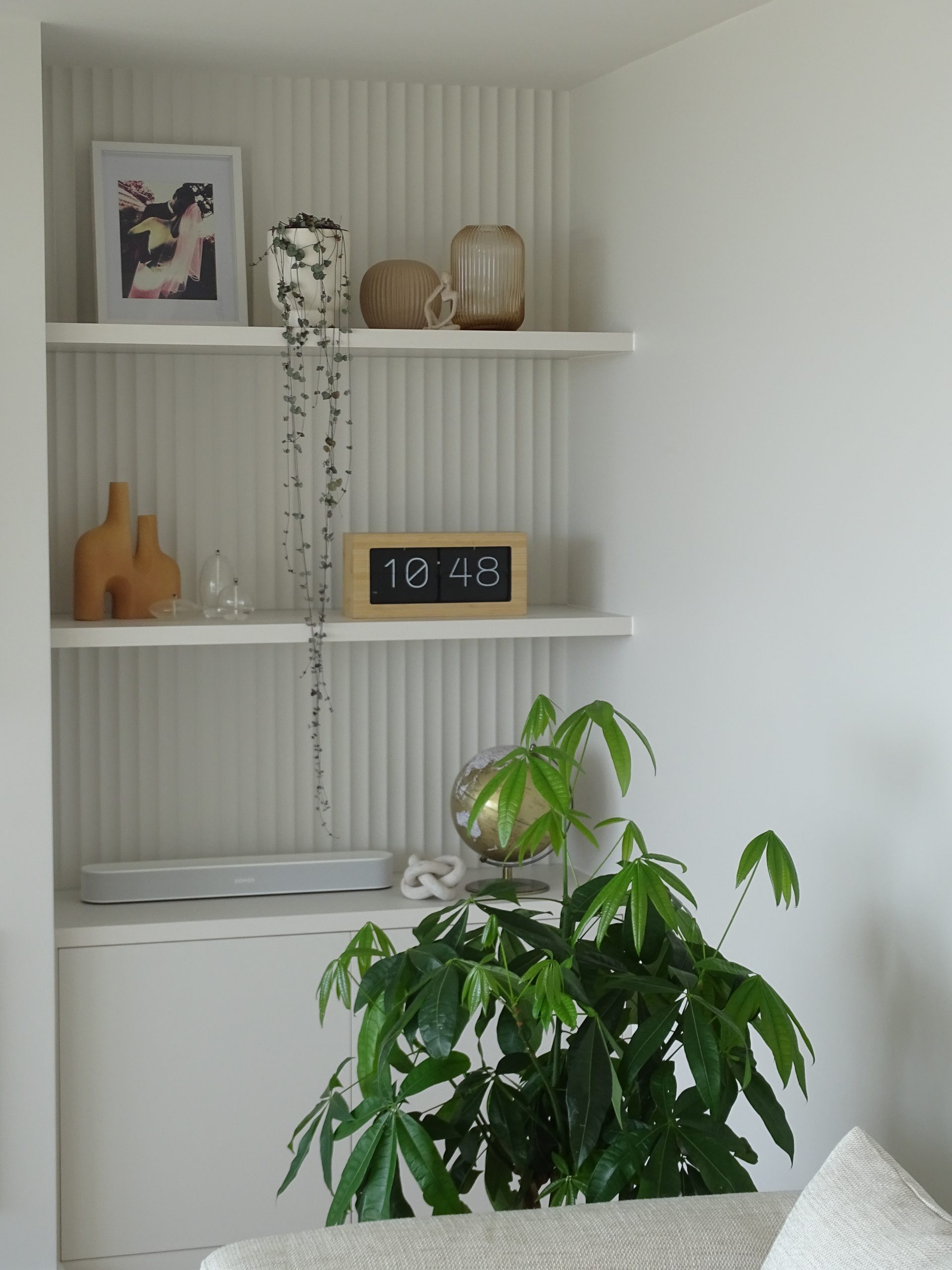

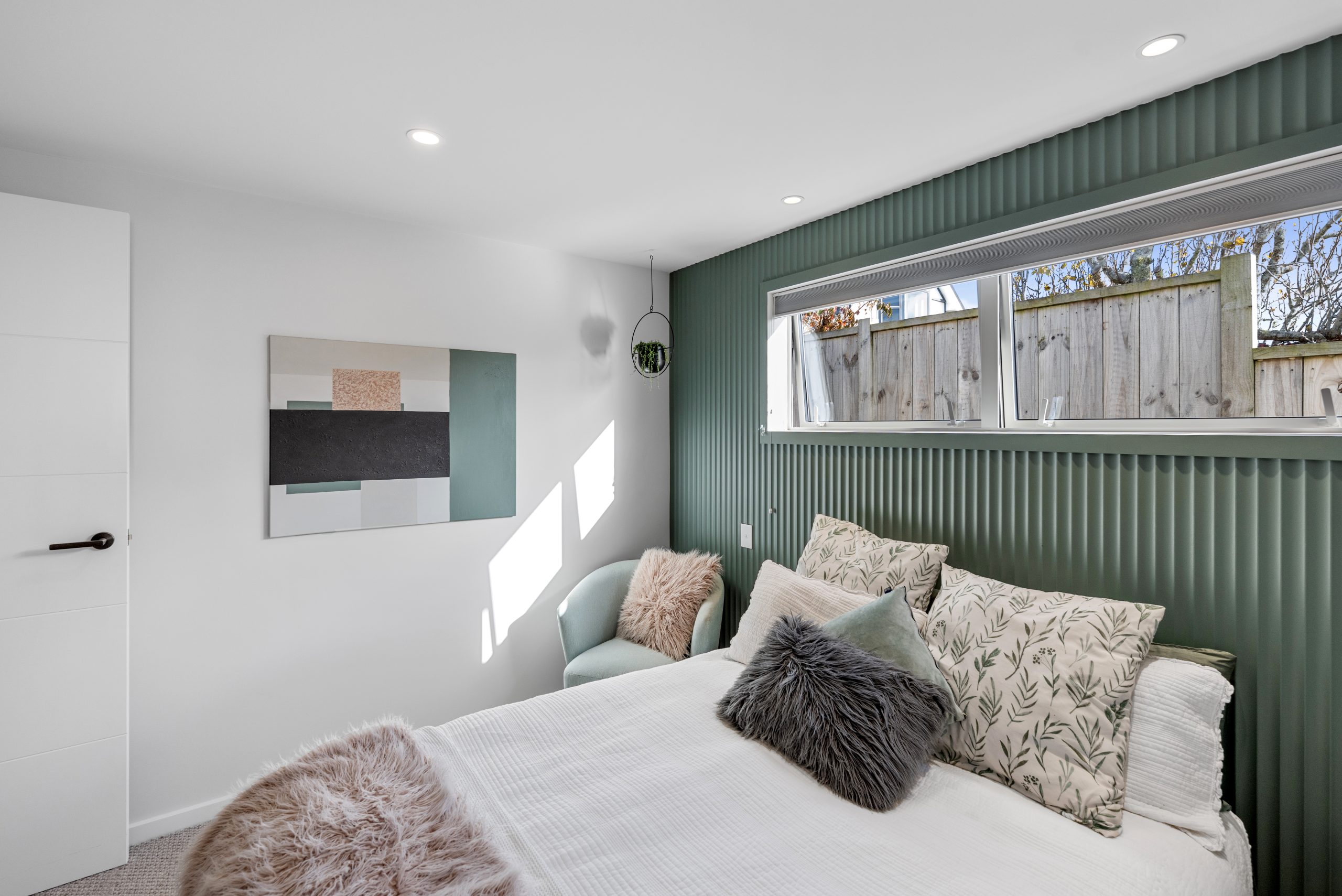

California
Reflecting the iconic silhouette of California’s Golden Gate Bridge.
Customisable: Yes
Variable Width: Yes
Flexipanel option: Yes
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

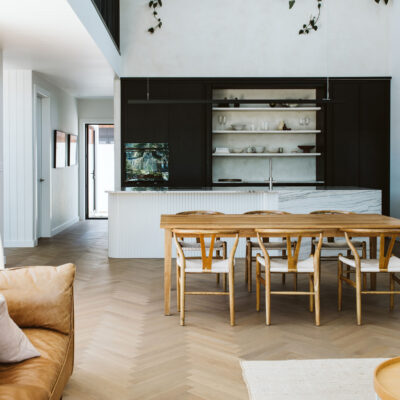

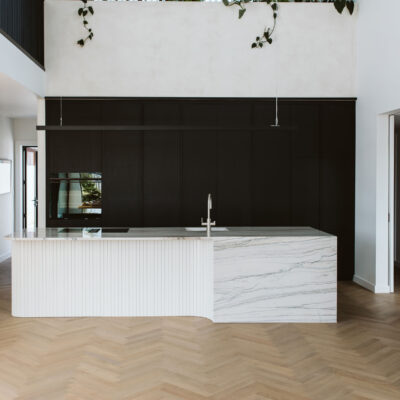

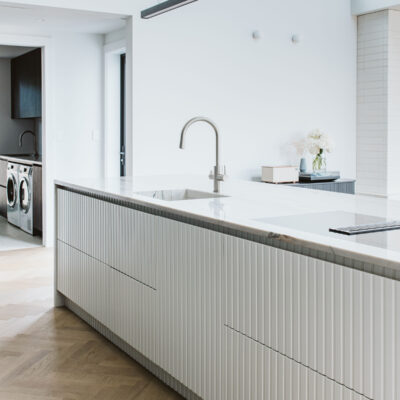

Illinois
Mimicking the distinctive shapes of skyscrapers in Chicago, Illinois.
Customisable: Yes
Variable Width: Yes
Flexipanel option: Yes
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm
Chicago
A modern and European alternative to a traditional v-groove.
Customisable: Yes
Variable Width: Yes
Flexipanel option: Yes
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

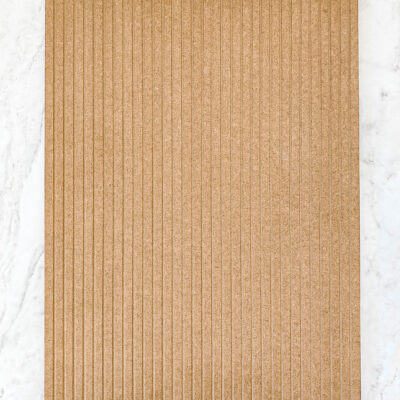

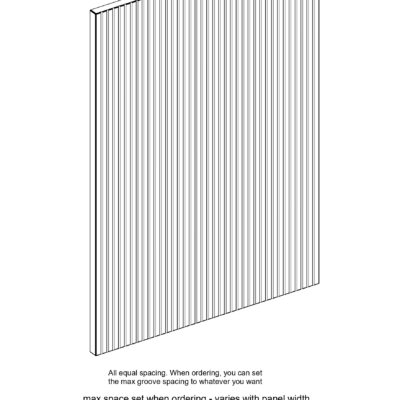

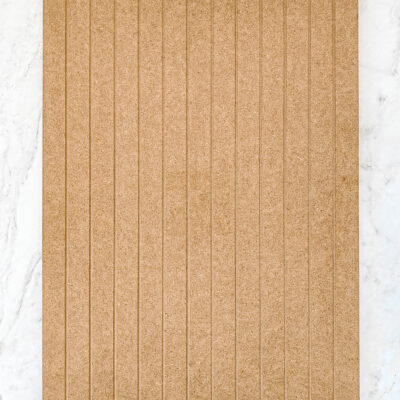

Tennessee
Customisable, narrow v-grooves with almost 10mm spacing. Classy yet classic.
Customisable: Yes
Variable Width: Yes
Flexipanel option: Yes
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

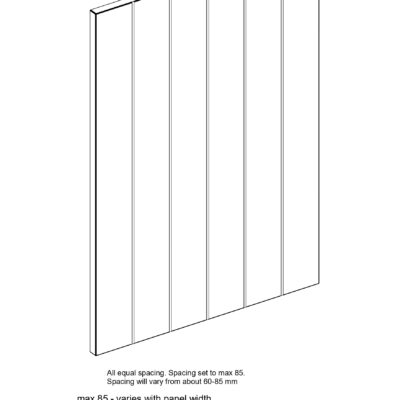

New York
If Times Square was a door profile. Featuring wide, equal-spacing v-grooves.
Customisable: Yes
Variable Width: Yes
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm

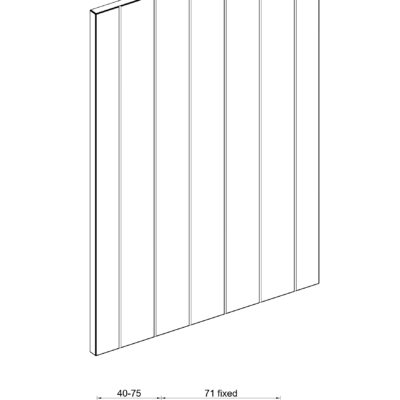

Montana
Traditional style v-grooves with a set width spacing.
Customisable: Yes
Variable Width: No (use New York)
Flexipanel option: No
Thicknesses: 18, 22, 24 & 30mm
Max size:
18mm: 3650mm x 1210mm
22mm: 2775mm x 1210mm
